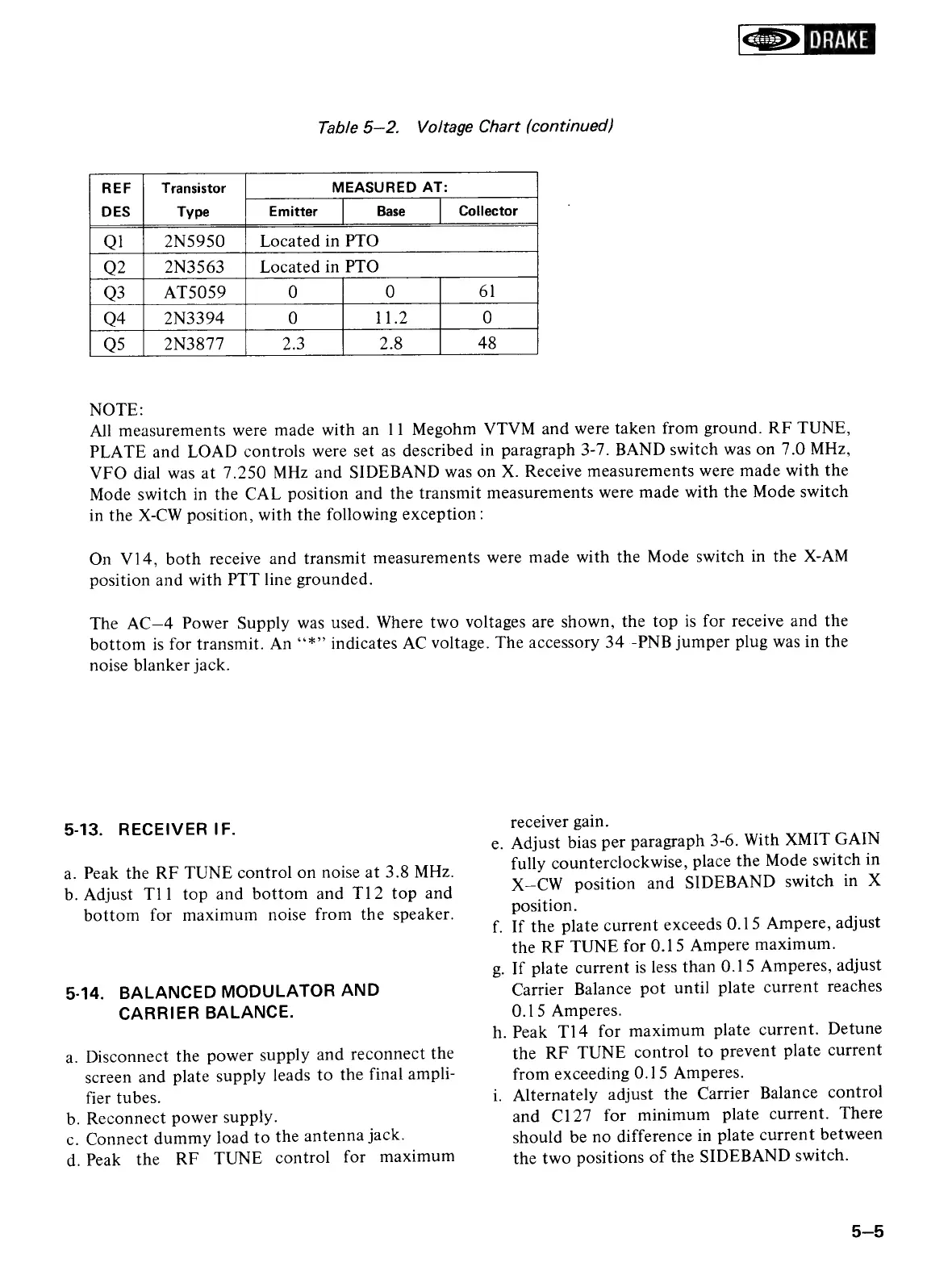

DRAKE
Table
5—2,.
Voltage
Chart
(continued)
Transistor
MEASURED
AT:
|
Type
Emitter
Collector
2N5950_|
Located
in
PTO
2N3563
Located
in
PTO
Q3_|
aATsos9
|
0 0
_|
Q4
|
2N3394
+
0
11.2
|
Q5_|
2N3877
2.3
2.8
NOTE:
All
measurements
were
made
with
an
11
Megohm
VTVM
and
were
taken
from
ground.
RF
TUNE,
PLATE
and
LOAD
controls
were
set
as
described
in
paragraph
3-7.
BAND
switch
was
on
7.0
MHz,
VEO
dial
was
at
7.250
MHz
and
SIDEBAND
was
on
X.
Receive
measurements
were
made
with
the
Mode
switch
in
the
CAL
position
and
the
transmit
measurements
were
made
with
the
Mode
switch
in
the
X-CW
position,
with
the
following
exception:
On
V14,
both
receive
and
transmit
measurements
were
made
with
the
Mode
switch
in
the
X-AM
position
and
with
PTT
line
grounded.
The
AC—4
Power
Supply
was
used.
Where
two
voltages
are
shown,
the
top
is
for
receive
and
the
bottom
is
for
transmit.
An
‘‘*”
indicates
AC
voltage.
The
accessory
34—PNB
jumper
plug
was
in
the
noise
blanker
jack.
5-13.
RECEIVER
IF.
a.
Peak
the
RF
TUNE
control
on
noise
at
3.8
MHz.
b.
Adjust
T1l
top
and
bottom
and
T12
top
and
bottom
for
maximum
noise
from
the
speaker.
5-14.
BALANCED
MODULATOR
AND
CARRIER
BALANCE.
a.
Disconnect
the
power
supply
and
reconnect
the
screen
and
plate
supply
leads
to
the
final
ampli-
fier
tubes.
b.
Reconnect
power
supply.
c.
Connect
dummy
load
to
the
antenna
jack.
d.
Peak
the
RF
TUNE
control
for
maximum
receiver
gain.
_
Adjust
bias
per
paragraph
3-6.
With
XMIT
GAIN
fully
counterclockwise,
place
the
Mode
switch
in
X—CW
position
and
SIDEBAND
switch
in
X
position.
.
If
the
plate
current
exceeds
0.15
Ampere,
adjust
the
RF
TUNE
for
0.15
Ampere
maximum.
_
If
plate
current
is
less
than
0.15
Amperes,
adjust
Carrier
Balance
pot
until
plate
current
reaches
0.15
Amperes.
Peak
T14
for
maximum
plate
current.
Detune
the
RF
TUNE
control
to
prevent
plate
current
from
exceeding
0.15
Amperes.
i.
Alternately
adjust
the
Carrier
Balance
control
and
C127
for
minimum
plate
current.
There
should
be
no
difference
in
plate
current
between
the
two
positions
of
the
SIDEBAND
switch.
