Draper 32329 - FITTING HANDLE BARS; FITTING THROTTLE AND CABLE

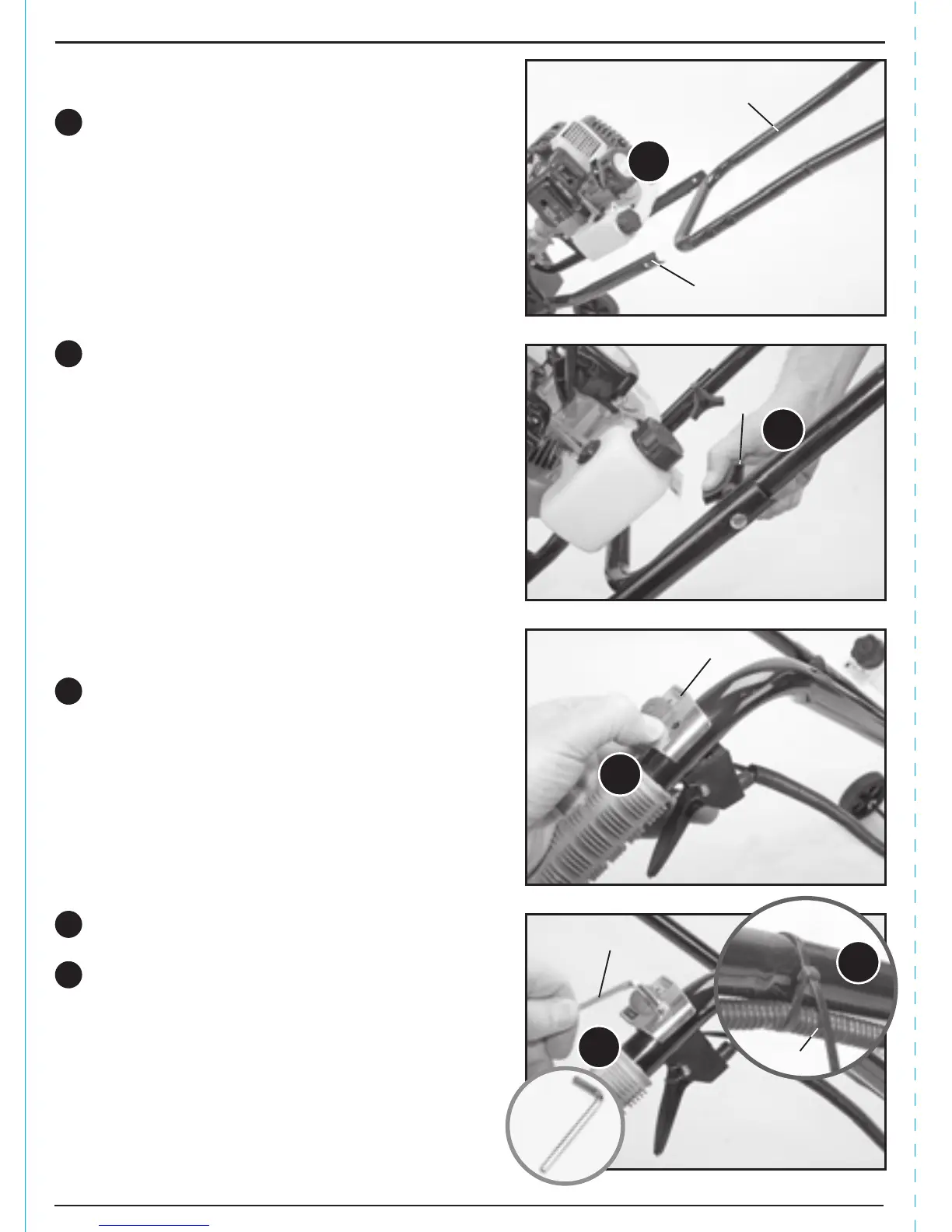

8.3 FITTING THE HANDLE BARS –
FIGS. 9 – 10
Slide the steering handle bars section into
the supporting struts of the engine section .
Secure together using the 2 handle bar fixing
bolts .
8.4 FITTING THE THROTTLE AND
CABLE ASSEMBLY – FIGS. 11 – 12
Position the switch unit of the throttle
cable/trigger assembly onto the handle bars
until the holes of both align.
1
1
2
When aligned, secure to the handle bars with
the hex bolts using the hex key supplied.
Secure the throttle cable to the handlebars
using electrical cable ties.
2
3
- 12 -
8. ASSEMBLING THE CULTIVATOR/TILLER





Fig.9
Fig.10
Fig.11
Fig.12
1
2
1
2
3


