Draper 32329 - MAINTENANCE AND TROUBLESHOOTING; CLEANING THE AIR FILTER

- 17 -
Regular maintenance tasks must be carried out at
specific intervals to retain the engine's performance.
10.1 CLEANING THE AIR FILTER –
FIGS. 26 – 29
A dirty, clogged air filter will restrict the air flow in to
the engine and will cause rough running. It will
increase fuel consumption and may result in starting
problems.
Attention: Stop the engine before removing the air
filter assembly.
Set the choke lever  to the closed position
to prevent any debris entering the carburettor
inlet.
Using the supplied hex key  to remove the
air filter cover .
Lift air filter cover  away free
Pull back the air filter element cover  to
expose the foam element.
Remove the foam air filter element .
Wash the element in warm soapy water to clean
it. Do not use solvents to clean it.
Allow the filter to dry 100% before refitting it on
to the engine.
– Refit element cover .
– Refit air filter cover .
– Use hex. key  to re-tighten in place.
Note: Replace the filter element if it appears worn
or damaged.

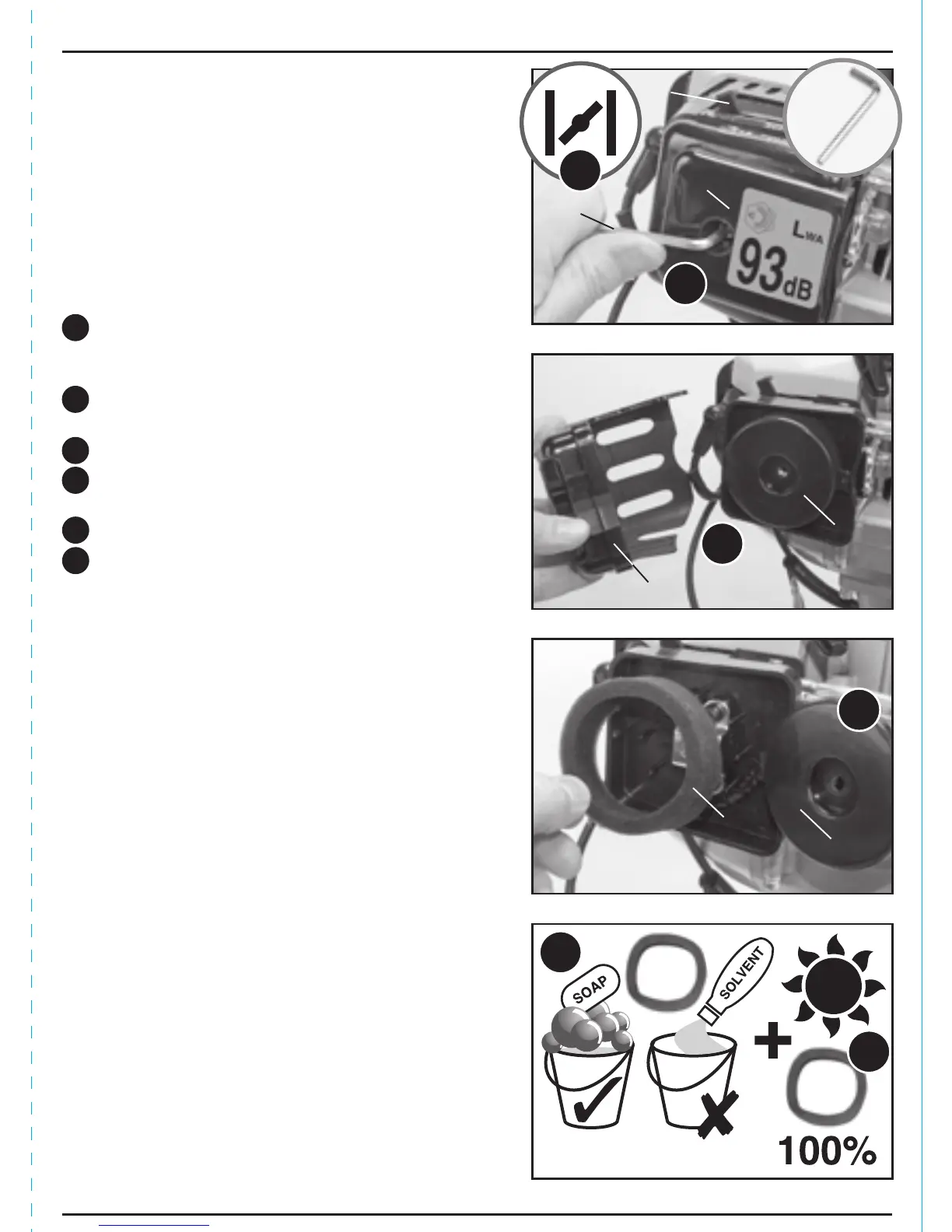

Fig.26
Fig.28
Fig.27






2
3
4
Fig.29
1
1
2
3
4
5
6
5
6

10. MAINTENANCE AND TROUBLESHOOTING

