Draper 34023 - Operation and Use; Gear Selection

– 14 –
9. OPERATION & USE
Attention: Before using this machine each time,
the following checks must be carried out:
– Make sure all tools required for maintenance
and cutter change over have been removed.
– Remove all obstacles from around the
machine.
– Make sure the headstock angle is correctly
adjusted and locked tight.
– Check the chuck and spindle turn freely (with
the power disconnected).
– Make sure the appropriate gear ratio is
selected.
– Turn on the machine to check the direction of
spindle rotation is clockwise.
– Adjust the longitudinal feed, cross feed and
headstock feed to check they move freely.
9.1 GEAR SELECTION – FIG.3
Warning! This machine must be operated by
trained persons only.
Select the appropriate gear ratio, depending on the
intended operation, the material type and the
material size.
Attention: Do not attempt to change gear while
the machine is running.
– With the motor stationary move the gear lever
(E) to the left to select low gear (0-1,100min
-1
)
or the right to select high gear (0-2,500min
-1
).

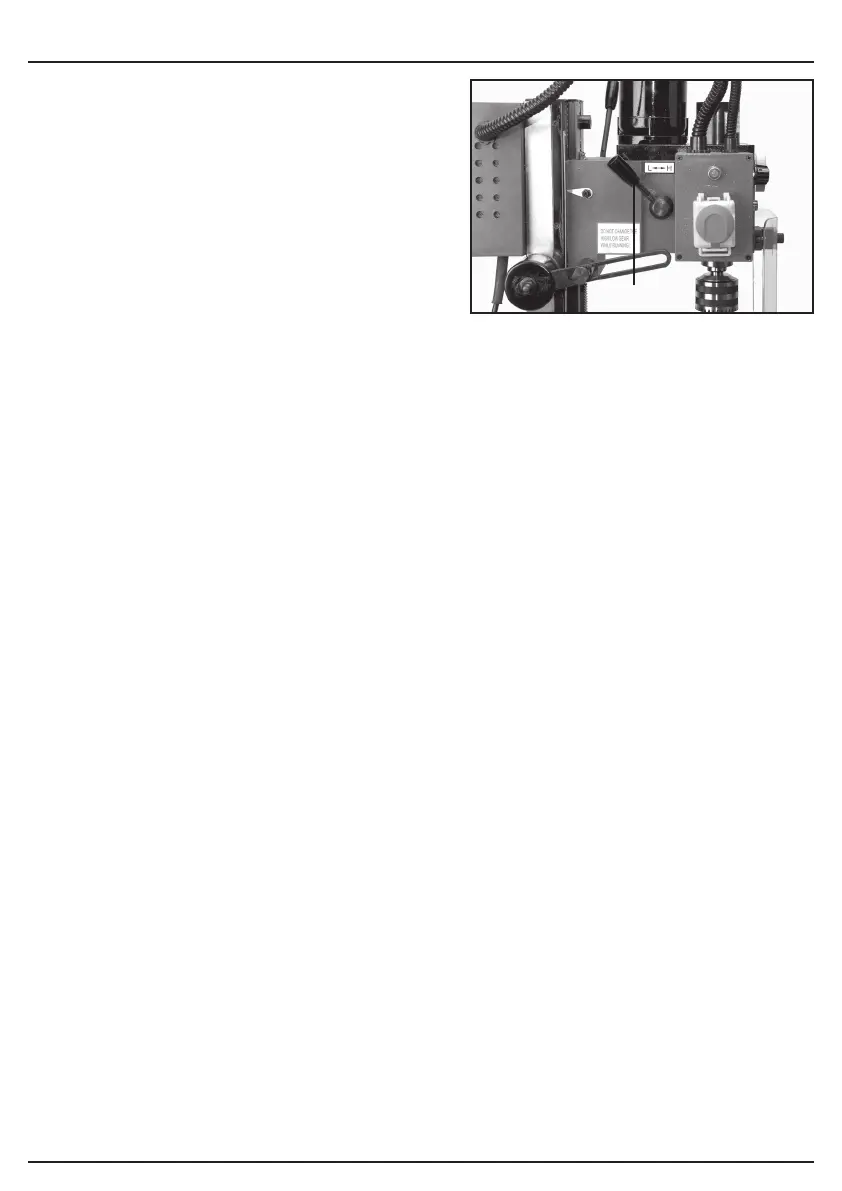

FIG.3
(E)
