9. OPERATION & USE

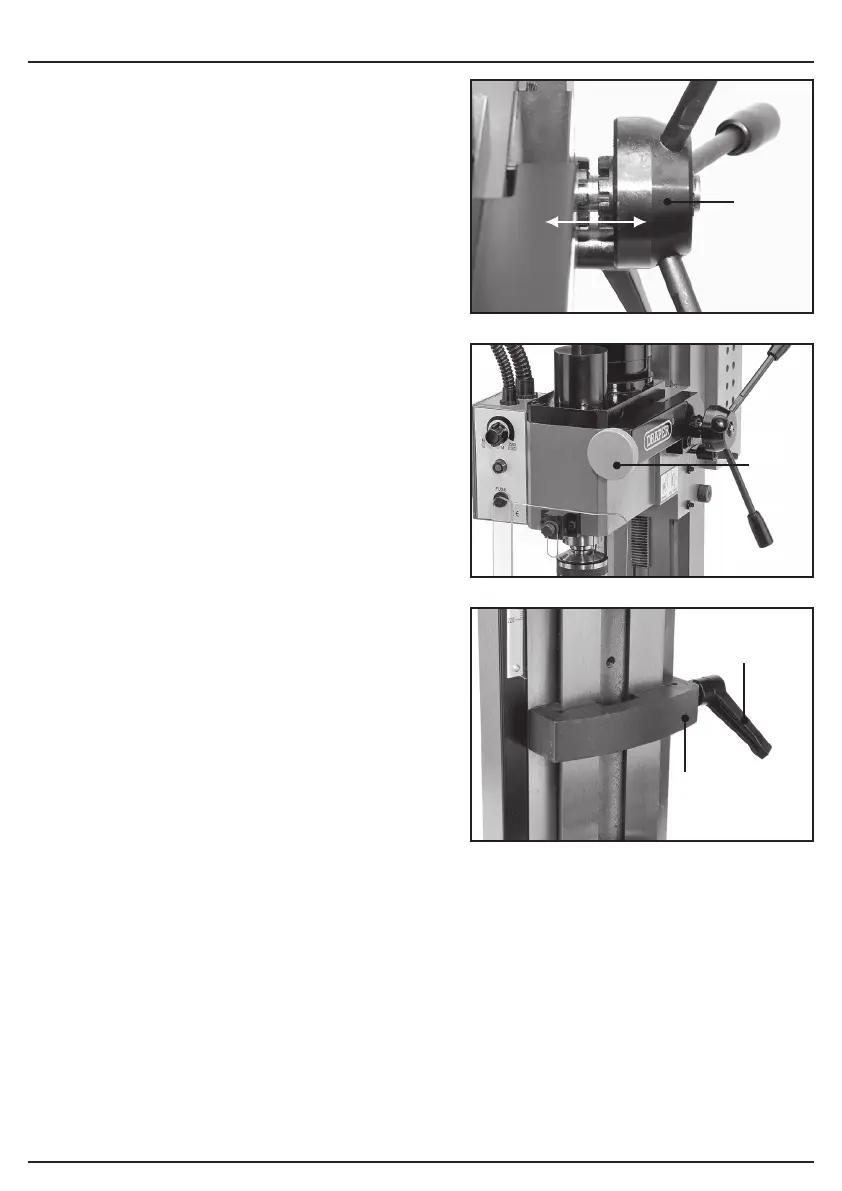

9.4 PLUNGE AND PLUNGE STOP –
FIGS.6-8
The manual feed action on this machine has two
settings:
1. Micro adjustment for milling operations.
2. Unrestricted which allows quicker feeding over a
larger distance. This is for drilling and setting up for
milling.
– For unrestricted feed movement, pull the hub
(M) of the feed handles out, away from the
machine body.
– For micro adjustment - make sure the teeth
mate correctly, then push the hub (M) inward.
– To adjust the feed while the machine is setup
like this, simply rotate dial (N).
If necessary it is possible to limit the depth of the
feed.
– Adjust the block (O) to the desired height and
lock in place with the handle (P).
FIG.6
FIG.7
FIG.8
(M)
(N)
(P)
(O)
