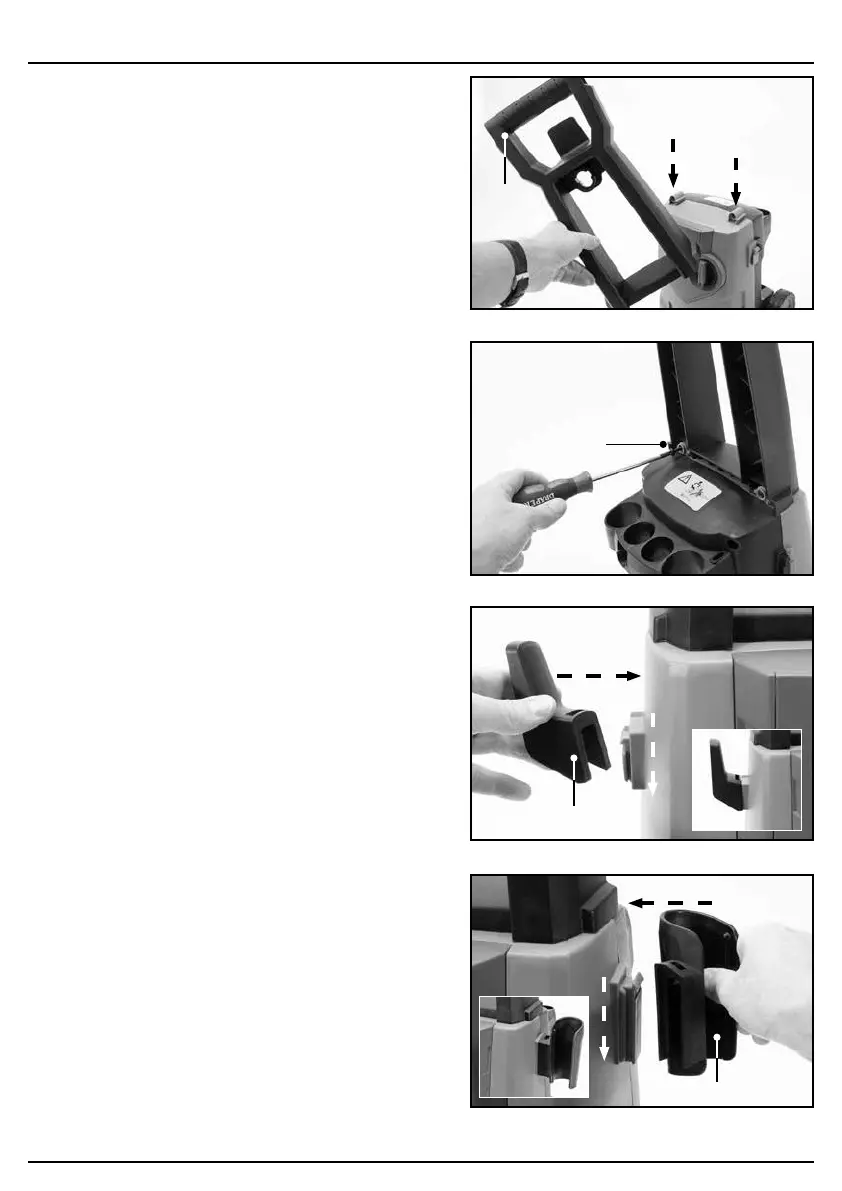

8. ASSEMBLY
8.1 FITTING THE TRANSPORT
HANDLE SECTION – FIGS.1 – 2
− Slide the transport handle section (3)over the
mounting points (A)at the top of the main body
of the pressure washer.
− From the back of the pressure washer, locate
the 2 supplied screws (21)with the holes in the
mounting points and screw in to secure the
handle section in place
8.2 FITTING THE LANCE HOLDER
AND CABLE HOOK – FIGS.3 – 4
Attach the lance holder (4) and cable hook (11) at
the location points, then slide down over the fittings
to secure.
1
2
FIG.
FIG.
3
4
FIG.
FIG.
(11)
(3)
Stock No.98676 shown
Stock No.98676 shown
(21)
(A)
(A)
(4)
