– 14 –
8. ASSEMBLY

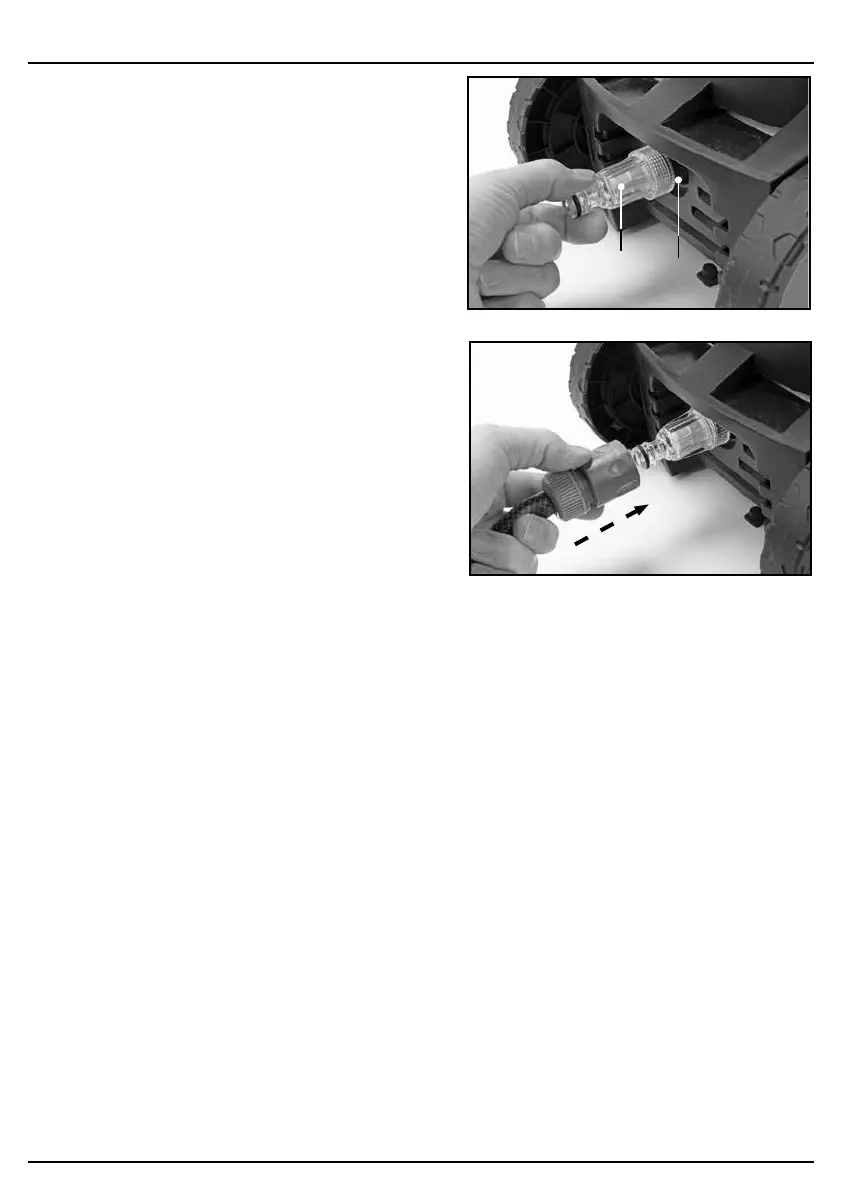

8.7 CONNECTING THE WATER
SUPPLY – FIGS.13 – 14
− Screw the supplied water inlet adaptor (6) to
the water inlet connection (6.1) taking care not
to cross the threads.
− To connect the pressure washer to the water
supply, a push fit hose connector will be
required (FIG.14). Ensure the connector is
correctly fitted to the hose and that a ‘click’ is
heard when attaching to the machine.
Note: The supply must be between 1.5bar and
6.0bar and 7 litres/min.
Note: Max. water temp: 40°C.
Note: Always observe local bye-laws and
regulations.
13
14
FIG.
FIG.
(6.1)
(6)
