Draper 98676 - Attaching the Lance; Attaching the Nozzles to the Lance

– 12 –

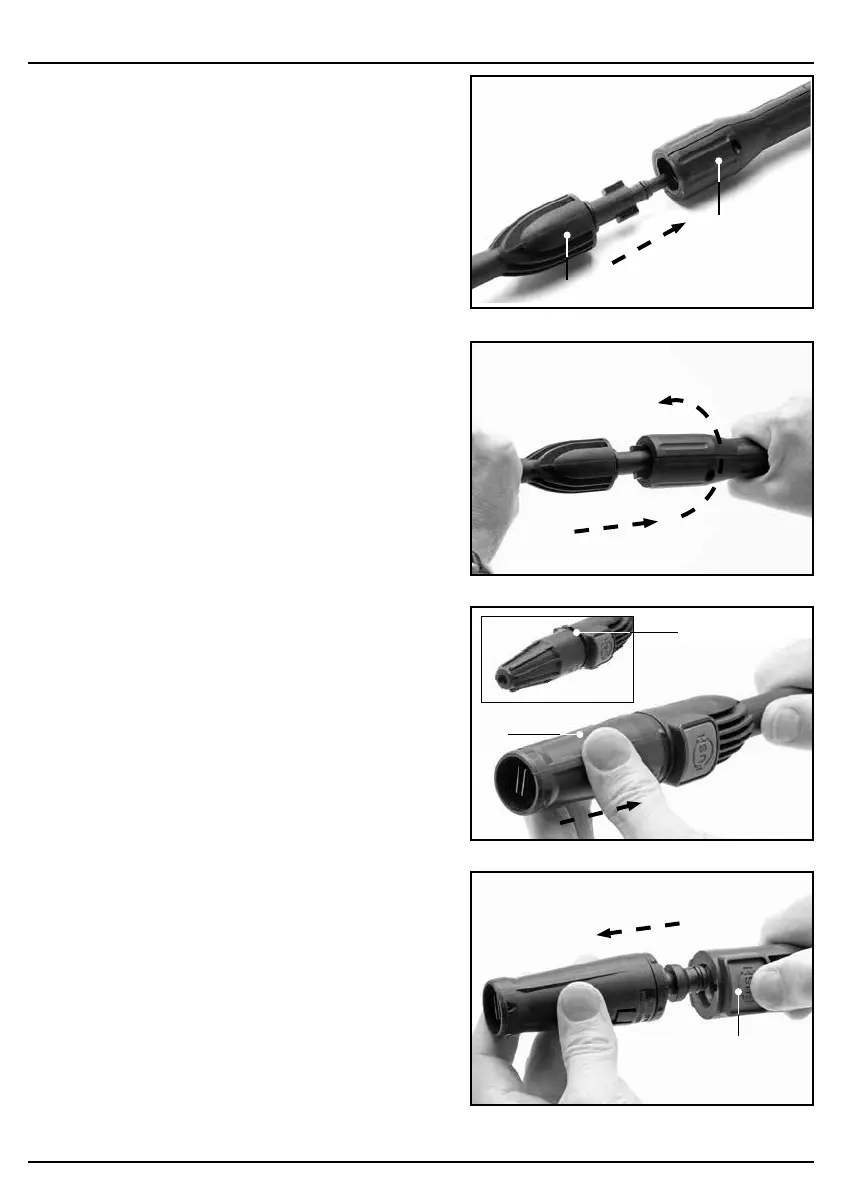

8. ASSEMBLY
8.3 ATTACHING THE LANCE –
FIGS.5 – 6
− Connect the lance (9) to the trigger assembly
section (12) by pushing in the bayonet fitting
and turning anti-clockwise 45° to lock in place.
8.4 ATTACHING THE NOZZLES TO
THE LANCE – FIGS.7 – 8
− To connect either the spray nozzle (7) or turbo
nozzle (19) to the lance (9), push-fit the nozzle
into the end of the lance until it clicks into place.
To remove, press the release button (9.1) on
the lance to disconnect.
5
6
FIG.
FIG.
7
8
FIG.
FIG.
(12)
(9)
(9.1)
(19)
(7)
