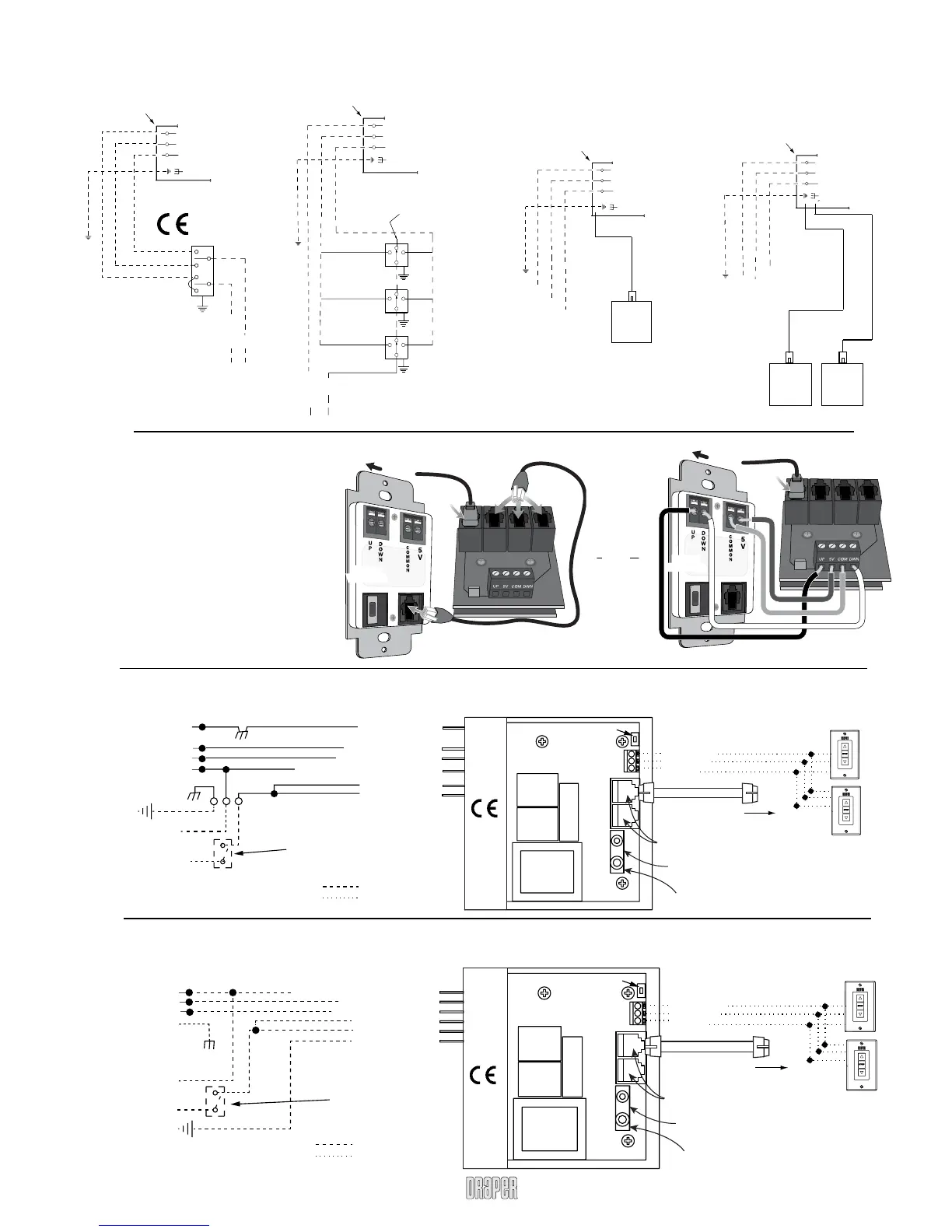

Wiring Diagrams
Please Note: Do not
wire motors in parallel.
Neutral
L1
220v,
50 Hz.
Dashed wiring
by installer
Control
switch
Single Station Control
CE Approved
Junction box at
left end of screen
Internal Screen Wiring
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Dashed wiring
by installer
Neutral
Hot
Multiple Station Control
Not CE Approved
Cap off with wire
nut & tape
Red
Red
Red
Blue
Blue
Blue
Black
Black
220v, 50 Hz.
Black
Junction box at
left end of screen
Internal Screen Wiring
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Green/Yellow (Motor Ground)
Green/Yellow (Motor Ground)
220V Envoy by Draper
Page 3 of 3
.draperinc.com (765) 987-7999
220V Motor and Quiet Motor
with Built-in Low Voltage Controller
Wall Switches,
RF or IR
Receivers,
or integrated
control systems
Data
Cables
220v,
50 Hz.
Dashed wiring
by installer
CE Approved
unction box at
Internal Screen Wiring
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Not CE Approved
220v, 50 Hz.
Junction box at
left end of screen
Internal Screen Wir
Blue-220v (Common)
Brown-220v (Down)
Black-220v (Up)
Green (Motor Ground)
Green (Motor Ground)
Wall Switch,
RF or IR
Receiver,
or integrated
control system
Data Cable
Receiver
Button
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
Wall Switch
Electrically Straight
Data Cable to more
LVC-IV modules*
*A maximum of six (6)
LVC-IV modules can be
linked together.
FUSE - 3.15 AMP
250 VAC 5x20mm
IR Eye Input
Low Voltage
Tr igger
3-28 VDC
RS232/485
Inputs/Outputs
Built In LVC-IV - Single or Multiple
Projection Screen Wiring Diagram
Dashed wiring by electrician
Low voltage wiring by others
To
230 VAC
Line
Green/Yellow (Ground)
Blue (Common)
Brown (Down)
Black (Up)
INTERNAL SCREEN WIRING
Green/Yellow
(Motor Ground)
L1
GND
Location of key
operated on-off
switch if furnished.
Black-to
230V
AC-Hot
Red-to screen (directional)
Brown-to screen (directional)
Yellow-to
230V
AC-Hot
White -Common to screen & 230V AC Neutral
N
Dashed wiring by electrician
Low voltage wiring by others
Receiver
Button
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
W
To
230 VAC
Line
White-Common to screen & 230V AC Neutral
Red-to screen (directional)
Brown-to screen (directional)
Ye llow-to 230V AC-Hot
Black-to 230V AC-Hot
Green/Yellow (Ground)
Blue (Common)
Black (Up)
Brown (Down)
Green/Yellow
(Motor Ground)
Electrically Straight
Data Cable to more
LVC-IV modules*
*A maximum of six (6)
LVC-IV modules can be
linked together.
N
L1
GND
Location of key
operated 0n-off
switch if furnished.
FUSE - 3.15 AMP
250 VAC 5x20mm
IR Eye Input
Low Voltage
Tr igger
3-28 VDC
RS232/485
Inputs/Outputs
External LVC-IV - Single or Multiple
Projection Screen Wiring Diagram
INTERNAL SCREEN WIRING
Back of
Wall Switch
Back of
Wall Switch
Please Note: 5V DC must
be connected to set limits
using the wall switch.
Dry Contacts
Back of
Wall Switch
Back of
Wall Switch
MOTOR
DATA CABLE
Please Note: This Splitter/Jack
is located inside the junction
box of your Access screen.
Data Cables to
switches or
to additional motors
T
O
M
O
T
O
R
Data Cable Connection
MOTOR
DATA CABLE
T
O
M
O
T
O
R
Back of
Wall Switch
Back of
Wall Switch
Please Note: 5V DC must
be connected to set limits
using the wall switch.
Dry Contacts
Back of
Wall Switch
Back of
Wall Switch
MOTOR
DATA CABLE
OR
Please Note: This Splitter/Jack
is located inside the junction
box of your Access screen.
Data Cables to
switches or
to additional motors
T
O
M
O
T
O
R
Data Cable Connection
MOTOR
DATA CABLE
T
O
M
O
T
O
R
Back of
Wall Switch
Back of
Wall Switch
Please Note: 5V DC must
be connected to set limits
using the wall switch.
Dry Contacts
Back of
Wall Switch
Back of
Wall Switch
MOTOR
DATA CABLE
OR
Please Note: This Splitter/Jack
is located inside the junction
box of your Access screen.
Data Cables to
switches or
to additional motors
T
O
M
O
T
O
R
Data Cable Connection
MOTOR
DATA CABLE
T
O
M
O
T
O
R
Connecting Switch to Motor
with Internal Low Voltage Controller
