- 7 -
ASSEMBLY

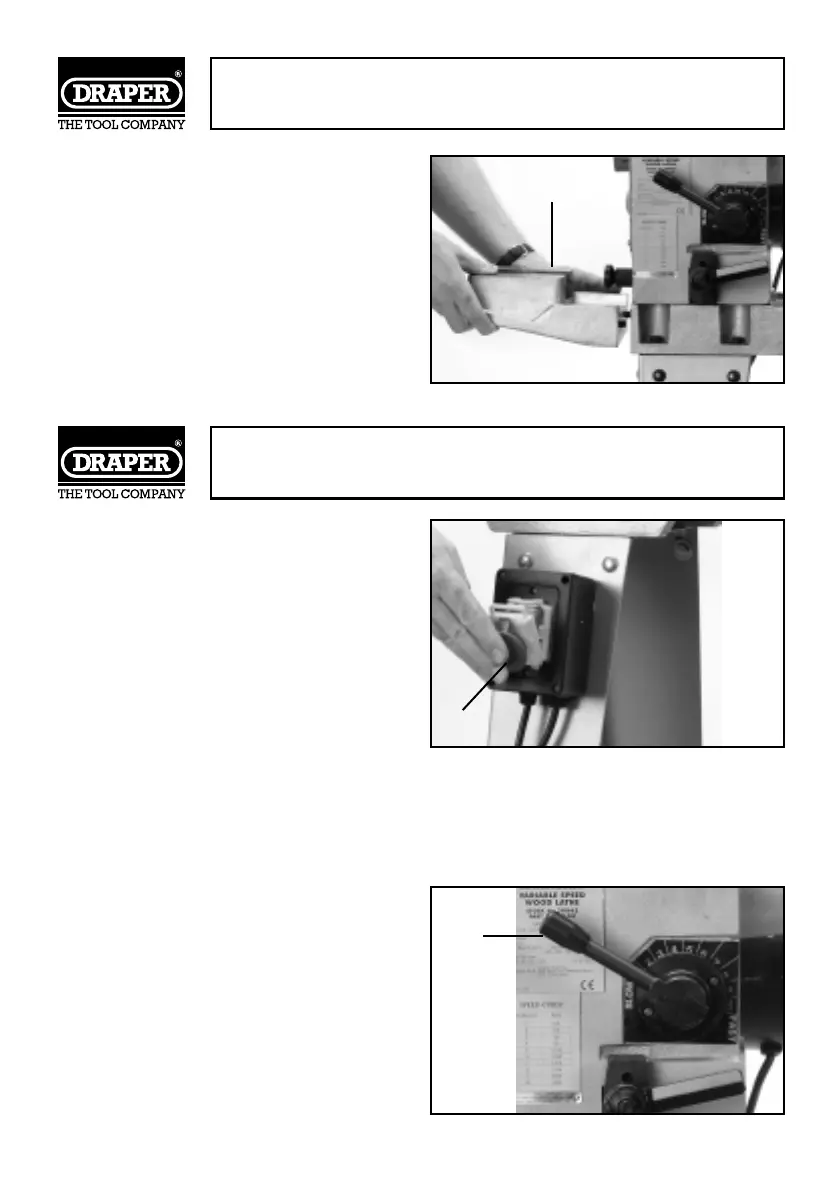

Fitting Bed Extension (WTL90 only)
Using the fixings supplied, bolt the
extension ✴✌ to the headstock end of
the bed.
OPERATION & USE
NO-VOLT ON/OFF SWITCH
Note: The WTL95 is fitted with an
additional emergency shut off cover
.
In the event of an emergency, closing the
cover firmly will cause the stop button to
be triggered, thus stopping the machine. To
re-open the cover, the red button requires
sliding which in turn will release the cover
and stop button.
In the event of a power failure the machine
will have to be manually restarted.
To switch the machine on, lift up the sprung
cover and push the button marked
✲✌ .
To switch the machine off, lift up the sprung
cover and push the button marked
✔✌ .
To switch the machine off in an emergency
strike the cover ✵✌ firmly which will
trigger the
✔✌ button. Fig.9.
CHANGING SPEED
The machine has to be running for the
speed change to move.
With the machine running, pull the lever
✶✌ away from the headstock then move it
around to the desired speed.The handle
indicates the speed. For example, Fig.10 is
set on speed 1. The Lathe should be in
speed 1 (the slowest) before turning off to
aid ease of start up. Fig.10.
Fig.8.
Fig.9.
Fig.10.
✴✌
✶✌
✵✌
