MX30 OPERATORS’ MANUAL 5

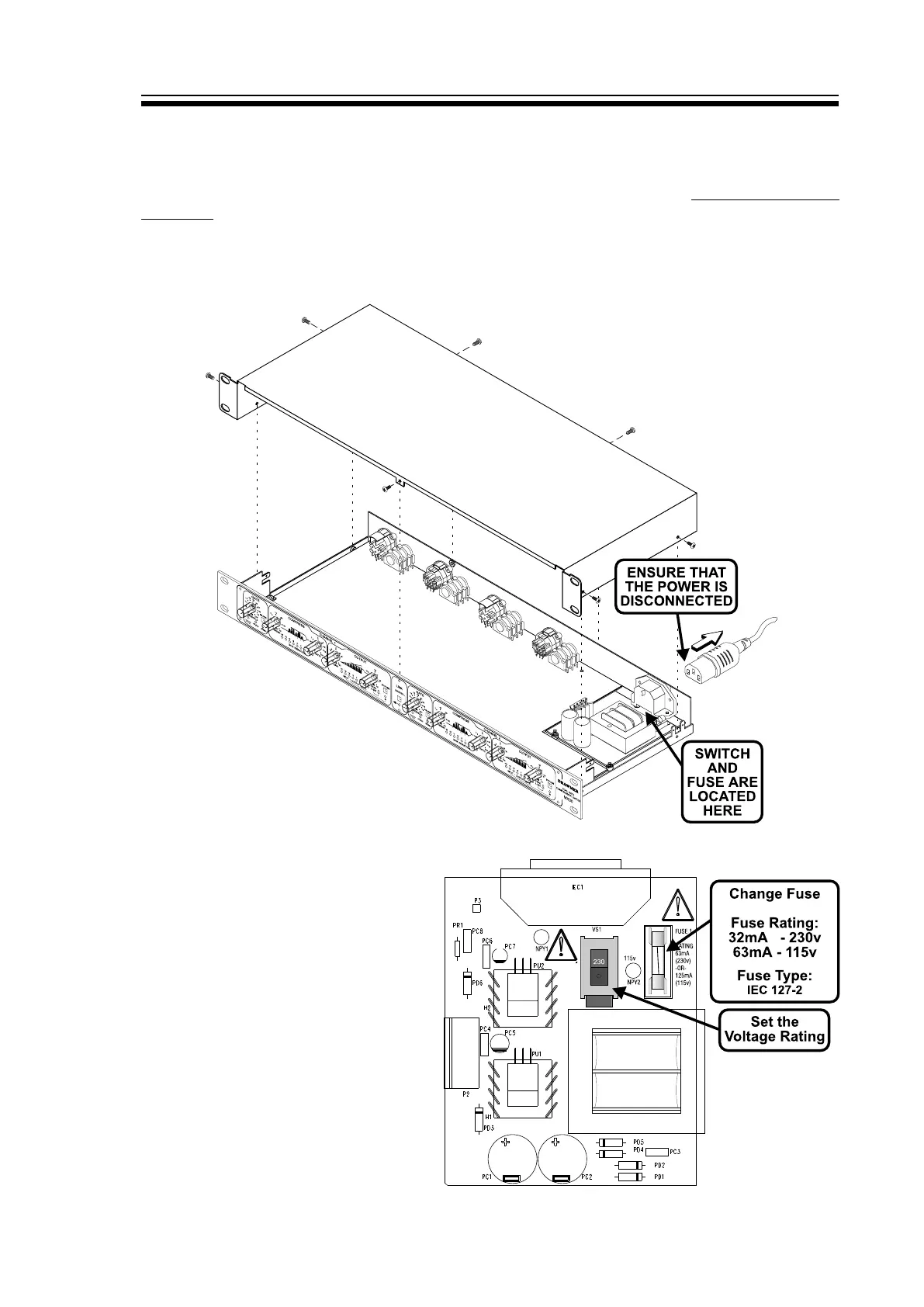

Accessing the internal power switch and fuse
POWER CONNECTION
If, for some reason, the unit is to be operated at a mains input voltage which is different
to that as supplied, the following procedure must be carried out by a qualified technical
engineer.
1: Disconnect the unit from the mains.
2: Using a number 1 size pozidrive screwdriver, remove the seven
self-tapping screws that retain the top cover.
3. Set the voltage rating and
replace the fuse.
4. Replace the cover.
