Vigor2760 Series Quick Start Guide
9
2
2
.
.
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
Y
Y
o
o
u
u
r
r
R
R
o
o
u
u
t
t
e
e
r
r
This section will guide you to install the router through hardware connection
and configure the router’s settings through web browser.
2
2
.
.
1
1
H
H
a
a
r
r
d
d
w
w
a
a
r
r
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
Before starting to configure the router, you have to connect your devices
correctly. (For the hardware connection, we take “Vn” model as an
example.)

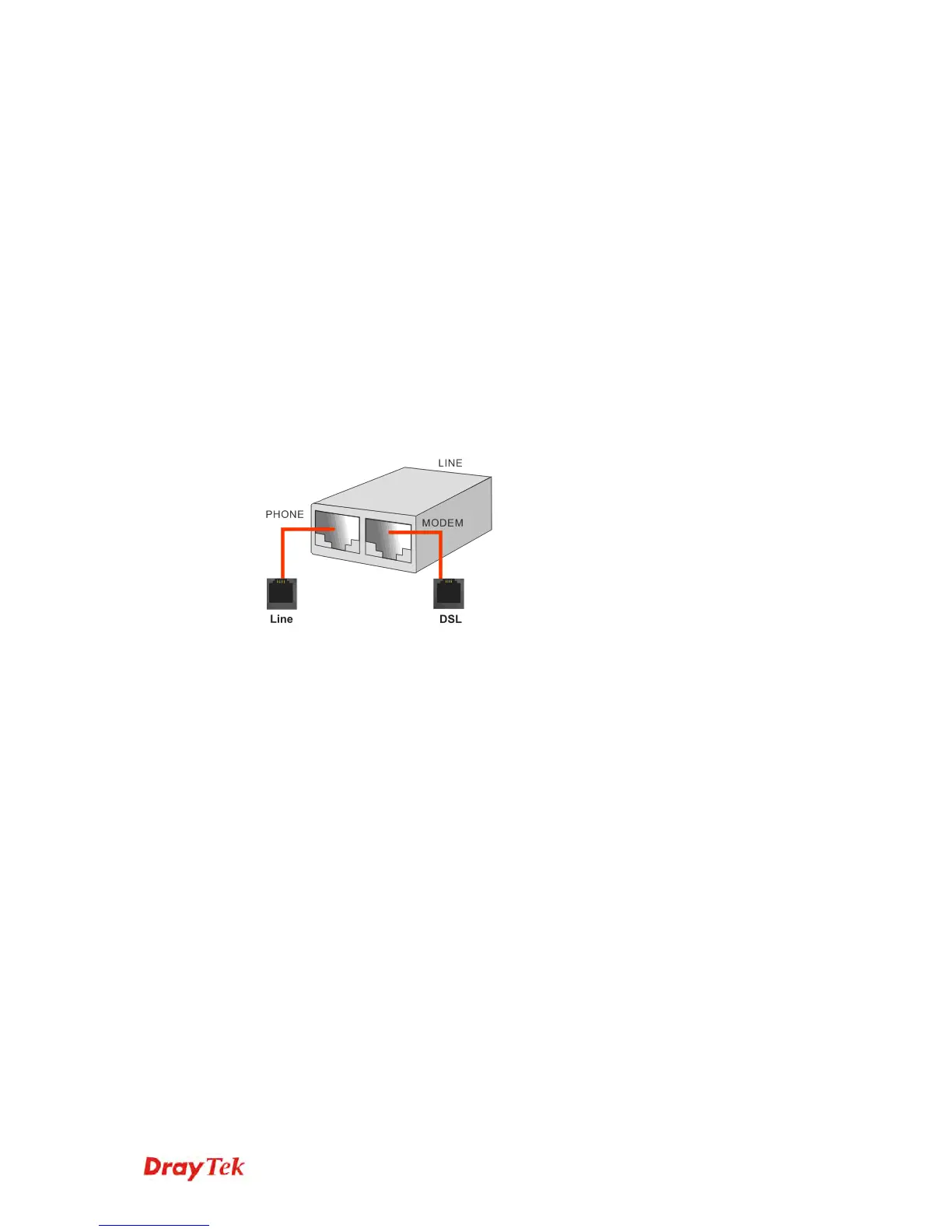

1. Connect the XDSL interface to the external XDSL splitter with an
XDSL line cable for all models. For Vigor2760Vn, also connect Line
interface to external XDSL splitter.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable.
This device allows you to connect 4 PCs directly.
3. Connect Phone port to a conventional analog telephone (for V model
only).
4. Connect detachable antennas to the router for Vigor2760 series (for n
model only).
5. Connect one end of the power cord to the power port of this device.
Connect the other end to the wall outlet of electricity.
6. Power on the router.
7. Check the ACT and DSL, LAN LEDs to assure network connection.
To Next Page
