Vigor2950 Series User’s Guide
104

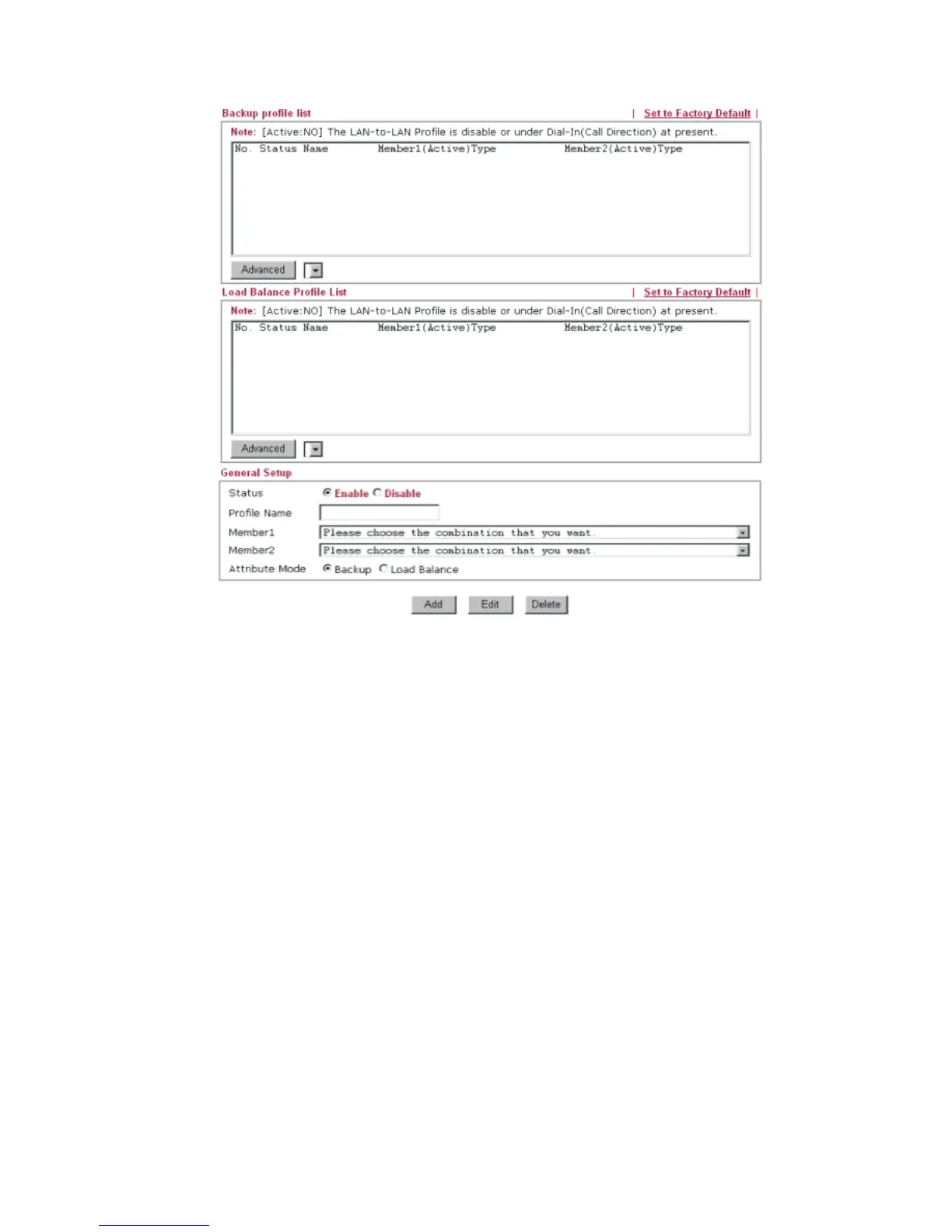

Backup Profile List Set to Factory Default - Click to clear all VPN
TRUNK-VPN Backup mechanism profile.
No -The order of VPN TRUNK-VPN Backup mechanism
profile.
Status (on Backup Profile field) - “v” means such profile is
enabled; ”x” means such profile is disabled.
Name (on Backup Profile field) - Display the name of VPN
TRUNK-VPN Backup mechanism profile.
Member1 (on Backup Profile field) - Display the dial-out
profile selected from the Member1 drop down list below.
Active (on Backup Profile field) - “Yes” means normal
condition. ”No” means the state might be disabled or that
profile currently is set with Dial-in mode (for call direction) in
LAN-to-LAN.
Type (on Backup Profile field) - Display the connection type
for that profile, such as IPSec, PPTP, L2TP, L2TP over IPSec
(NICE), L2TP over IPSec(MUST) and so on.
Member2 (on Backup Profile field) - Display the dial-out
profile selected from the Member2 drop down list below.
Advanced – This button is only available when there is one
profile (or more) created in this page.
