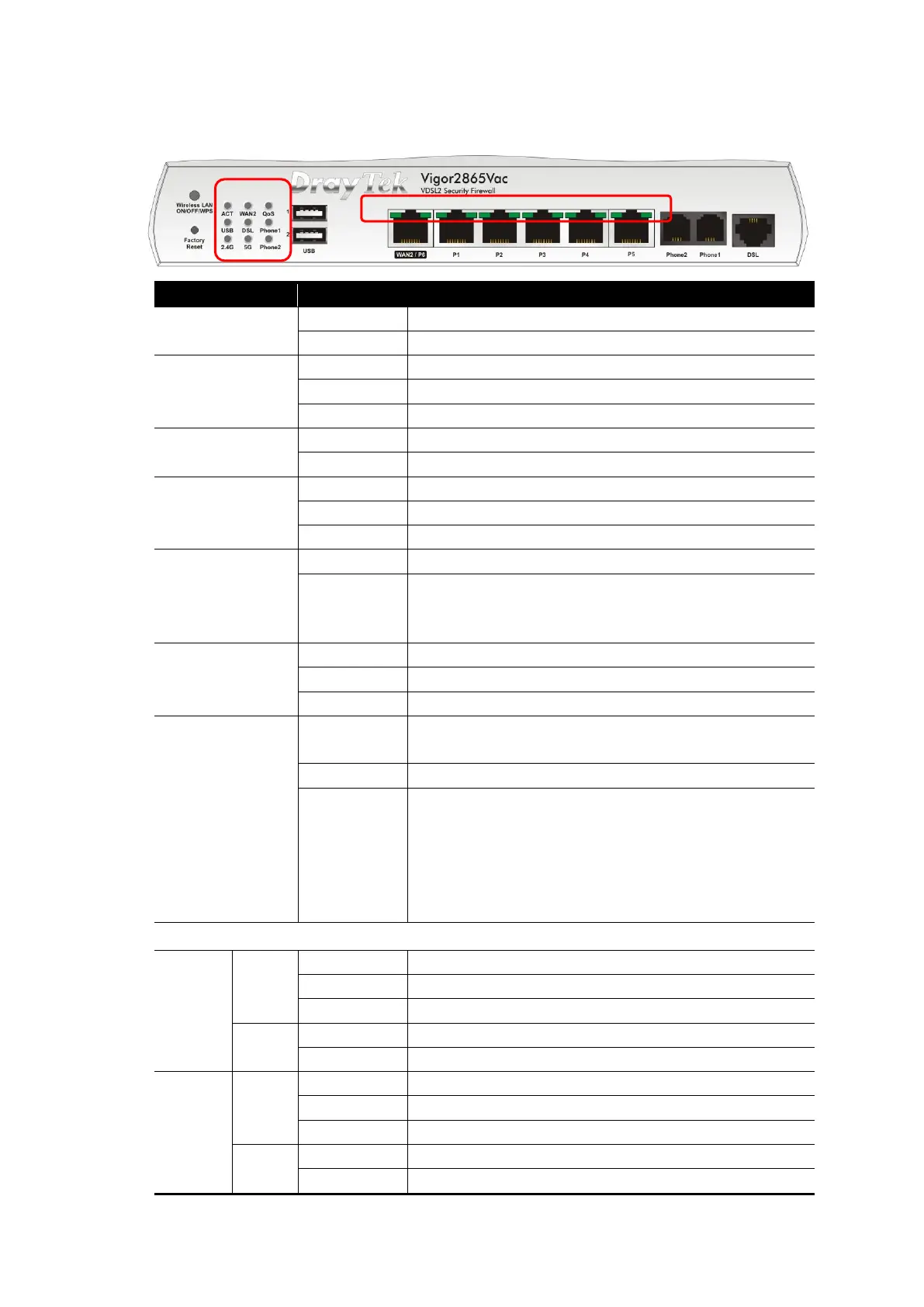

Draytek Vigor2865 Series User Manual

6
2
2
.
.
2
2
V
V
i
i
g
g
o
o
r
r
2
2
8
8
6
6
5
5
V
V
a
a
c
c
LED
Status
Explanation
ACT
Off
The router is powered off
Blinking
The router is ready and operating normally
WAN2
On
Internet connection is ready for use
Off
Internet connection is offline
Blinking
Data is being transmitted over WAN2
QoS
On
Quality of Service is active
Off
Quality of Service is inactive
USB
On
USB device is connected and ready for use
Off
No USB device is connected
Blinking
Data is being transmitted over USB
DSL
On
DSL connection synchronised
Blinking
Slowly: DSL connection not currently
synchronising or not detected
Quickly: DSL connection is synchronising
Phone1/2
On
The phone connected to this port is off-hook
Off
The phone connected to this port is on-hook
Blinking
A phone call is incoming
2.4G/5G
(Wireless LAN)
On
2.4G: 2.4GHz Access Point is active
5G: 5GHz Access Point is active
Off
Wireless Access point is inactive
Blinking
2.4GHz/5GHz LED will blink slowly when
transmitting over that interface
ACT & WLAN LEDs blink rapidly when WPS is
ready for WPS clients to connect. After 2
minutes, the router will disable WPS pairing
mode
LED on Connector
WAN2
/ P6
Left
LED
On
Ethernet WAN (RJ45) is connected
Off
Ethernet WAN is disconnected
Blinking
Data is transmitting (sending/receiving)
Right
LED
On
The port is connected with 1000Mbps
Off
The port is connected with 10/100Mbps
LAN
P1~P5
Left
LED
On
Ethernet LAN (RJ45) is connected
Off
Ethernet LAN is disconnected
Blinking
Data is transmitting (sending/receiving)
Right
LED
On
The port is connected with 1000Mbps
Off
The port is connected with 10/100Mbps
