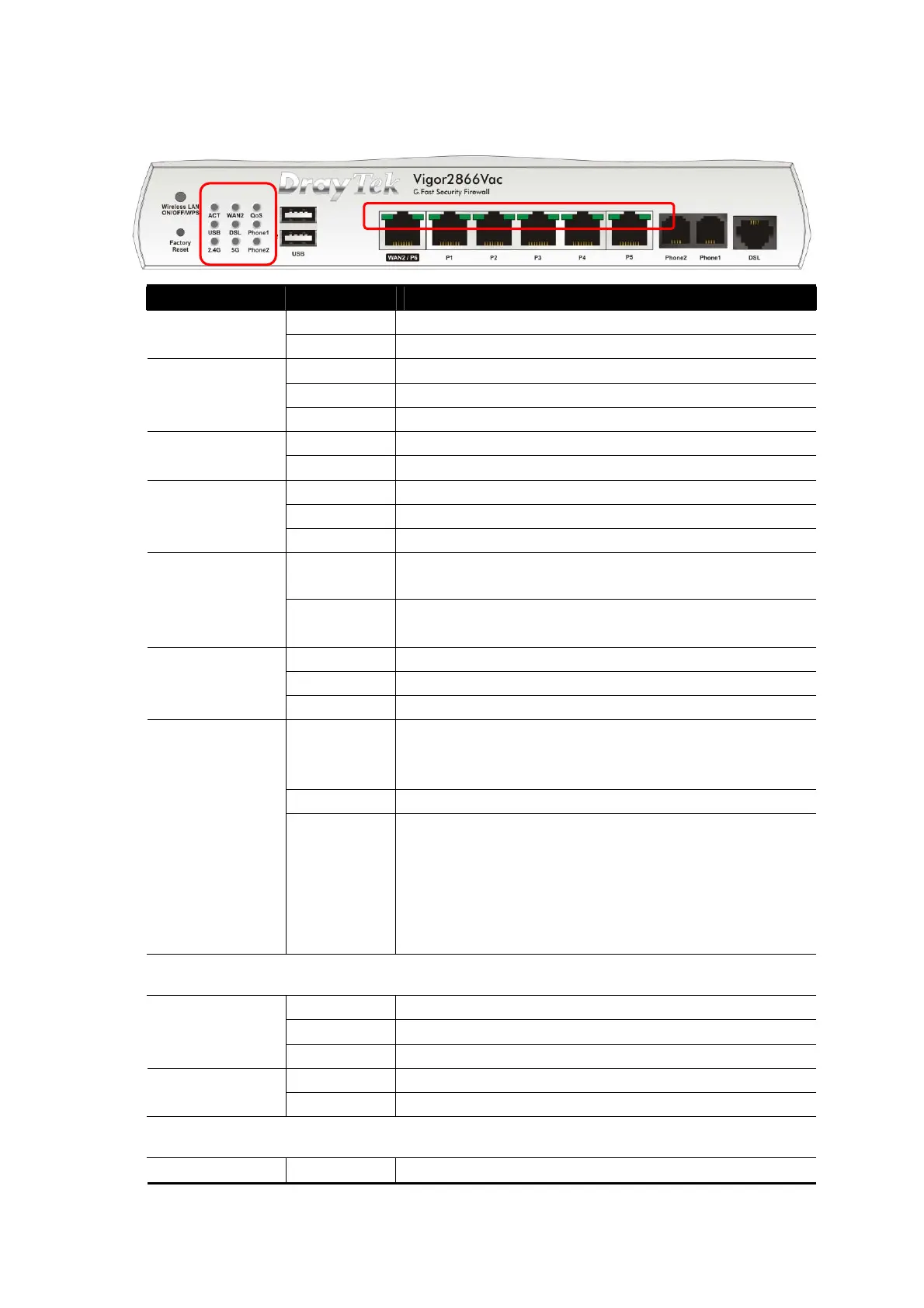

LED Status Explanation
Off The router is powered off.
ACT
Blinking The router is powered on and running normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The QoS function is active.
QoS
Off The QoS function is inactive.
On USB device is connected and ready for use.
Off No USB device is connected.
USB
Blinking The data is transmitting.
On
The router is ready to access Internet through
DSL link.
DSL
Blinking
Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone1/2
Blinking A phone call comes.
On
2.4G/5G: Wireless access point with bandwidth
of 2.4GHz/5GHz is ready.
WLAN: Wireless access point is ready.
Off Wireless function is disabled.
2.4G/5G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will
return to normal condition after two minutes.
(You need to setup WPS within 2 minutes.)
WAN2 / P6
On The port is connected.
Off The port is disconnected.
Left LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED
Off The port is connected with 10/100Mbps.
LAN P1-P5
Left LED On The port is connected.
