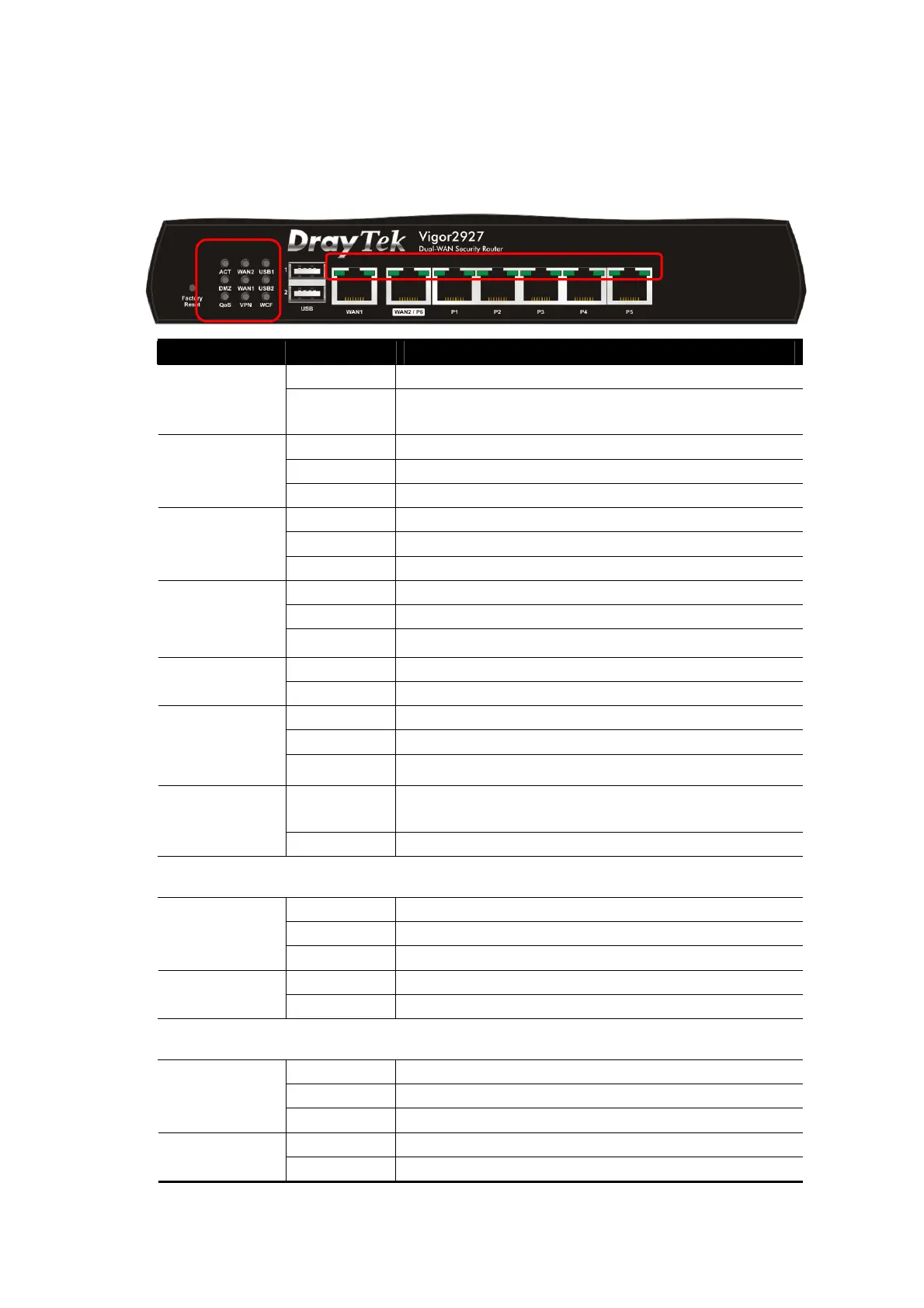

LED Status Explanation
Off The router is powered off.
ACT
Blinking
The router is powered on and running
normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2/WAN1
Blinking The data is transmitting.
On USB device is connected and ready for use.
Off No USB device is connected.
USB1/USB2
Blinking The data is transmitting.
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
On The QoS function is active.
QoS
Off The QoS function is inactive.
On The VPN tunnel is active.
Off VPN services are disabled
VPN
Blinking
Traffic is passing through VPN tunnel.
On
The Web Content Filter is active. (It is enabled
from Firewall >> General Setup).
WCF
Off WCF is disabled.
WAN1,WAN2 / P6
On The port is connected.
Off The port is disconnected.
Left LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED
Off The port is connected with 10/100Mbps.
LAN P1-P5
On The port is connected.
Off The port is disconnected.
Left LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED
Off The port is connected with 10/100Mbps
