Draytek Vigor2960 series Quick Start Quide

Vigor2960 Series Quick Start Guide
2
1
1
.
.
1
1
P
P
a
a
n
n
e
e
l
l
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n

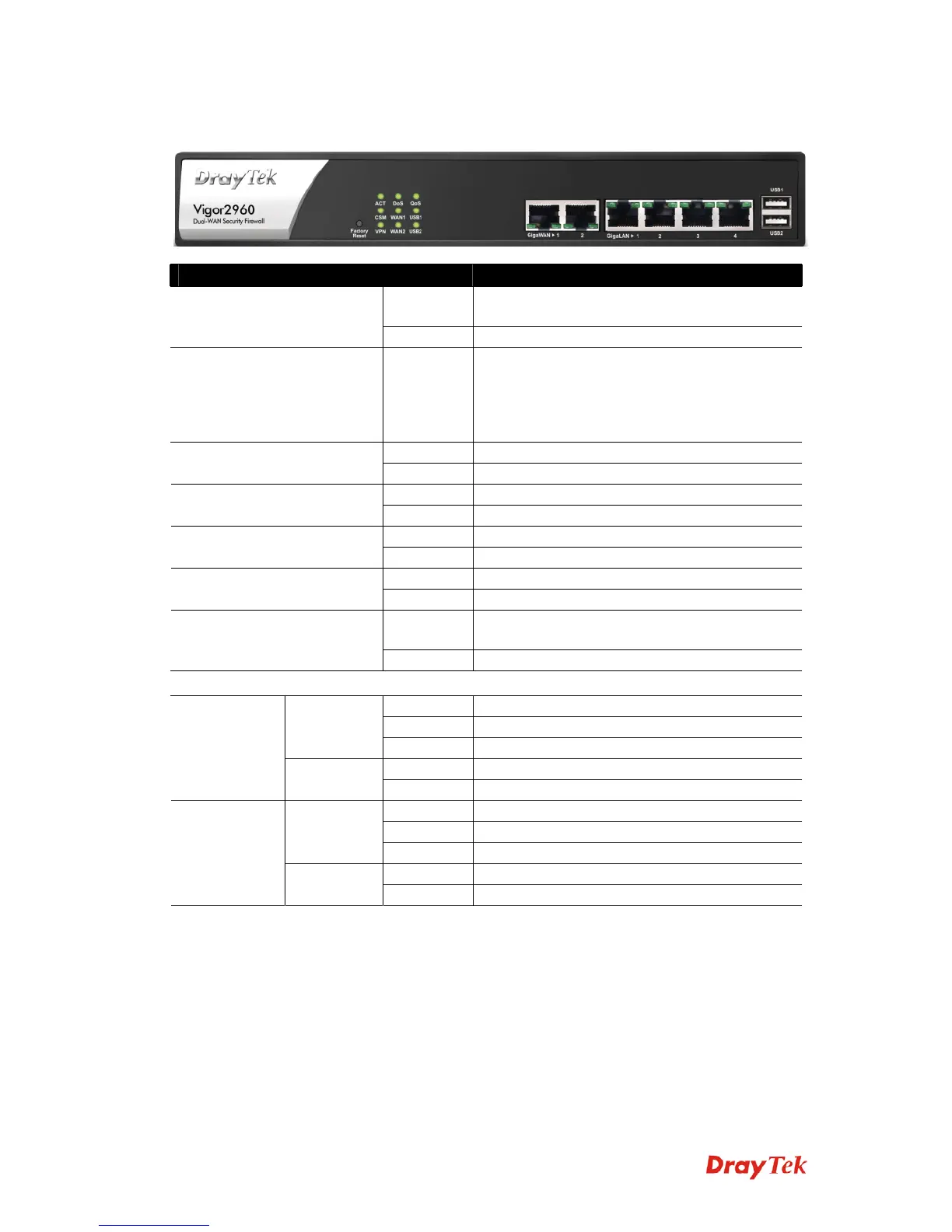

LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
CSM On The profile(s) of CSM (Content Security
Management) for IM/P2P, URL/Web Content
Filter application can be enabled from
Firewall >>General Setup. (Such profile
must be established under CSM menu).
On The VPN tunnel is active. VPN
Off No VPN tunnel is active.
On The DoS/DDoS function is active. DoS
Blinking It will blink while deleting an attack.
On The WAN1 or WAN2 connection is ready. WAN1/2
Blinking It will blink while transmitting data.
On The QoS function is active.
QoS
Off The QoS function is disabled.
On The USB device is connected and ready for
use.
USB1/2
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaWAN 1/2
Right LED
(Green)
Off The port is connected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1/2/3/4
Right LED
(Green)
Off The port is connected with 10/100Mbps.

Draytek Vigor2960 series Specifications

General

Brand	Draytek
Model	Vigor2960 series
Category	Firewall
Language	English
