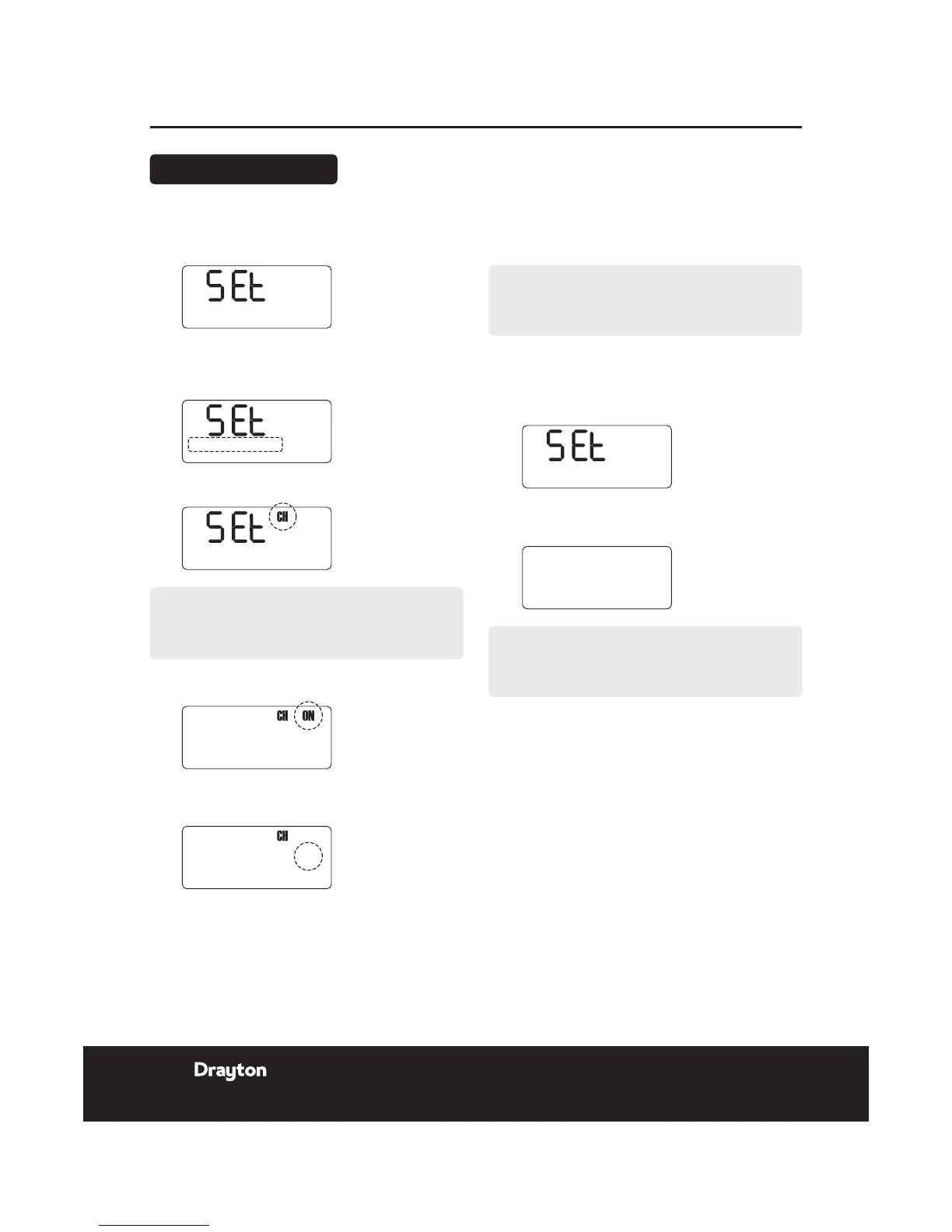

Setting Central Heating (CH) MON - FRI
1.
Press set? until SET and PROG? are shown in the
display.
2.
Press OK to enter program.
3.
Press OK to select MON-FRI.
4.
Press OK to select CH.
5.
Press + or - to change the ON time.
6.
Press set? to set the ON time and select the
OFF time.

NOTE:
Speed up the display by holding down the + or -
buttons.
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
Setting Hot Water (HW) MON - FRI
7.
Press + or - to change the OFF time.
8.
Press set? to set the OFF time and select the next
ON time.
9.
Press OK to select the rst ON time.
Repeat operations 5 to 8 to set the rst, second and third
HW ON/OFF times.

NOTE:
After pressing set? for the third HW OFF time the
display shows SET MON ...see next page.
Repeat operations 5 to 8 to set the second and third CH
ON/OFF times.
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30
PROG?
PROG?
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
PROG
MON TUE WED THU FRI
PROG?
MON TUE WED THU FRI
6:30
PROG
MON TUE WED THU FRI
6:30
PROG
OFF
HW
HW ON
MON TUE WED THU FRI
8:30
6:30

NOTE:
After pressing set? for the third CH OFF time the
display shows SET MON ...see next page.
Changing the Program
8 Installation & User Guide
