Technical description: OKCE 50 – 200

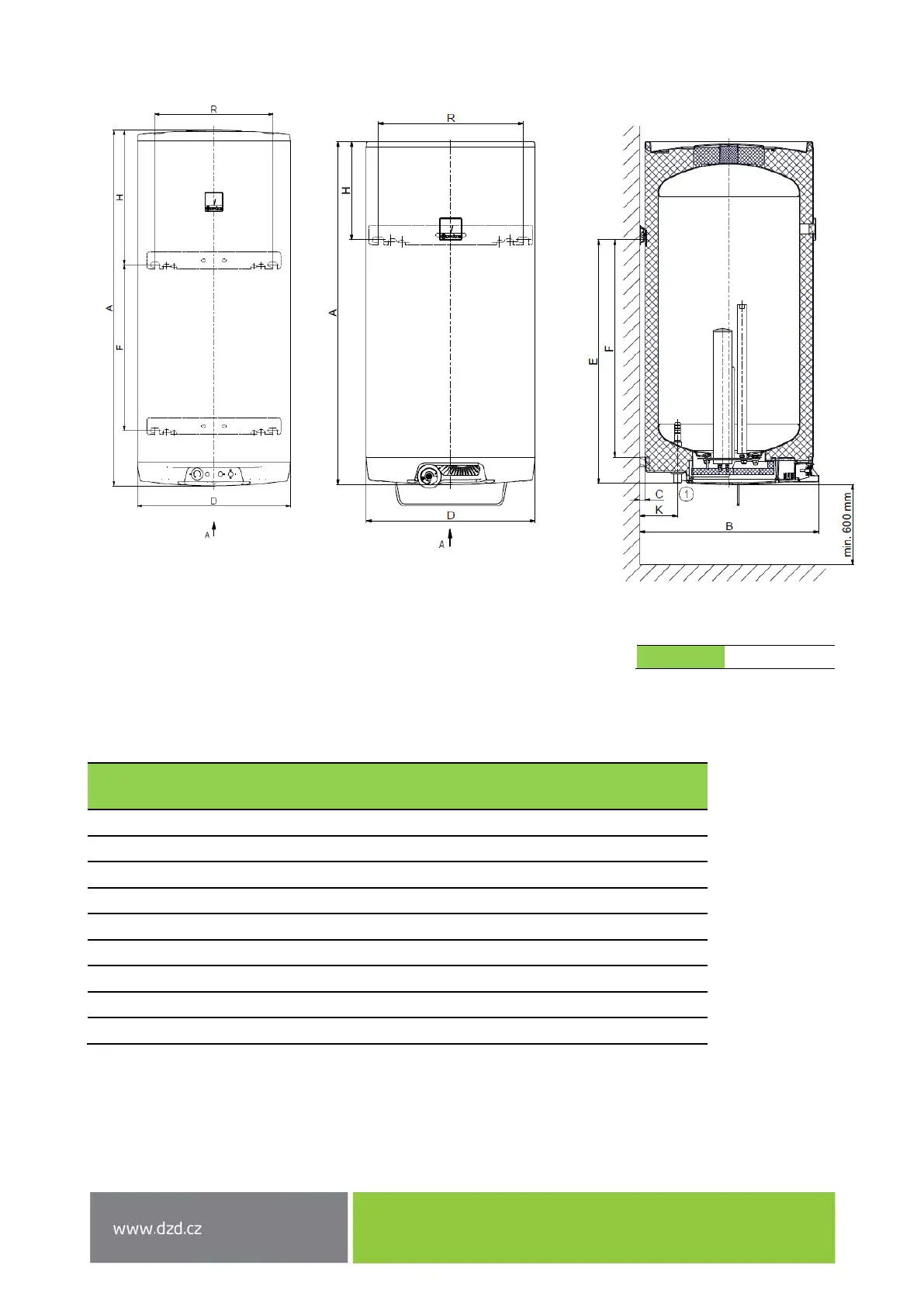

Figure 2
OKCE 50 OKCE 80 OKCE 100 OKCE 125 OKCE 160 OKCE 200
A
585 757 902 1067 1255 1290
B
562 562 562 562 562 600
C
14 14 14 14 14 14
D
524 524 524 524 524 584
E
440 605 725 760 1000 795
F
369 508 654 682 925 600
H
135 142 167 297 245 485
K
116 116 116 116 116 116
R
450 450 450 450 450 450
Table 2

3/4" outer
Upper and lower Hinge 200 l
4 anchoring screws
Dimensiions 450mm and F
check before drilling
Upper hinge 50-160 l
2 anchoring screws
