Option 1- Water Source with Male Thread Fitting
Completed Installation
Option 1
-With Male Thread Fitting
Option 2
-With Female Thread Fitting
Installation Instruction
❻
Install the 3-way Diverter Valve
Note:
·Close the main water valve in your home before installation and make
sure all the water in the pipes has been drained.
·Check whether the sealing ring is in place before installation. If not, all
the butted male thread fittings need to be firmly wrapped with Teflon
tape 6-9 turns in the direction of screwing to prevent leakage.
·It is recommended to install an angle valve at the water source before
installing the 3-way diverter valve.
·Use a monkey wrench to install if necessary.
·The following installation takes
3-Way Diverter Valve (G1/2) as an
example, the size of G3/8 is installed by the same method.

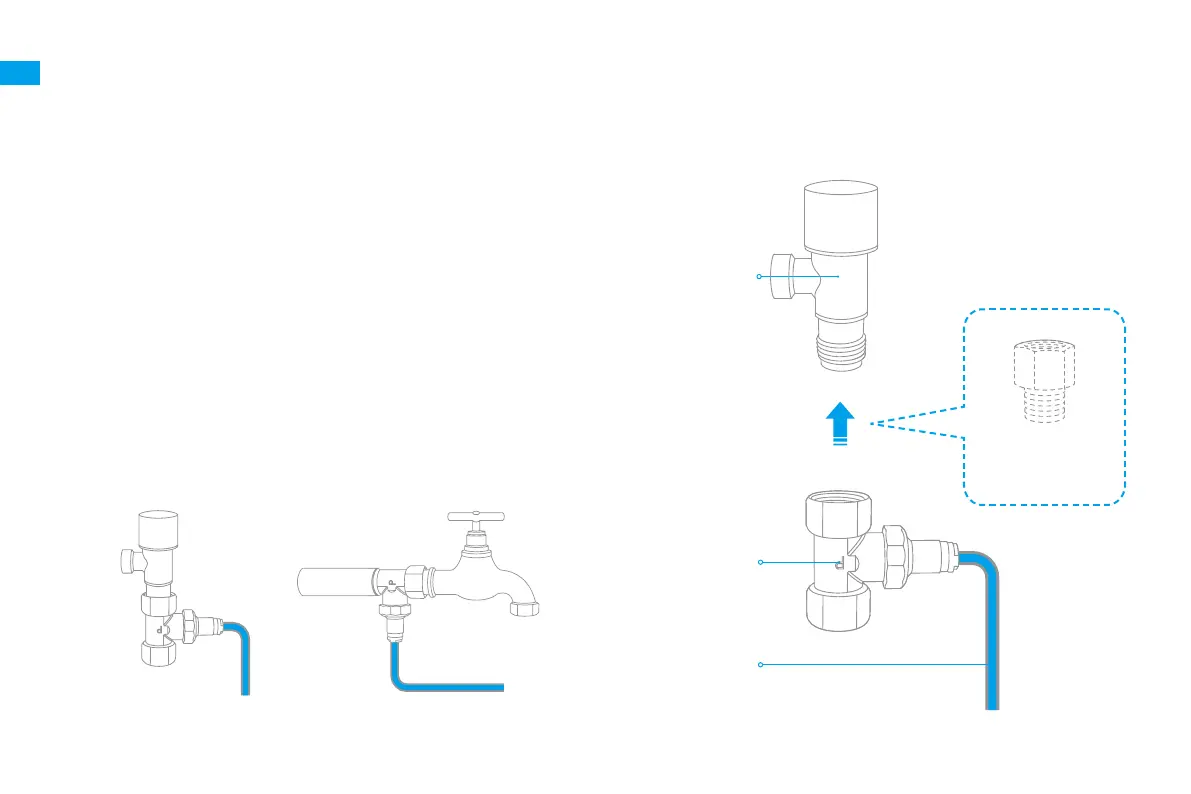

3-Way Diverter
Valve
Ⓓ
Blue Clean Water Pipe
(
from controller
assembly
)
Ⓝ
Angle Valve/
Water Source
(
not supplied
)
Adapter
(purchase separately
if necessary)
To Next Page
