Shower Base Installation - Preparation
1. Ensure that the floor and the studs
are at right angles.
Provide a 5”×5” opening in the sub-
floor for the drain.
The 2” PVC waste pipe should
extend above the surface of the
sub-floor according to the drain
installation instructions and the
height of the Shower base.
Refer to the product drawings and
tables in this installation manual for
the drain location.

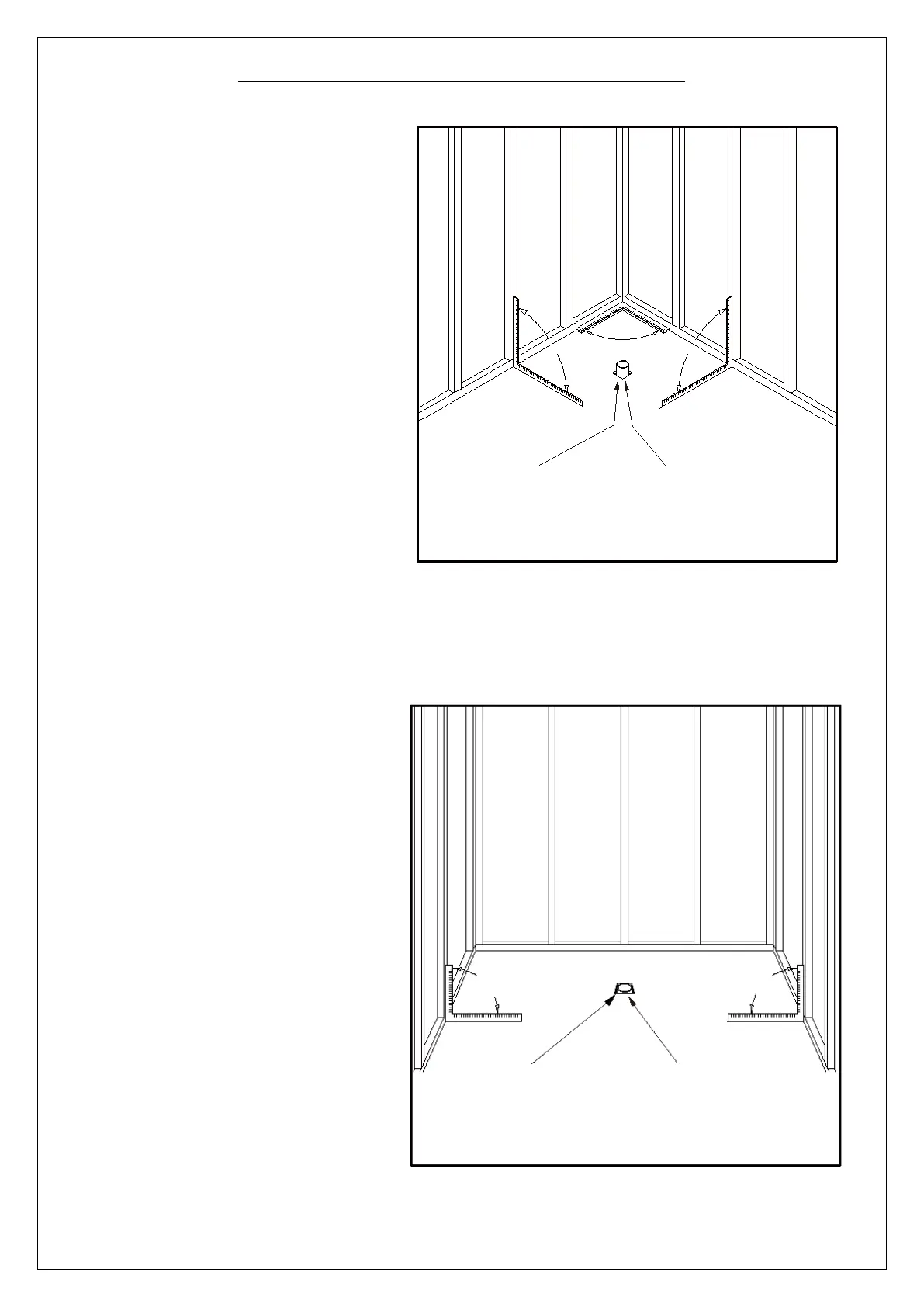

See Fig. 1 and Fig. 2 for details.
Fig. 1
Fig. 2
(See Product Chart for Drain Location)
(5"×5") Opening
2" PVC Waste Pipe
90°
90°
90°
90°
90°
2" PVC Waste Pipe
(5"×5") Opening
(See Product Chart for Drain Location)
