Dreamline PRISM PLUS - Enclosure Installation: Strip Measurement and Cutting; Measuring and Cutting Anti-Water Strips

14PRISM PLUS manual Ver 1 Rev 2 11/2016
Fig 15
Fig 16
1
Inside
2
measure
Door
Stationary
glass (01)
measure
inner part
Door
1”
2
3
4
5
6
7
8
Around Bottom sweep
1
Inside
3

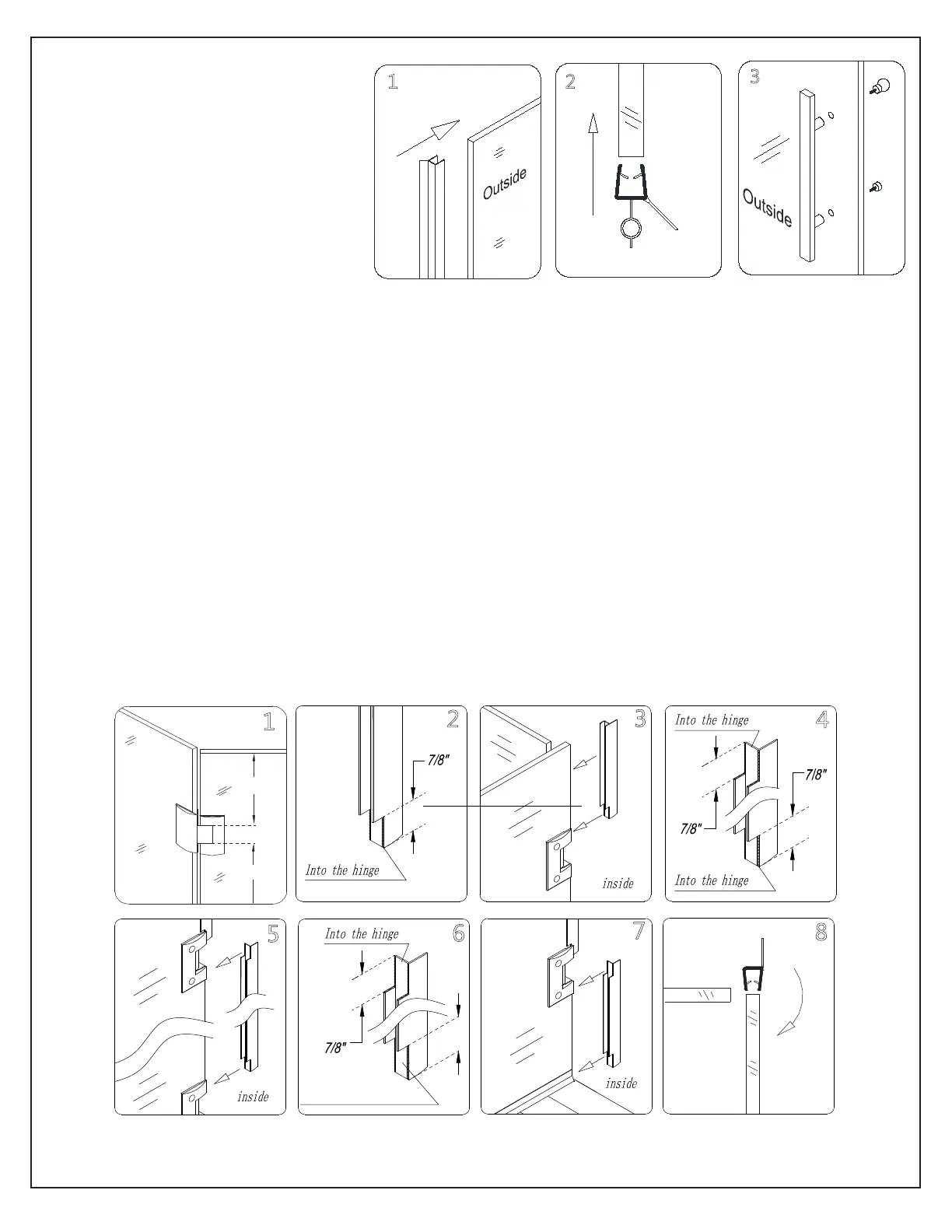

12. Press the Anti-water strip
(#14) onto the vertical edge of the
Stationary glass 2 (#03). (Fig 14.1)
Press the Bottom anti-water strip
(#15) onto the bottom edge of the
Door Glass (#02). (Fig 14.2)
See Fig 15 for details
13. Take three measurements:
• From the top edge of the Door Glass (#02) to the top edge of the inner part of the Hinge (05); (See
Fig 15.3)
• Repeat this process between the top and bottom hinges
• Measure up from the surface of the shower base to the bottom of the inner part of the bottom hinge
Cut the Anti water Side strip (hinge side) (13#) according to these measurements.
Notch the ends to fit into the hinges and also around the Bottom anti-water strip (#15).
Fully press the cut strips onto the vertical edge of the Door Glass (#02).
See Fig 16 for details
