DREAMS Bethany - Final Assembly and Adjustments; Mattress Base Board Installation

Bethany & Chloe Ottoman Bed - Assembly guide - Page 16
Slat Frame Support Bar
h
j
h x2
j
x1
WAR
!
NING! HAZARD DO NOT REACH INTOTHE SPACEB
ELOW!
a
e x4
c x4
c
CAUTION
To be operated by
ADULTS ONLY
.
Keep
children and pets away from the storage area.
Avoid
trapping your fingers by using the handle
to lift & lower the base.
Only lift when the mattress is in place.
Ensure the ottoman support bar is secure when the
base is open.
Regularly air the internal storage area and contents.
WARNING
TO AVOID ACCIDENTS
To access the storage area, the ottoman frame
MUST BE FULLY OPENED
and then
FULLY CLOSED afterwards.
!
7
x8
x12
c
d
x1
a
x4
e
x2
W
X
T
U
Double & King

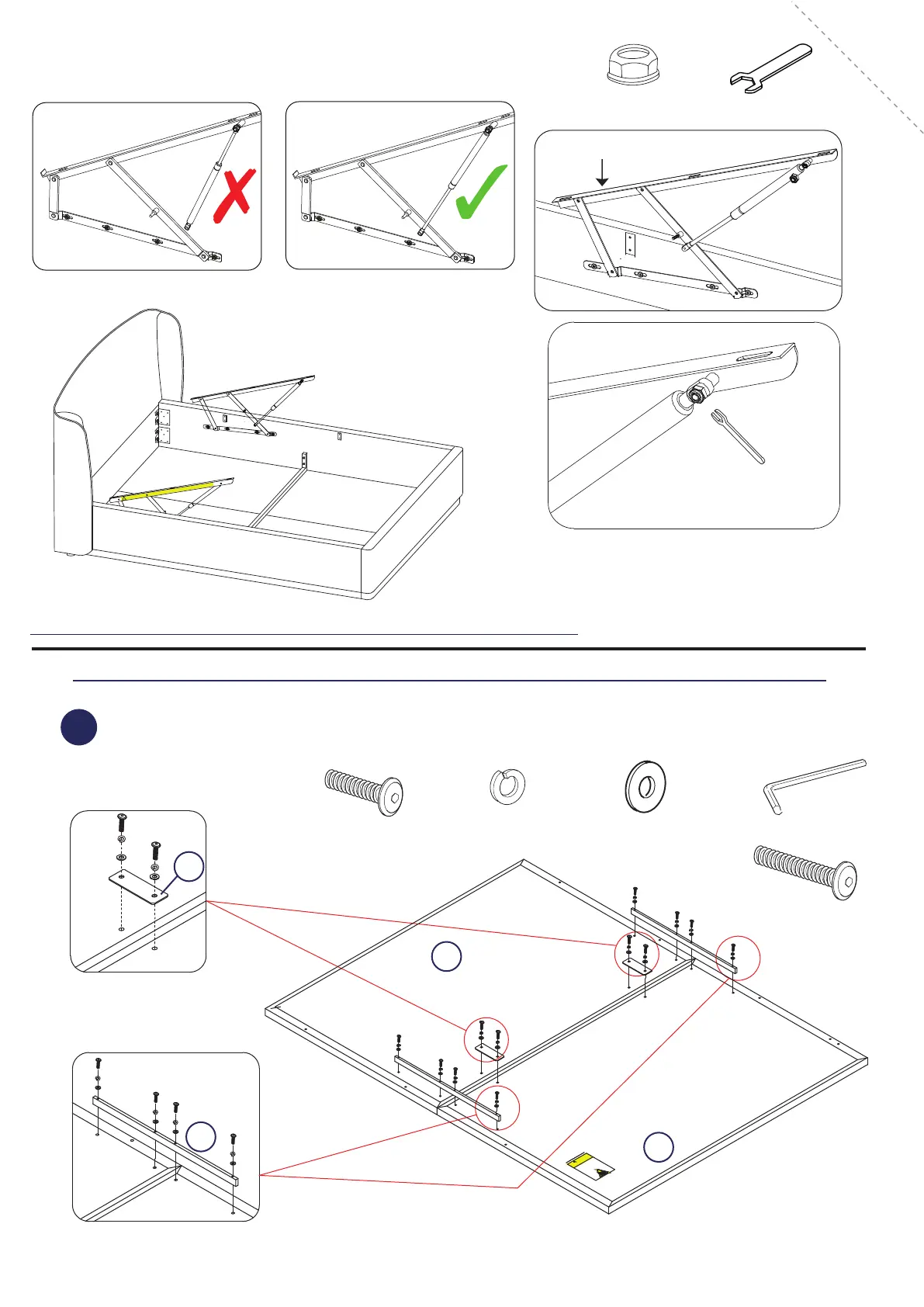

Loosely fit the piston stems to the upper axles.
Please make sure the cylinder
(largest diameter) is at the top.
Fit the piston stems to upper axles
using lock nuts (h)
Do not tighten these nuts 100%.
Fitting the Solid mattress base boards to either Bethany or Chloe.
Prepare the solid mattress base boards
PLEASE CARRY ON THE ASSEMBLY FOR CHLOE, FROM STEP (7)
