Drill Master 46055 - Parts List and Diagram

Page 11For technical questions, please call 1-800-444-3353.SKU 46055
NOTE: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.

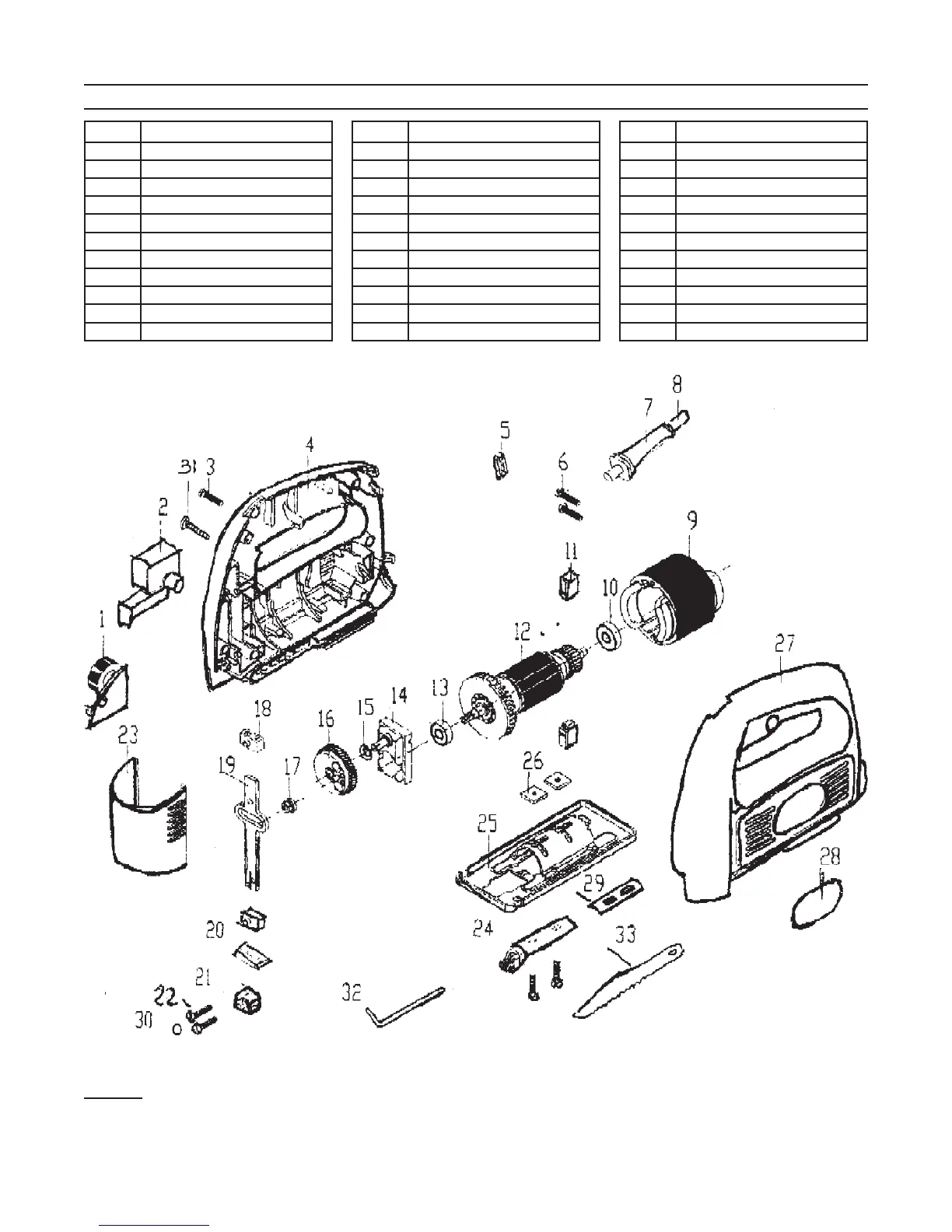

PARTS LIST AND DIAGRAM
Part Description
1 Speed Control
2 Switch
3 Screw
4 Right Housing
5 Cord Clip
6 Screw
7 Cord Guard
8 Power Cord
9 Stator
10 Bearing
11 Carbon Brush and Holder
Part Description
12 Rotor
13 Bearing
14 Center Support
15 Washer
16 Gear
17 Guide Case
18 Slide Holder
19 Slide Rod
20 Felt
21 Blade Clamp
22 Screw
Part Description
23 Guard
24 Guide Roller
25 Bottom Board
26 Square Nut
27 Left Housing
28 Nameplate
29 Washer Board
30 Spring Washer
31 Screw
32 Hex Spanner
33 Saw Blade
