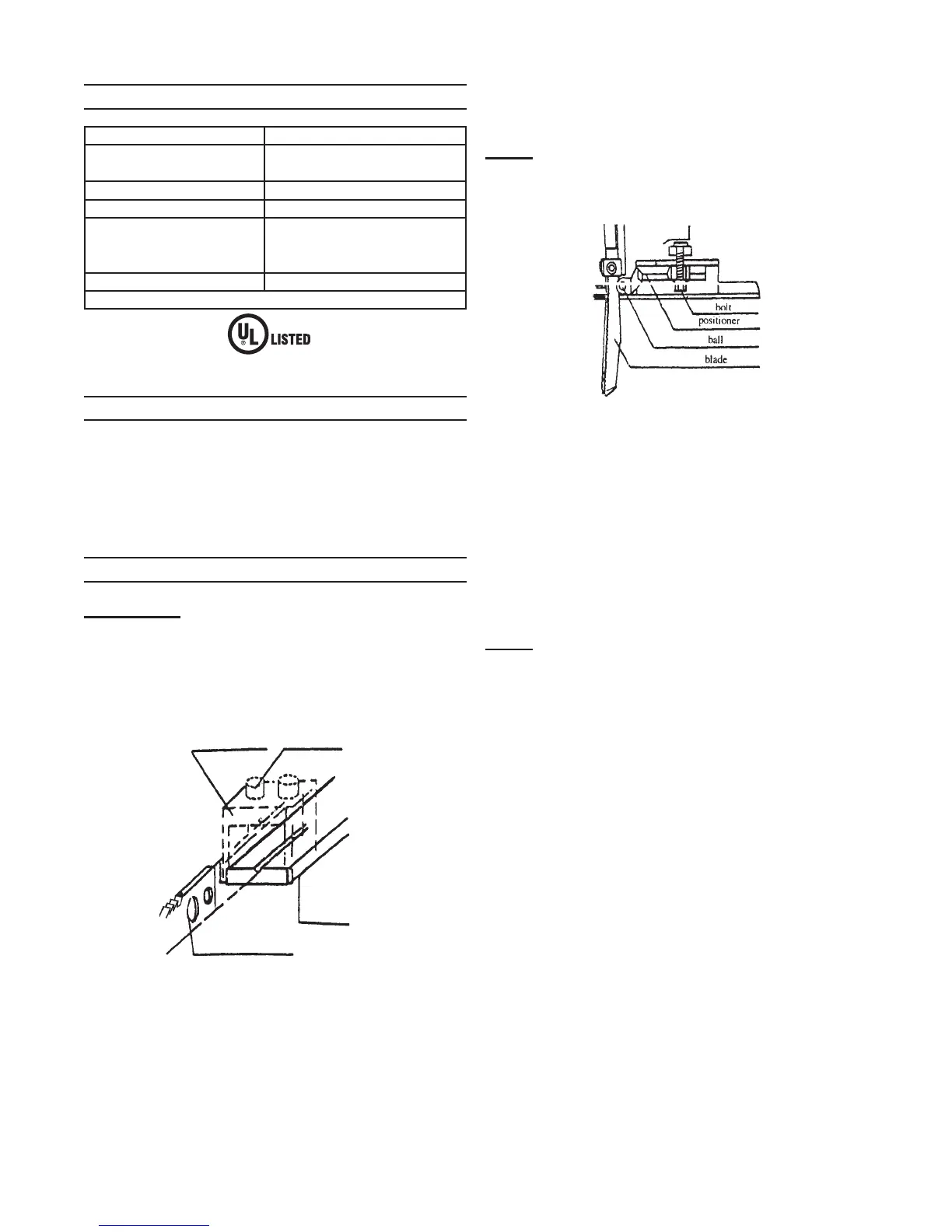

Page 8 For technical questions, please call 1-800-444-3353. SKU 46055
SPECIFICATIONS
Electrical Input 120 V~ / 60 Hz / 3.5 A
Speed Range 500-3000 SPM,
Six Speed Settings
Maximum Cutting Depth 2-1/8”
Stroke 3/4”
Blade Type Universal (U) Shank
ITEM # 02713 - 14 Pc.
Jigsaw Blade Set.
Cord 18 Gauge, Two Prong Plug
Includes 6 TPI and 24 TPI Blades and Tiltable Base
E194601
UNPACKING
When unpacking, make sure the item
is intact and undamaged. If any parts are
missing or broken, please call Harbor Freight
Tools at 1-800-444-3353 as soon as possible.
BLADE MOUNTING
WARNING! Do not attempt to mount a blade
unless the Jigsaw is unplugged from the
power source.
Bolt
Blade Stock
Blade Clamp
Figure 1
Blade
1. Loosen the Bolt on the Blade Clamp
(21) with the Hex Spanner (32).
Refer to Figure 1.
Insert the end (with holes) of the Blade 2.
between the Blade Stock and the Blade
Clamp. Hold the Blade level while
tightening the Bolt with the Hex Spanner
(32).
Note: To remove a Blade, loosen the Bolt and
remove Blade.
Figure 2
3. The Ball or guide must be positioned
before use. See Figure 2.
Using the 4. Hex Spanner (32), loosen the
Bolt on the bottom plate.
Refer to Figure 2.
Slide the positioner so that the Ball is 5.
touching the blade. Make sure you are
working with a straight blade.
Note: If you are cutting synthetic plate or
metal, use a little cutting oil between
the Blade and the Ball. Metal cutting
is discussed in more detail later in this
manual.
REV 05b, 10d
