Page 14SKU 91396 For technical questions, please call 1-800-444-3353.
REV 07j, 10b
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as original or replacement parts.
PARTS LIST - DRILL

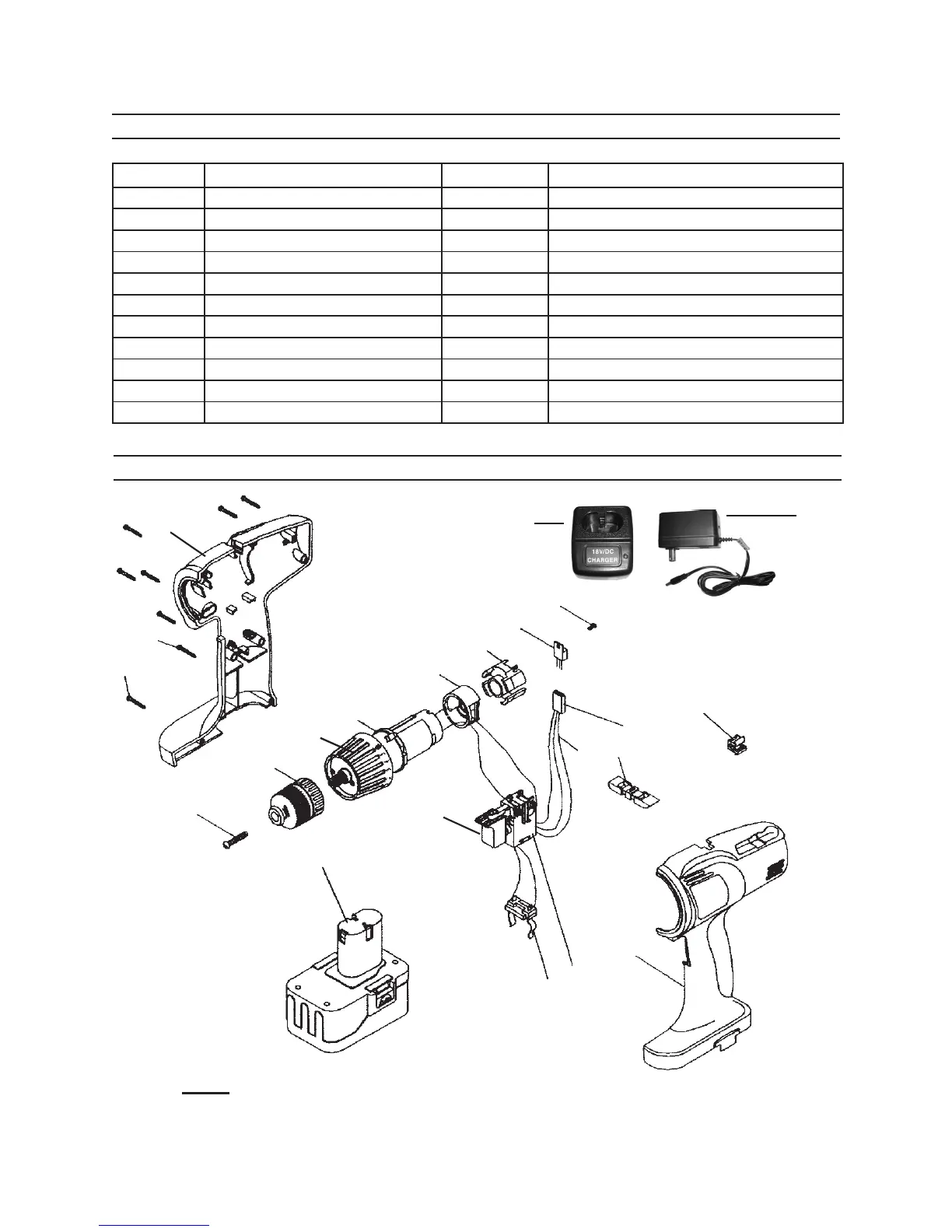

ASSEMBLY DIAGRAM - DRILL
Part # Description Part # Description
1A Screw (ST 2.9 x 15) 12A Wire
2A Screw (ST 2.9 x 18) 13A Rotation Button
3A Screw (M5 x 25) 14A Connector
4A Right Case 15A Screwdriver Bit Clamp
5A Chuck 17A Battery Clamp (Not shown)
6A Gear Box 18A Trigger
7A Motor Connector 19A Left Case
8A Radiator 24A Battery Charger
9A Bulb 25A AC/DC Adapter
10A Small Screw 26A Torque Setting Ring
11A Battery
19A
15A
14A
13A
12A
11A
10A
9A
8A
7A
6A
5A
26A
3A
1A
2A
4A
18A
24A
25A
To Next Page
