Page 15SKU 91396 For technical questions, please call 1-800-444-3353.
PARTS LIST - FLASHLIGHT
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as original or replacement parts.

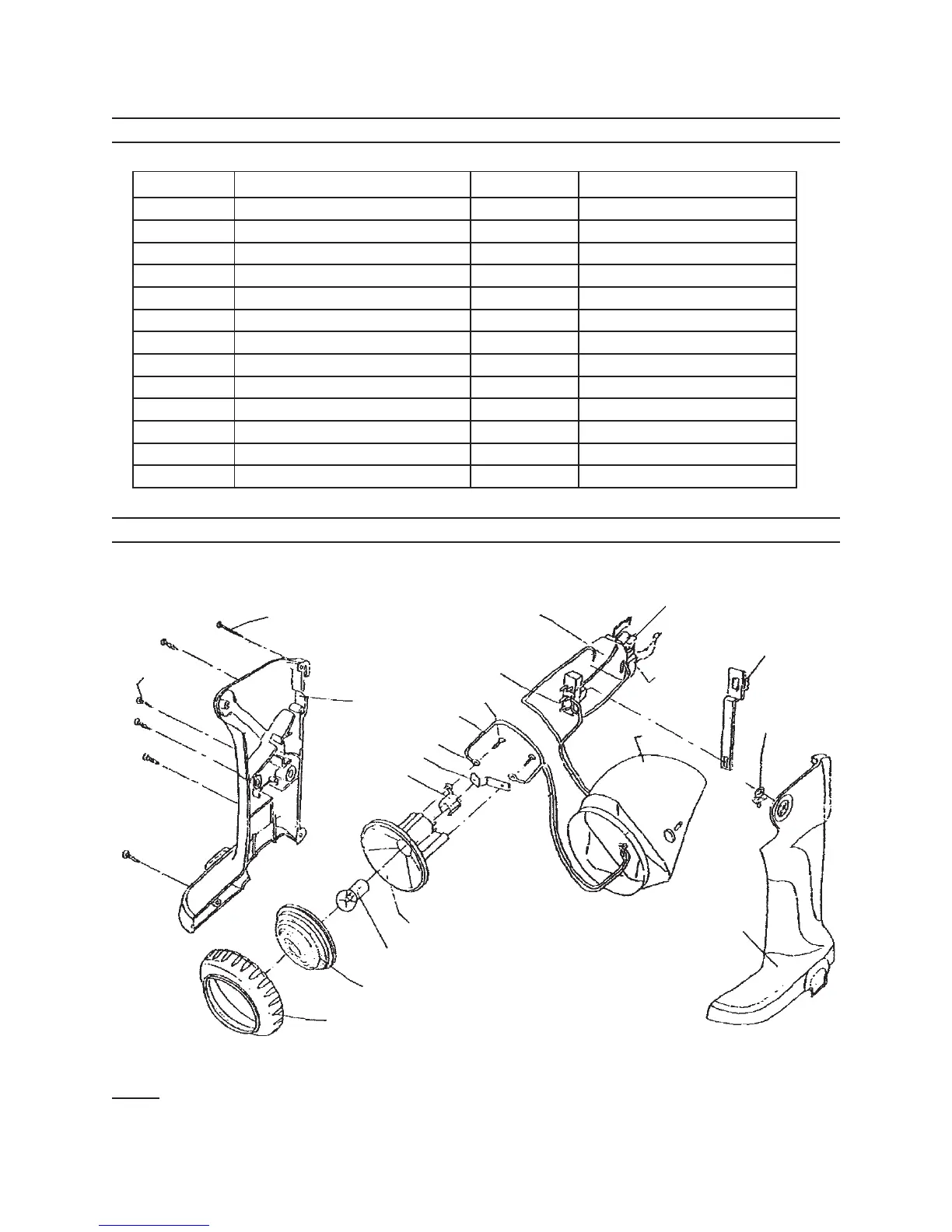

ASSEMBLY DIAGRAM - FLASHLIGHT
2B
24B
23B
15B
12B
16B,17B,18B,
19B,20B,21B,22B
14B
13B
11B
10B
9B
8B
7B
6B
5B
4B
3B
26B
1B
25B
Part # Description Part # Description
1B Right Case 14B Circuit Board
2B Left Case 15B Battery Clamp
3B Lamp Cover Ring 16B Capacitor
4B Lamp Screen 17B Diode
5B Bulb 18B Triode
6B Lamp Reector 19B Triode
7B Bulb Holder 20B Resistor
8B Connecting Plate 21B Resistor
9B Connector 22B Resistor
10B Wire 23B Switch Lever
11B Stun Screw 24B Switch Connector
12B Lamp Holder Case 25B Stun Screw
13B Switch 26B Stun Screw
