SKU 93816 For technical questions, please call 1-800-444-3353. Page 15

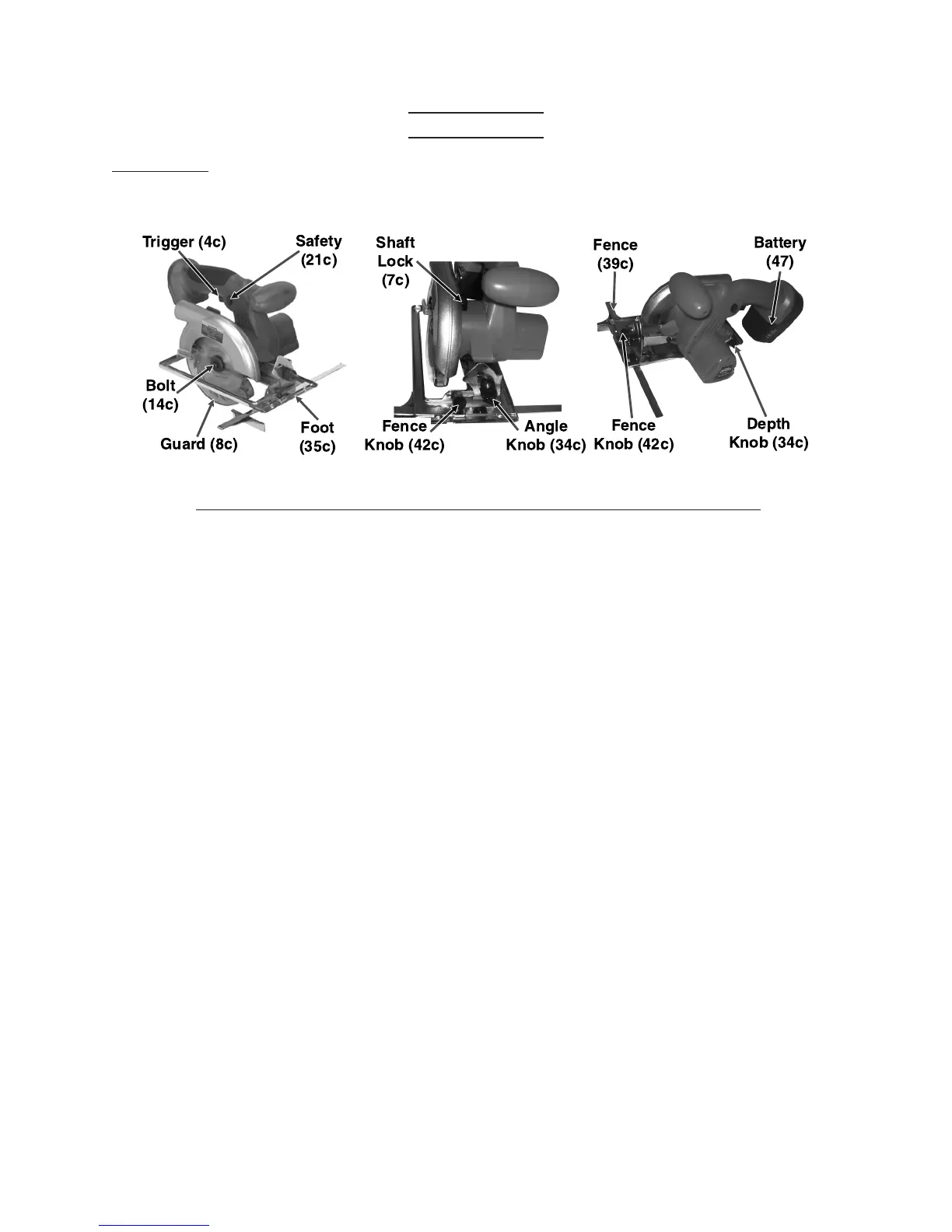

Circular Saw
WARNING: Always make sure the Battery (47) of the Circular Saw is removed
prior
to
making any adjustments to the tool, except for adjusting the depth of cut (required to
install the battery).
1. Blade Installation:
A. Make certain that the Battery (47) is removed before proceeding.
B. Remove the Hex Wrench (55c) from its holder near the Depth Knob (34c).
C. Press in and hold the Shaft Lock (7c) while you loosen the Bolt (14c). Remove
the Bolt (14c) and the Outer Flange (13c).
D. Hold the Guard (8c) open and slide the Blade (10c) over and onto the shaft from
the bottom. Make certain that the arrow marked on the Blade (10c) is facing
the same direction as the arrow molded into the Fixed Guard (12c).
E. Replace the Outer Flange (13c) lining up the flats in the Flange with the flats on
the shaft.
F. Press in and hold the Shaft Lock (7c) while you reinstall the Bolt (14c) and se-
curely tighten it. Return the Hex Wrench (55c) to its holder.
2. The Fence (39c) helps you cut multiple times at roughly the same distance.
To Adjust the Fence (39c):
A. Loosen the Fence Knob (42c).
B. Move the Fence as desired.
C. Retighten the Fence Knob securely.
