Installing Your Water 1000 Pro Series
Installing Your Water 1000 Pro Series 2-44

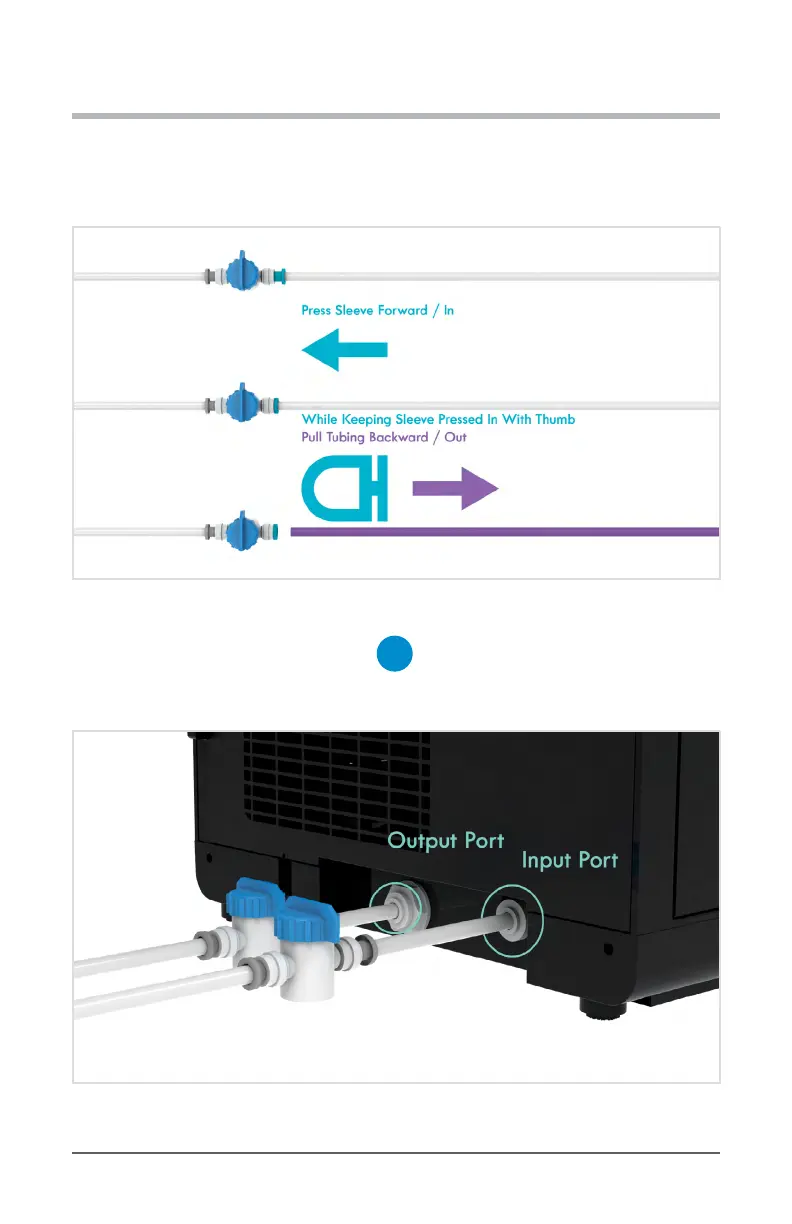

4. Next, remove the Input Port Plug from Source Input Port using the standard quick
connect detach method, as shown below (but with appliance port and plug, rather than
shuto valve and tubing).
Diagram 2.7.4 - How To Detach Quick Connect Tubing
5. Connect the open end of the section of
A
1/4 in. White PP Tubing connected to
your water source to the Source Input Port on the back of your 1000 Pro Series, as
shown.
Diagram 2.7.5 - Connect Source Line To Source Input Port On Your Water 1000 Pro Series
To Next Page
