DriSteem VM-4 - Replacement Parts

15

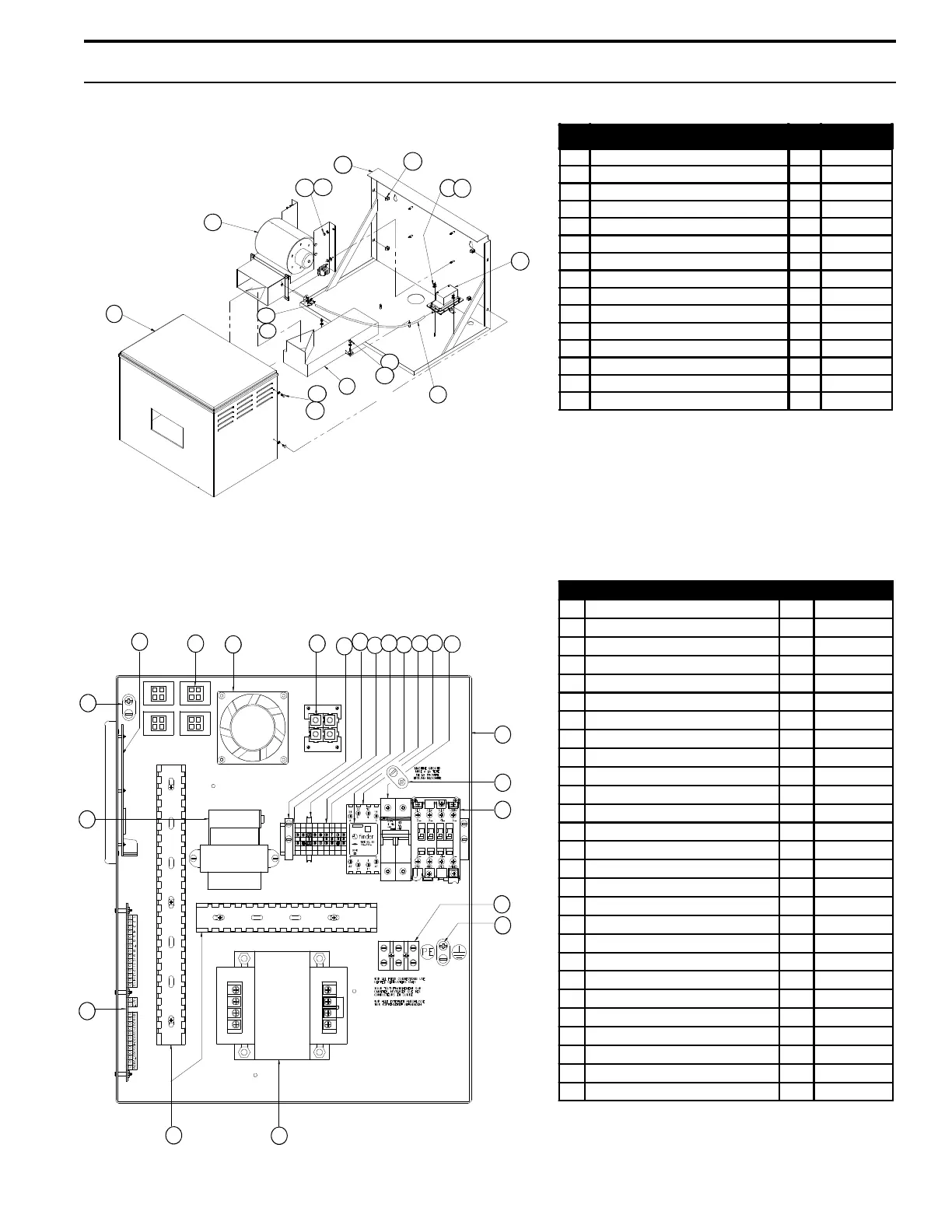

REPLACEMENT PARTS
Table 15-1: Space Distribution Unit (SDU-E)
Table 15-2: VAPORMIST
®
subpanel with SDU-E
12
13
*Specify model size when ordering
11
78
3
5
1
4
14
10
6
13
12
8
9
2
9
6
6
5
1
7
4
2
3
13
2
2
8
18
14
16
17
12
10 15
11
19
No. Description Qty. Part No.
1 Cabinet base, VM99 1 330000-003
2 Blower, SDU99 external assembly 1 409540-003
3 Frame, SDU external 1 165542
4 Dispersion chamber, SDU99 w/ 1½" out 1* 160445-001
4 Dispersion chamber, SDU99 w/ 2" out 1* 160445-002
5 Switch, air flow 1 406190
6 Tubing, 3/8" OD x .060 clear vinyl 1 405722
7 Nut, 8-32 x 3/8" 2 700200-002
8 Star washer, 8-32 6 700200-003
9 Screw, self tapping 8-32 x 3/8" 4 700170-001
10 Screw, 8-32 x 1/2" panhead Phillips F 4 700170-001
11 Cage clip, 8-32 4 409593-001
12 Lock washer, 1/4" 6 700300-005
13 Nut, 1/4-20 hex 10 700300-016
14 Cap, black 4 409593-002
No. Description Qty. Part No.
1 Subpanel, VM99 barrier 1 120801
2 Ground lug, L-35 10-14 GA CP-8 1 409250-017
2 Ground lug, L-70 6-8 GA CP-4 1 409250-018
3 Transformer, 600V 1 408896
3 Transformer, 120/240/480/208 1 408965-001
4 Channel, wire with cover 2 408999-003
5 Main board, VL-3 1 408490-001
6 Display board, VL-3 with enclosure 1 408490-002
7 Plug, 4-prong female 4 409585-008
8 3-pole, 3-phase, power block 1 408300-002
8 2-pole 1-phase, power block 1 408300-001
9 Fan, 24 Volt 1 408677-001
10 Power plug 1 409585-001
11 Terminal 8 408252-001
12 Terminal, ground 1 408252-010
13 Terminal, end plate 1 408252-005
14 Terminal, jumper 2 408252-008
15 Relay, 24V 1 407900-016
16 Relay socket 1 407900-011
17 Breaker 1-pole 1.6A 480V 2 406775-001
17 Breaker, 1-pole 1.5A 600V 2 406775-003
18 Contactor, 60A 1 407001-021
18 Contactor, 32A 1 407001-020
19 Transformer, 480V 300VA 1 408991
19 Transformer, 575V 300VA 1 408982
19 Transformer, 480V 500VA 1 408996-008
19
Transformer, 600V 500VA 1 408996-009
