Drive 15230 - Page 3

ASSEMBLY INSTRUCTIONS
HEAD AND FOOT ASSEMBLY

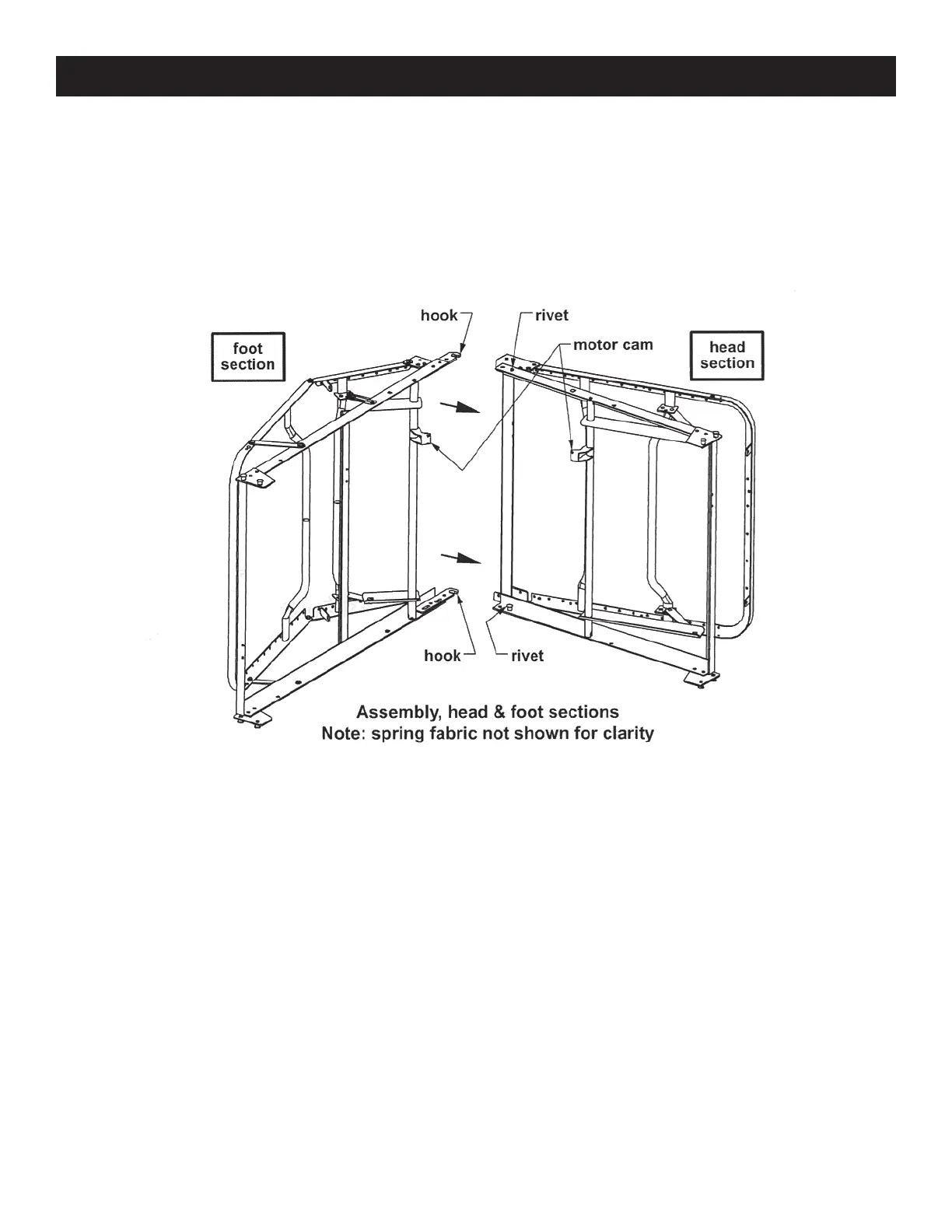

1. Lay the head and foot sections on their sides at approximately right angles to
each other with motor clamps up, as shown below.
2. Slide the head and foot sections together until the foot section’s hook catches
the head section’s rivet on both sides.
2
