ASSEMBLY INSTRUCTIONS
MOTOR ASSEMBLY
REMOVE MOTOR SIDE CAPS

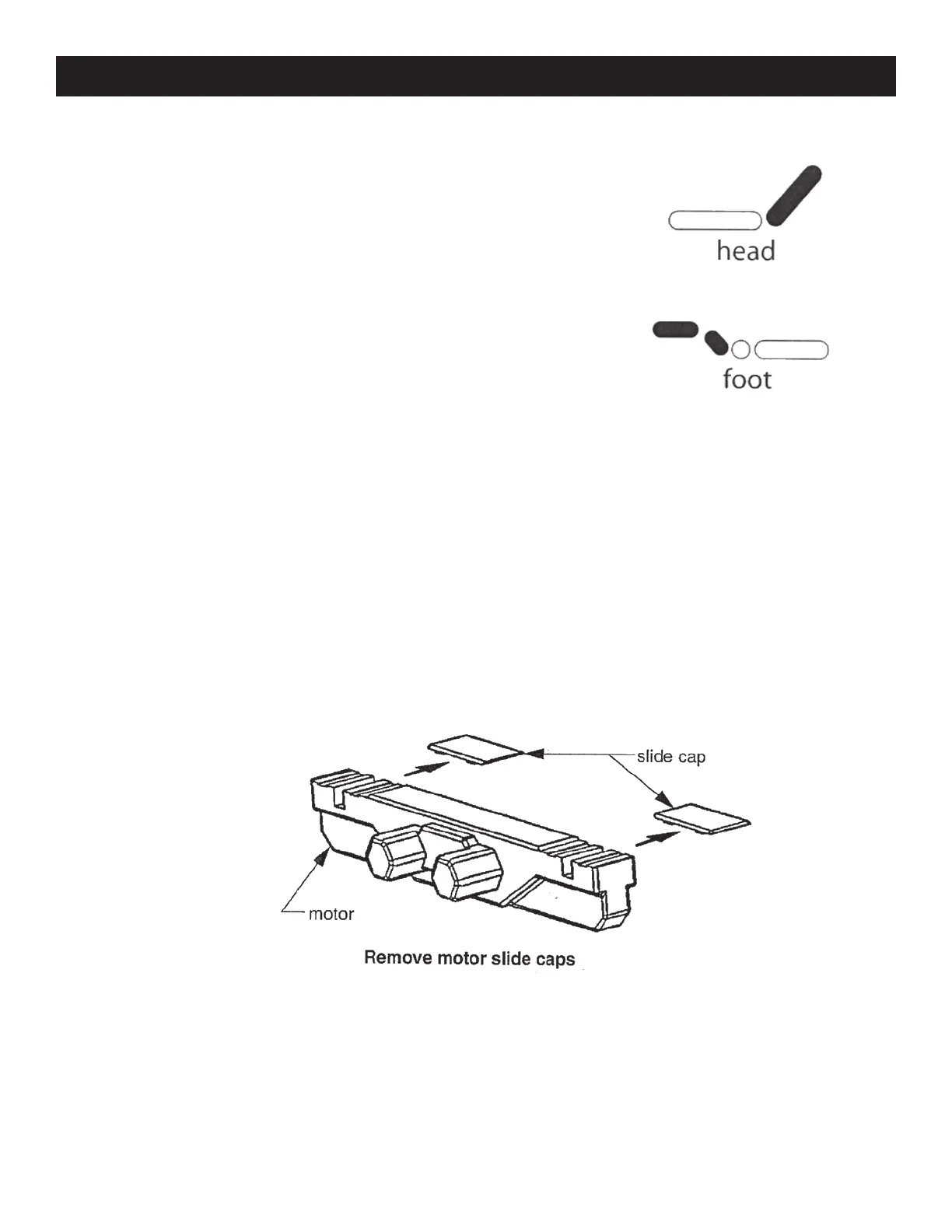

1. Remove the slide caps from both ends of the motor as shown below.
Plungers should be recessed in motor cavities; if not, operate “down” function
on the pendant hand control.
NOTE: Motor comes from factory with pendant hand control plugged into motor.
CAUTION: ASSEMBLE MOTOR ON BED AS
FOLLOWS; INCORRECT INSTALLATION
COULD CAUSE BED TO MOVE IN
UNEXPECTED WAYS. MOTOR CAN BE
INSTALLED BACKWARDS.
NOTE: MOTOR IS EMBOSSED WITH
HEAD AND FOOT SYMBOLS (SHOWN
AT RIGHT) AT END OF MOTOR.
2. Install 9V backup battery (not provided) and slide into storage area.
4
To Next Page
