ASSEMBLY INSTRUCTIONS
FULL-ELECTRIC BED ONLY
After installing foot end, you may have to shift bed frame slightly in bed end hooks
to ensure proper horizontal alignment with motor coupling and end gearbox shaft.
When coupling and shaft are aligned, unlock spring-loaded coupling. Coupling may
not snap into groove until motor is rotated with pendant hand control after bed
is assembled.

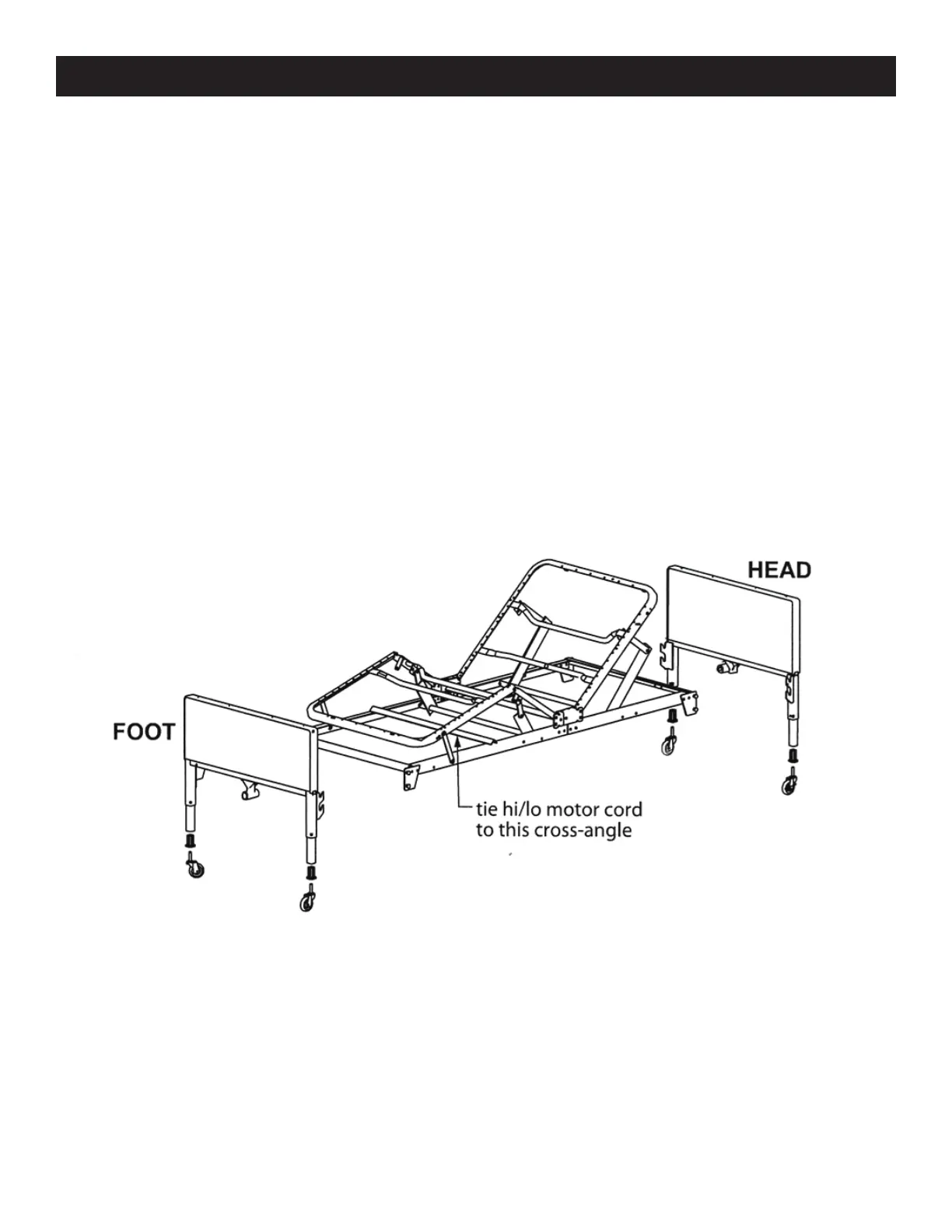

Plus hi/lo motor into actuator assembly, being careful to route cord with the nylon
tie strap provided under fixed base frame cross-angle (as shown below) to ensure
clearance with hi/lo drive shaft. The motor plug is located next to the pendant
hand control plug on the actuator.
NOTE: Do not tie motor cord to movable knee section crosstube.
FULL-ELECTRIC AND SEMI-ELECTRIC BED
7. Repeat steps 1-6 for head bed end.
7
