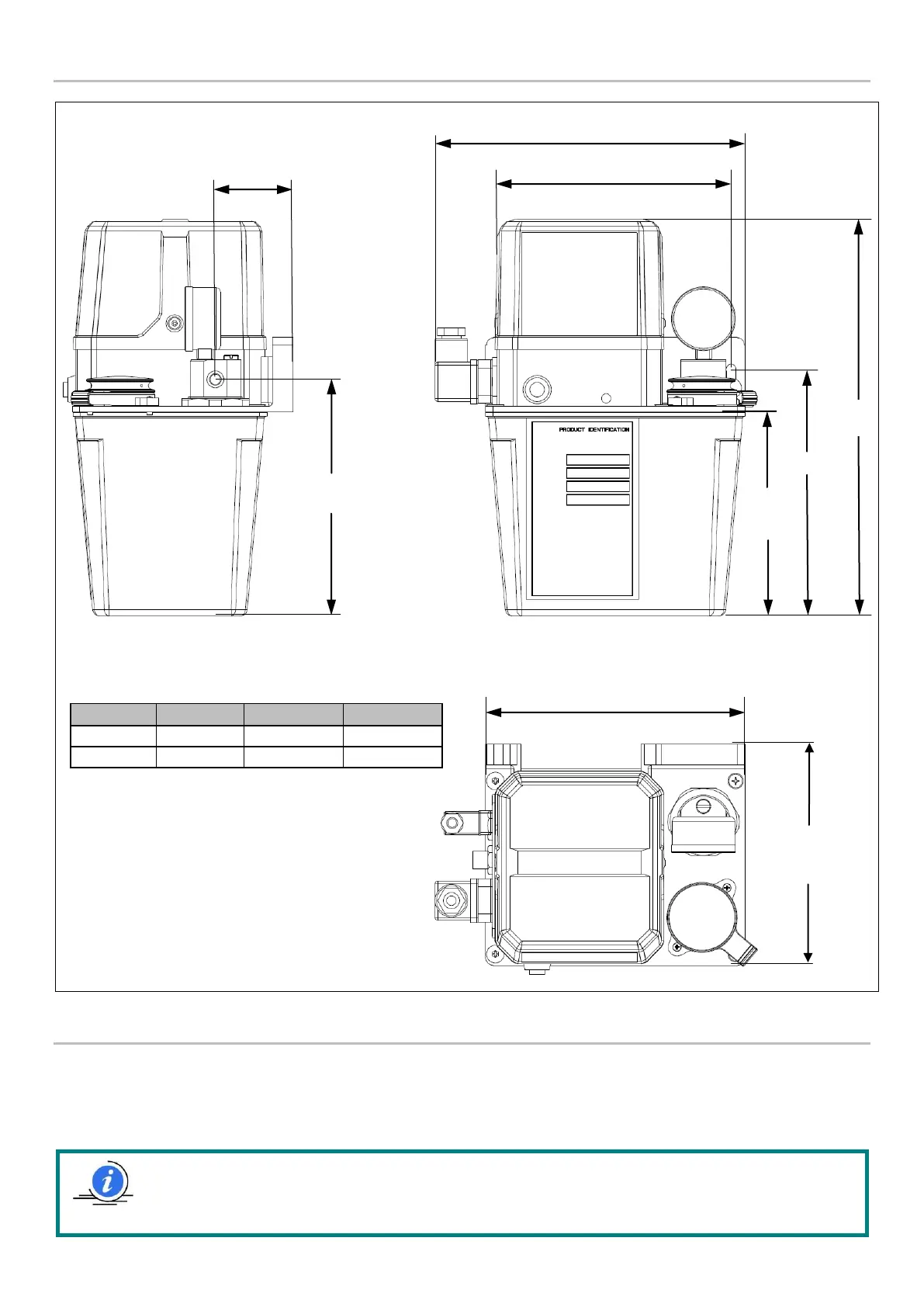

13. DIMENSIONS
14. HANDLING AND TRANSPORT
Before shipping, the SMART3 pumps are carefully packed inside cardboard boxes. When transporting and storing the
equipment, pay attention to the direction indicated on the boxes themselves.
Upon receipt, check that the package has not been damaged and store the equipment in a dry location.
Manual handling must be done by at least two people.
Lift the equipment according to the direction shown on the cardboard package.
The machine components can support storage temperatures between
-20 to + 65 °C; however, to prevent damage, the machine must only be started up after the machine has reached a
temperature of +5 °C.
C - Fixing
52
[2.04]
136.5
[5.37]
164.5
[6.47]
B
158.5
[6.24]
A - Fixing
174
[6.85]
PUMP
A
B
C
2L
155 [6.1]
266 [10.47]
208 [8.18]
3L
220 [8.6]
276 [10.86]
276 [10.86]
148
[5.82]
