Changing the elements

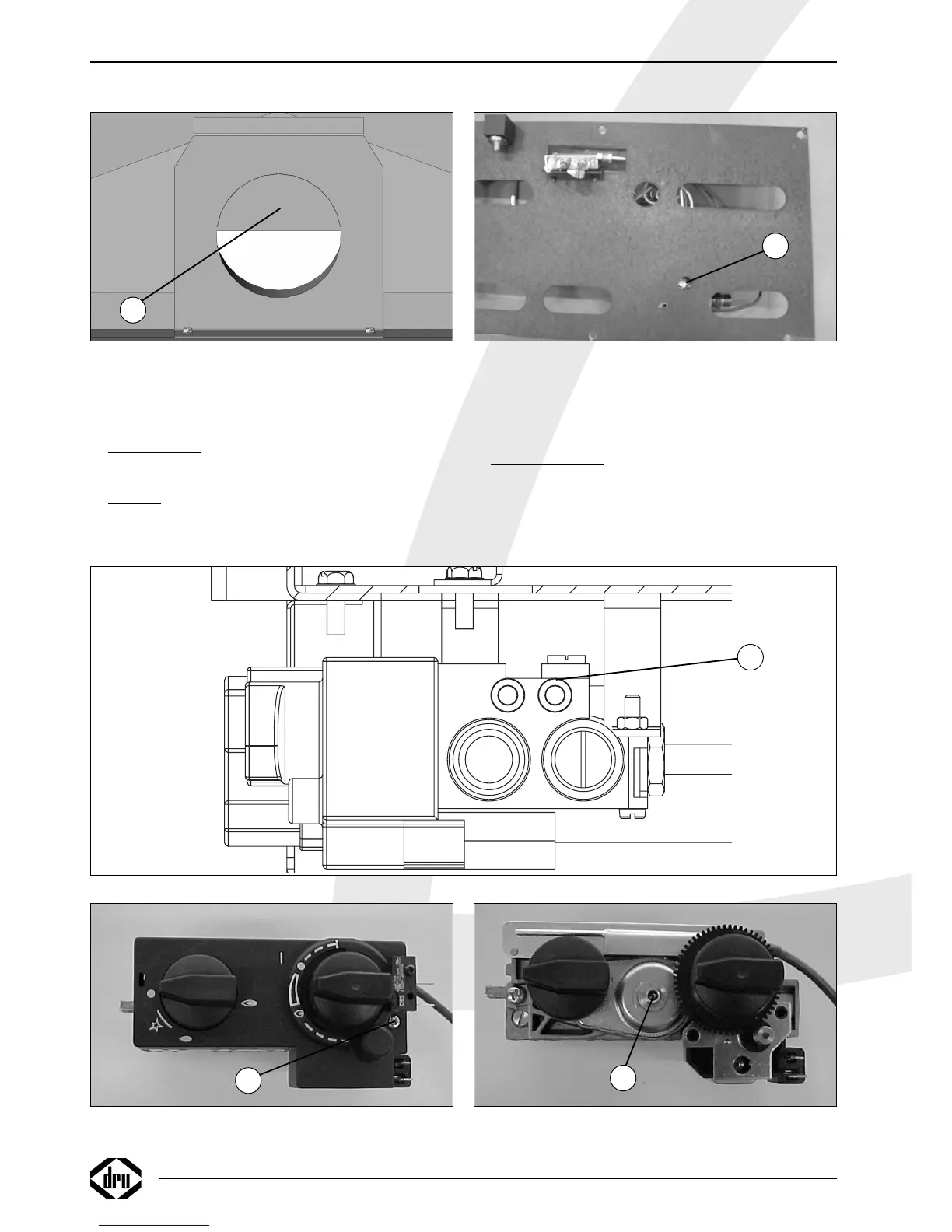

1. Outlet connector (fig. 18b and 18c)
Break and remove the semi-circle (23) of the connection
(4).
2. Main burner jet
(fig.18a)
Using an open-ended spanner remove the jet with (16)
and fit a new one.
3. Oxypilot (fig.18a)
Disconnect the pilot light hose by unscrewing the
coupling nut (17). Disconnect the ignition wire from the
electrode. Unscrew the thermocouple from the gas
control block.
Remove the oxypilot by undoing the 2 screws (18)
and fit the new oxypilot. Reconnect the pilot light hose,
the ignition wire and the thermocouple.
4. Fine adjustment jet
(fig.19)
Once the grub screw (19) has been unscrewed, the fine
adjustment jet can be twisted out of the gas control
block. Fit the new fine adjustment jet and then the grub
screw (19) in the gas control block.
CONVERSION INSTRUCTIONS
22
fig. 21
fig. 22
fig. 20
38c-1105
20
21
22
Fig. 19Fig. 18c
19
23
