Display Segments

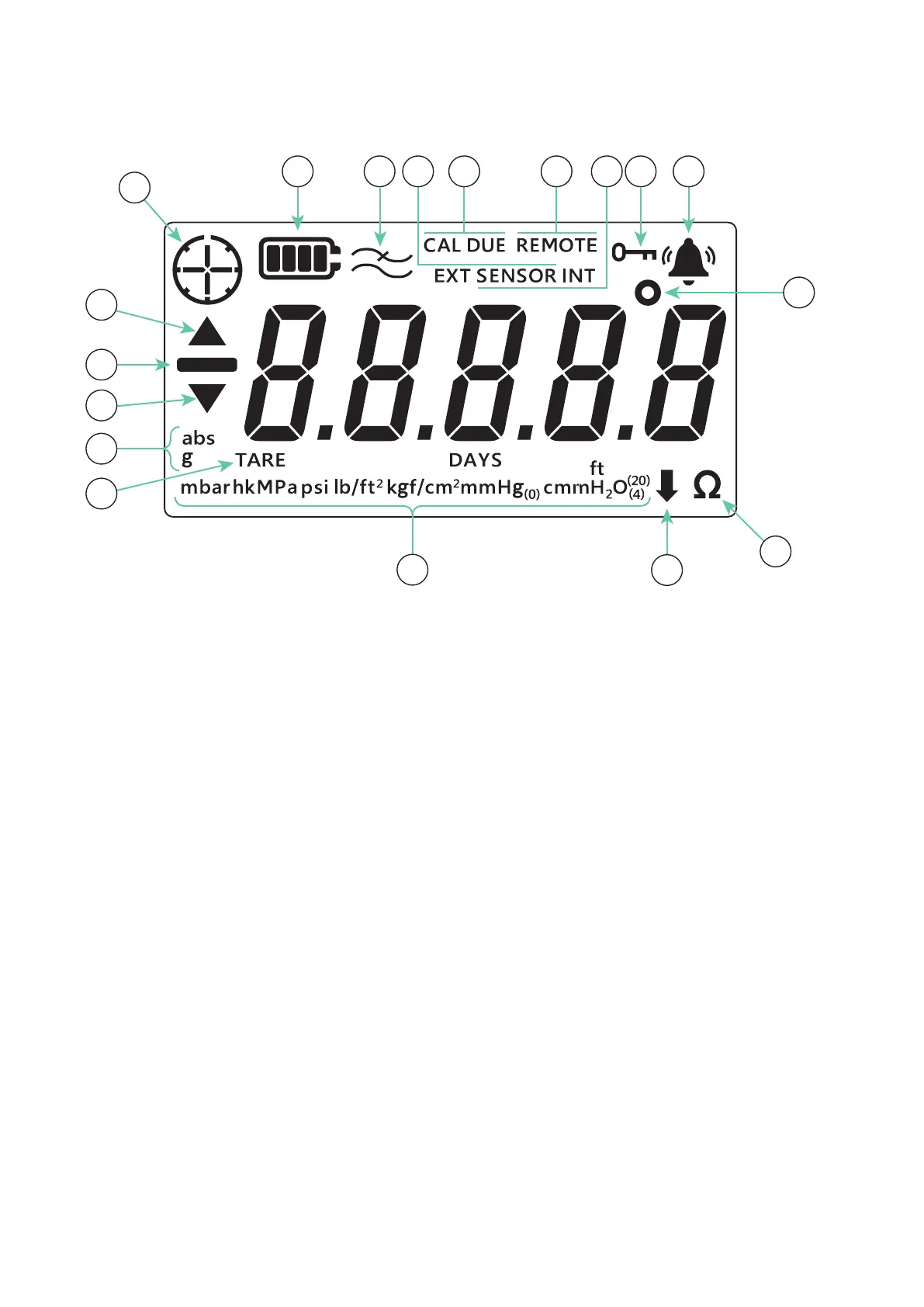

The DPI 705E display segment is explained below:
1. Leak Test Indicator 2. Battery Level Indicator
3. Filter On Indicator 4. External Sensor Functional Indicator
5. Calibration Due Indicator 6. Remote State Indicator
7. Internal Sensor Functional Indicator 8. Lock Indicator
9. Alarm State Indicator 10. Temperature Degree Indicator
11. Resistance (Ohms) Indicator 12. Custom Units Indicator
13. Pressure Units Indicator 14. Tare Indicator
15. Sensor Type Absolute/Gauge Indicator 16. Minimum Symbol Indicator
17. Negative Value Indicator 18. Maximum Symbol Indicator
1
18
17
16
15
14
13
12
11
2 3 4 567 8 9
10
