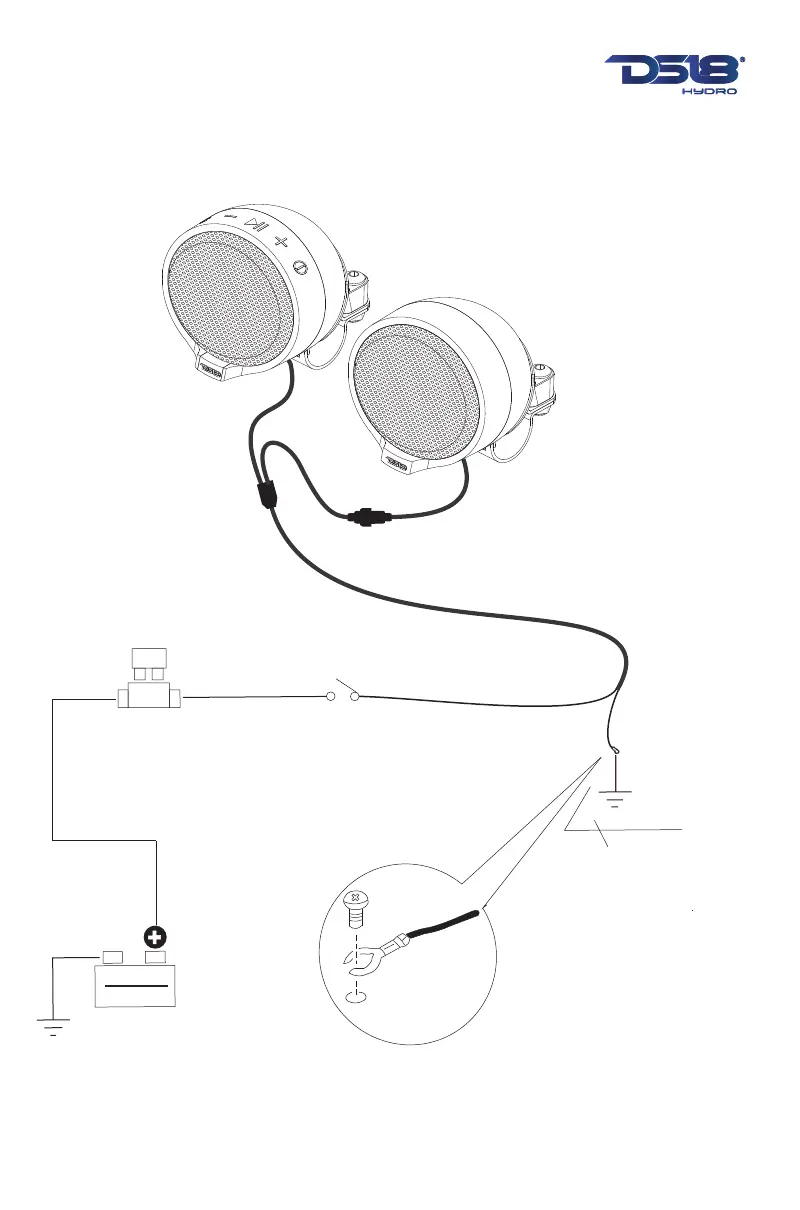

WIRE DIAGRAM
DIAGRAMA DE CABLEADO
4
RED / ROJO
BLACK / NEGRO
GROUND WIRE
CABLE A TIERRA
METAL FRAME
MARCO DE METAL
CHASSIS
GROUND
POINT /
CHASIS
A TIERRA
PUNTO
CHASSIS
GROUND
POINT /
CHASIS
A TIERRA
PUNTO
BATTERY
BATERÍA
5A
FUSE AND FUSE HOLDER
(NOT INCLUDED) /
FUSIBLE Y SOPORTE DE
FUSIBLES (NO INCLUIDO)
RECOMMENDED 12~14GA
WIRE (NOT INCLUDED)
NORMALLY OPEN SWITCH
(NOT INCLUDED) /
INTERRUPTOR NORMALMENTE
ABIERTO (NO INCLUIDO)
RECOMENDADO 12~14GA
ALAMBRE (NO INCLUIDO)
