10
Ext Posi Display current waveform

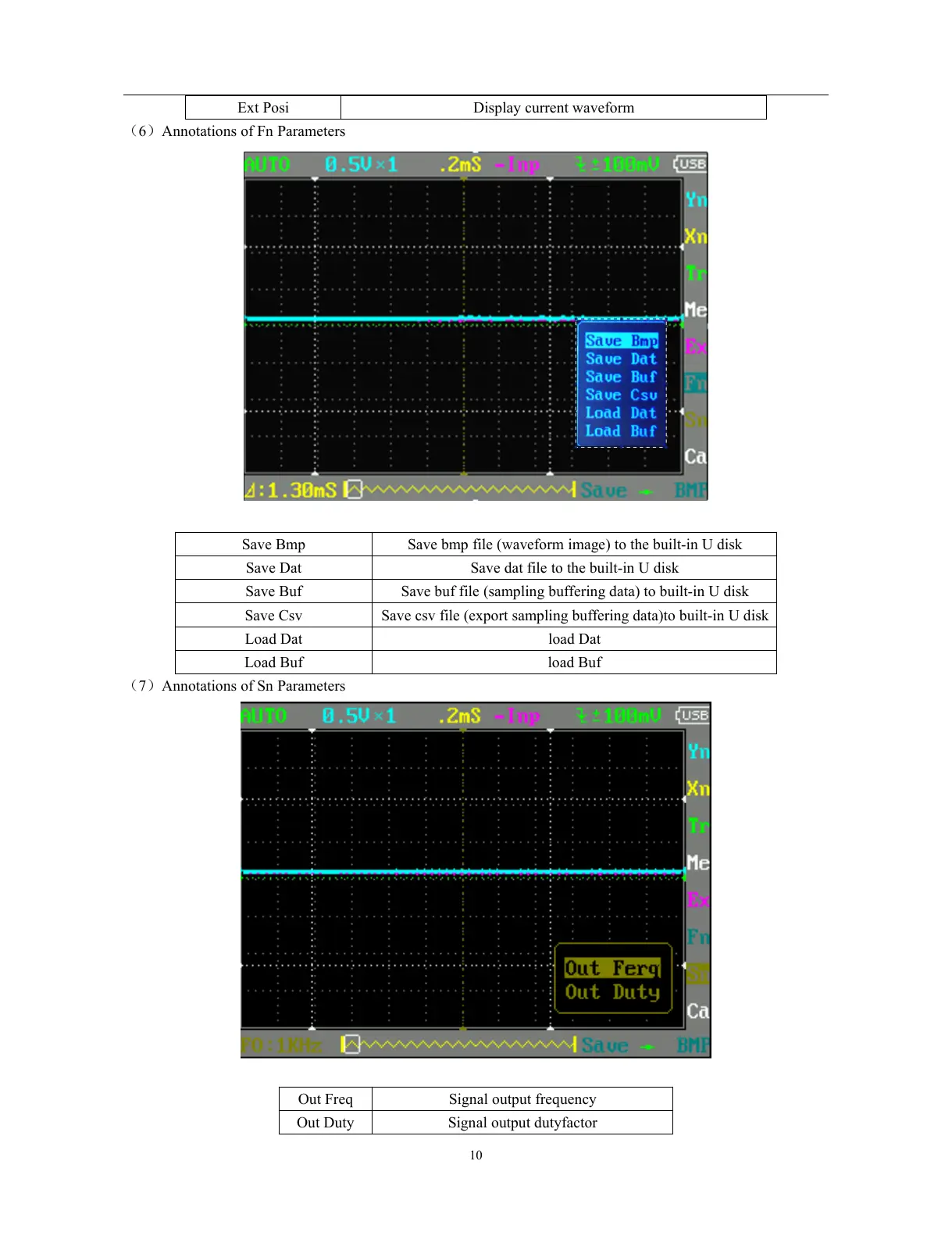

6 Annotations of Fn Parameters
Save Bmp Save bmp file (waveform image) to the built-in U disk
Save Dat Save dat file to the built-in U disk
Save Buf Save buf file (sampling buffering data) to built-in U disk
Save Csv Save csv file (export sampling buffering data)to built-in U disk
Load Dat load Dat
Load Buf load Buf
7 Annotations of Sn Parameters
Out Freq Signal output frequency
Out Duty Signal output dutyfactor
