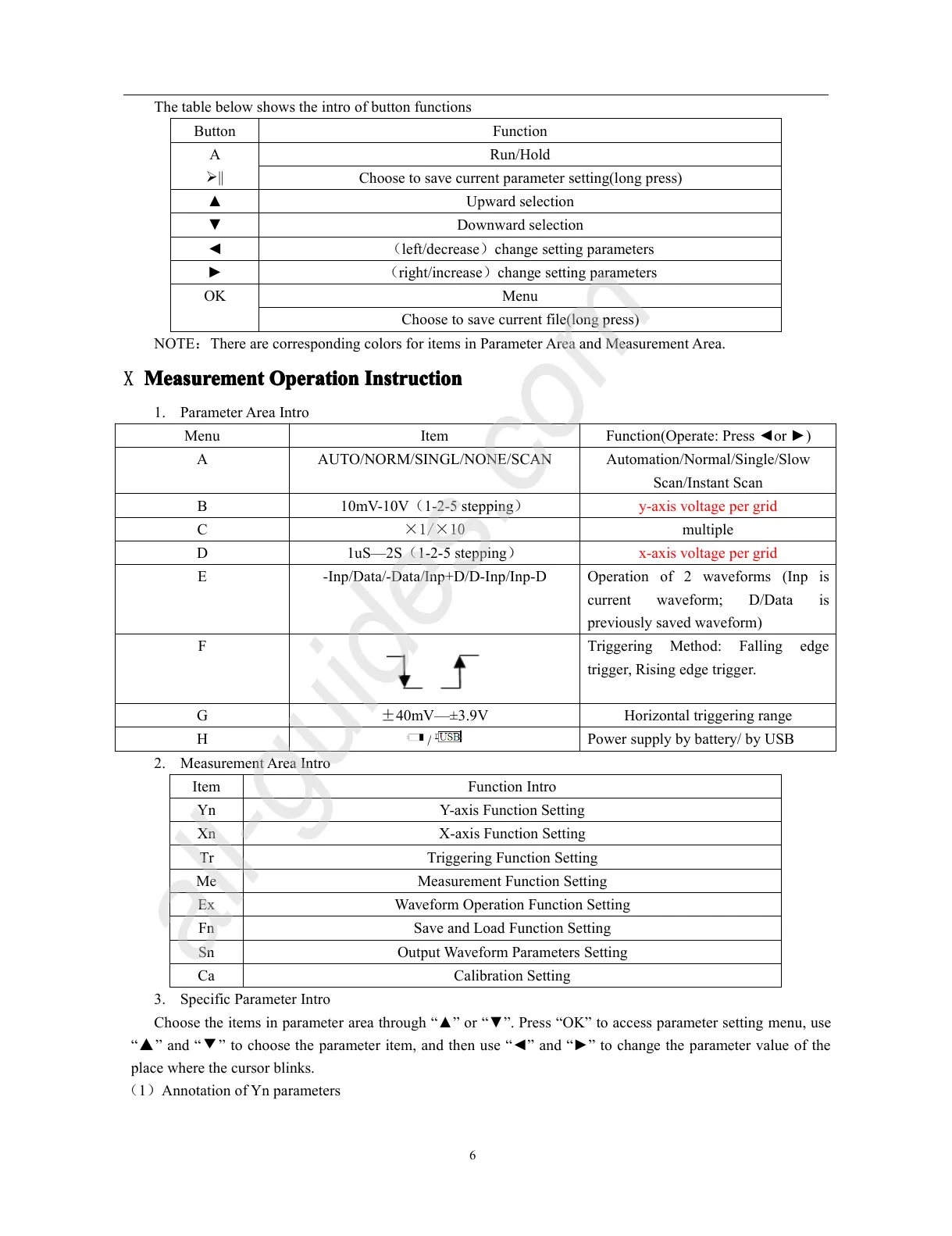

6
The table below show s the intro of button functions
Button Function
A
�
||
Run/Hold
Choose to save current parameter setting(long press)
▲ Upward selection
▼ Downward selection
◄ （ left/decrease ） change setting parameters
► （ right/increase ） change setting parameters
OK Menu
Choose to save current file(long press)
NOTE ： There are corresponding colors for items in Parameter A rea and Measurement A rea.
X Measurement
Measurement
Measurement
Measurement Operation
Operation
Operation
Operation Instruction
Instruction
Instruction
Instruction
1. Parameter Area Intro
Menu Item Function(Operate: Press ◄ or ► )
A AUTO/NORM/SINGL/NONE/SCAN Automation/ Normal /Single/Slow
Scan/Instant Scan
B 10mV-10V （ 1-2-5 stepping ） y-axis voltage per grid
C × 1/ × 10 multiple
D 1uS — 2S （ 1-2-5 stepping ） x-axis voltage per grid
E -Inp/Data/-Data/Inp+D/D-Inp/Inp-D Operation of 2 waveforms (Inp is
current waveform; D/Data is
previously saved waveform)
F Triggering Method: Falling edge
trigger, Rising edge trigger.
G ± 40mV —± 3.9V Horizontal triggering range
H
/
Power supply by battery/ by USB
2. Measurement Area Intro
Item Function Intro
Yn Y-axis Function Setting
Xn X-axis Function Setting
Tr Triggering Function Setting
Me Measurement Function Setting
Ex Waveform Operation Function Setting
Fn Save and Load Function Setting
Sn Output Waveform Parameters Setting
Ca Calibration Setting
3. Specific Parameter Intro
Choose the items in parameter area through “ ▲ ” or “ ▼ ” . Pres s “ OK ” to access parameter setting menu, use
“ ▲ ” and “ ▼ ” to choose the parameter item, and then use “ ◄ ” and “ ► ” to change the parameter value of the
place where the cursor blinks.
（ 1 ） Annotation of Yn parameters
