DSO Nano V3 - Trigger Parameter Annotations; Sync Mode and Trigger Mode; Auto Fit and Threshold; Sensitivity and Cursor Position

8
ViewPosi Horizontal movement to view waveform
SmplDpth Internal storage depth （ 1k ～ 6k ）
CursorT1 Time measurement cursorT1
CursorT2 Time measurement cursorT2
CursorTp Hide/Display Measurement Cursor

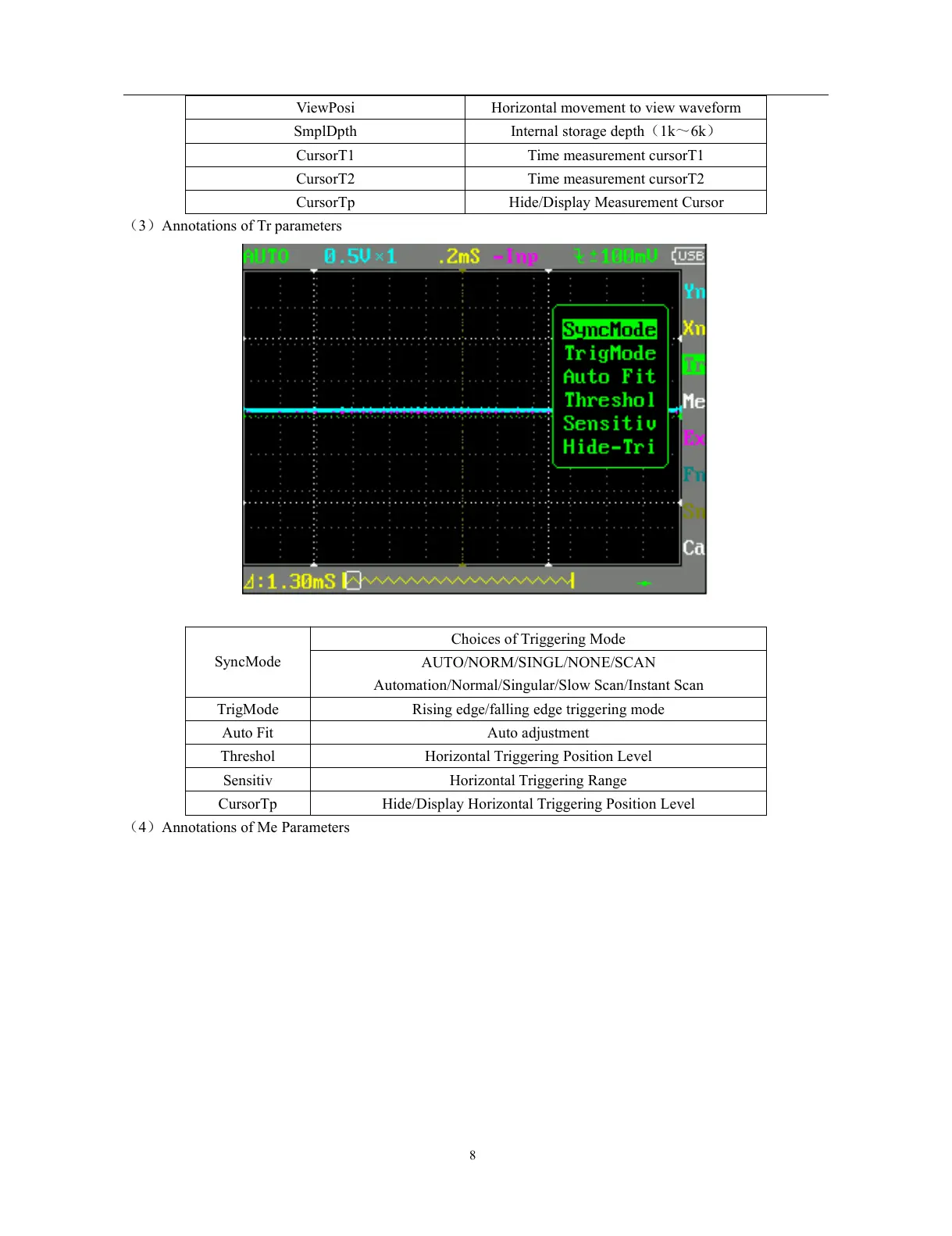

（ 3 ） Annotations of Tr parameters
SyncMode
Choice s of Triggering Mode
AUTO/NORM/SINGL/NONE/SCAN
Automation/Normal/Singular/Slow Scan/Instant Scan
TrigMode Rising edge/falling edge triggering mode
Auto Fit Auto adjustment
Threshol Horizontal Triggering Position Level
Sensitiv Horizontal Triggering Range
CursorTp Hide/Display Horizontal Triggering Position Level
（ 4 ） Annotations of Me Parameters
