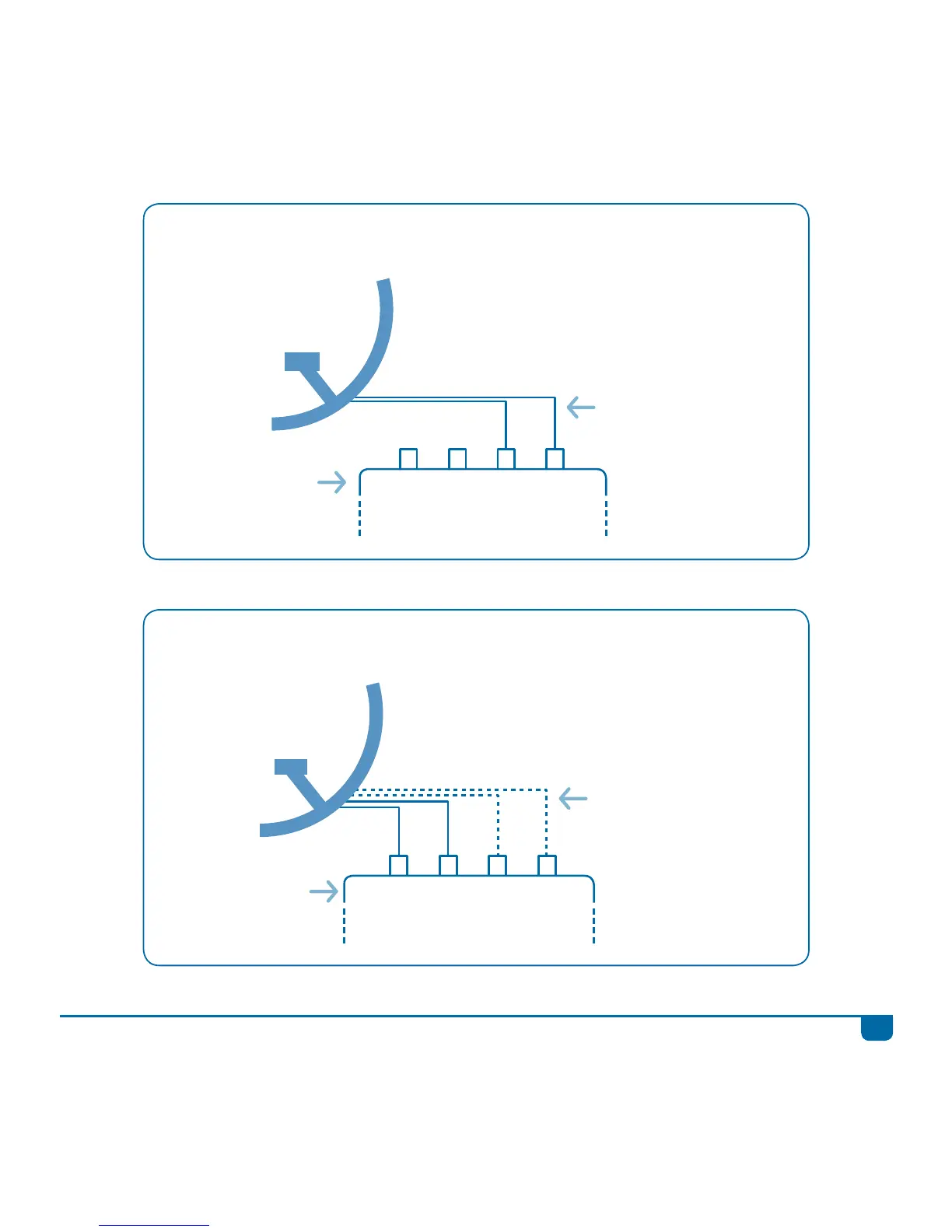

Quad LNB Connection (IS20)
Quad LNB
At least two of the quad LNB cables
have to be connected to the H/L and
V/L inputs. Any LNB cable can go to
the any of the latter inputs.
Optional to
connect the
second two quad
LNB cables.
H/L V/L H/H V/H
Twin LNB Connection (E36)
(All countries other than Angola and Mozambique)
Twin LNB
Any LNB cable can
connect to any of
these two inputs
H/L V/L H/H V/H
