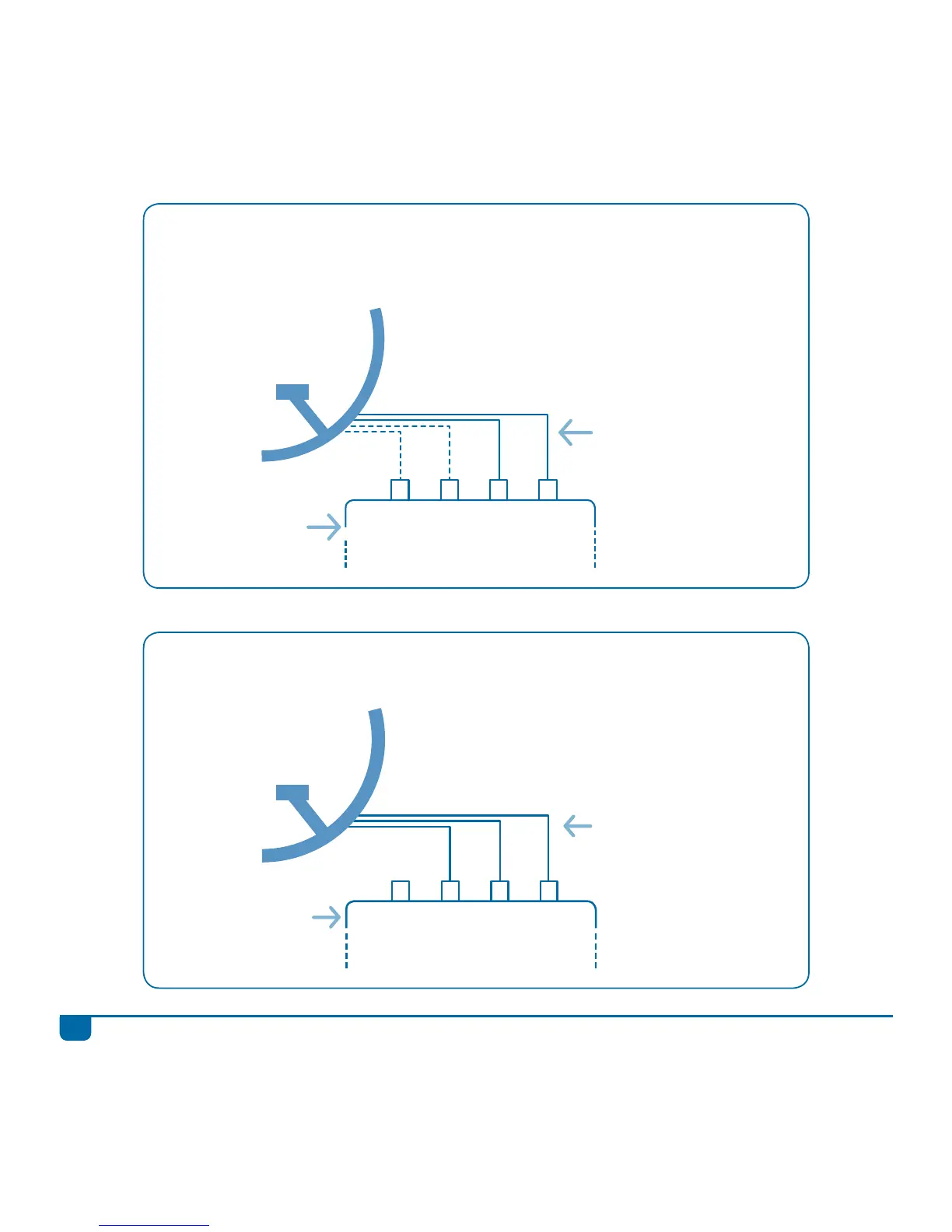

DStv 5-2 - Quad LNB Connection (E36); 3 Cable Quad LNB Connection (E36)

Quad LNB
At least two of the quad LNB cables
have to be connected to the H/L and
V/L inputs.
Any LNB cable can go to the any of the
latter inputs.
Optional to
connect the
second two
quad LNB
cables.
H/L V/L H/H V/H
DStv Switch (5-2)
Quad LNB Connection (E36)
(All countries other than Angola and Mozambique)
3 Cable Quad LNB Connection (E36)
(Angola and Mozambique only)
Quad LNB
Any LNB cable can
connect to any of
these 3 inputs
H/L V/L H/H V/H
DStv Switch (5-2)
DStv Switch - User Guide
6
