Ratchet EXP - Technical Manual 15

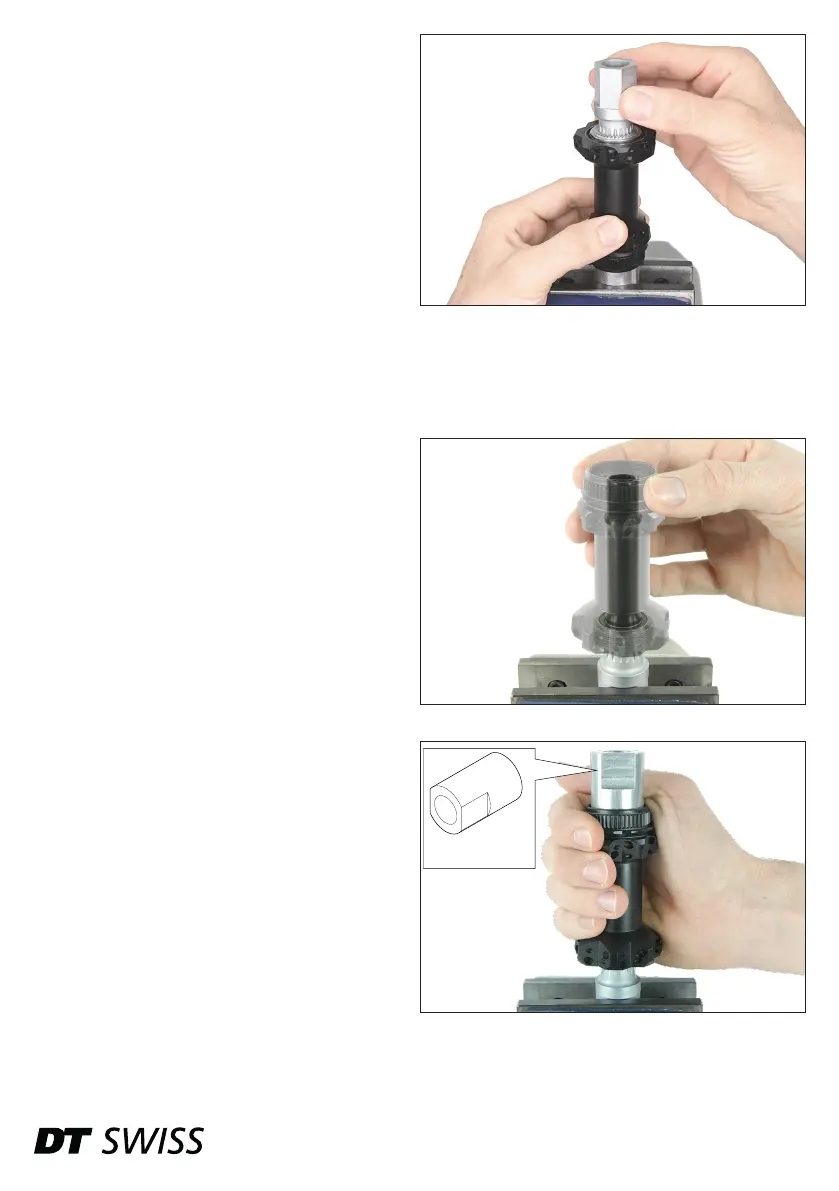

6. Push the mounting tool into the toothing of
the ratchet and screw the ratchet into the
hub shell by a few turns with light pressure.
→ Before the ratchet engages in the thread
of the hub shell, it must be pushed over
the sealing (if the sealing is installed)
with a little pressure.
→ While screwing in, make sure that the
ratchet is screwed in straight and does
not cant!
→ It must be possible to screw in the ratchet without effort until a high resistance is created.
Now the ball bearing is in contact with the hub shell and the ratchet must be brought into
the end position with greater force. Continue with next step.
7. Remove the mounting tool, remove the hub from the installation cylinder and unclamp the
installation cylinder from the vice.
8. Clamp the mounting / dismounting tool for
the threaded ratchet into the vice.
9. Slide the axle with its long end through the
ball bearing.
→ If the axle is inserted through the ratchet
with the short side rst, the tool is not
sufciently guided. The axle, the ratchet
or the tool can be damaged.
10. Put the hub / the wheel with the mounted ratchet onto the mounting tool.
11. Push the installation cylinder onto the non
drive side of the hub.
→ By using the axle and the installation
cylinder, the hub shell is guided when
the ratchet is screwed on. The ratchet
cannot cant.
12. Tighten the threaded ratchet as tight as
possible by turning the hub clockwise by
hand.
→ During tightening of the threaded
ratchet, some pressure should be
applied to the hub from above so that the
tool engages securely in the ratchet at
all times.
HXTXXX00N5314S /
HXTXXX00N5025S
