Ratchet EXP - Technical Manual 17

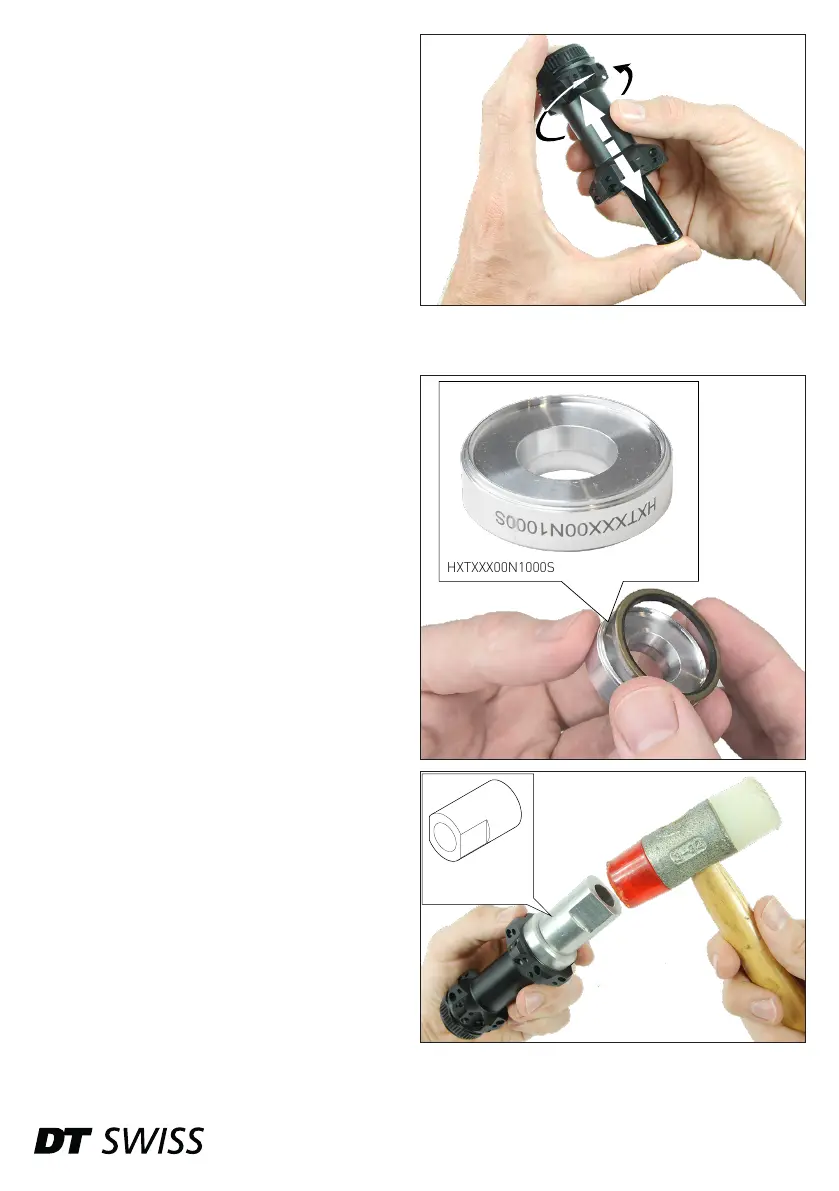

8. Check the ball bearings.
→ It must be possible to turn the hub with
slight resistance.
→ The hub must not have axial play.
9. Tap the ball bearing on the non drive side
in or out and repeat previous steps until the
hub is turning smoothly.
2.13 MOUNTING THE HUB SEAL
1. Put the sealing onto the mounting tool.
2. Make sure that the axle is in the hub with
the short side rst.
3. Put the mounting tool with the sealing onto
the axle.
4. Push on the installation cylinder and drive
in the sealing with slight hammer strokes.
HXTXXX00N5314S /
HXTXXX00N5025S
