RPT-5 Tester – User manual 3

1. Device parameters

Power supply: built-in Li-ion battery

Operating time approx. 8 hours when fully charged

Charging connector: 5V, 500mA

Operating conditions: temp. 0 – 40°C

Voltage measurement: 0..7V

External sensor power supply: 5V, max 50mA

Do not connect the tester outputs to any voltage sources other than the circuits of

the tested sensors.

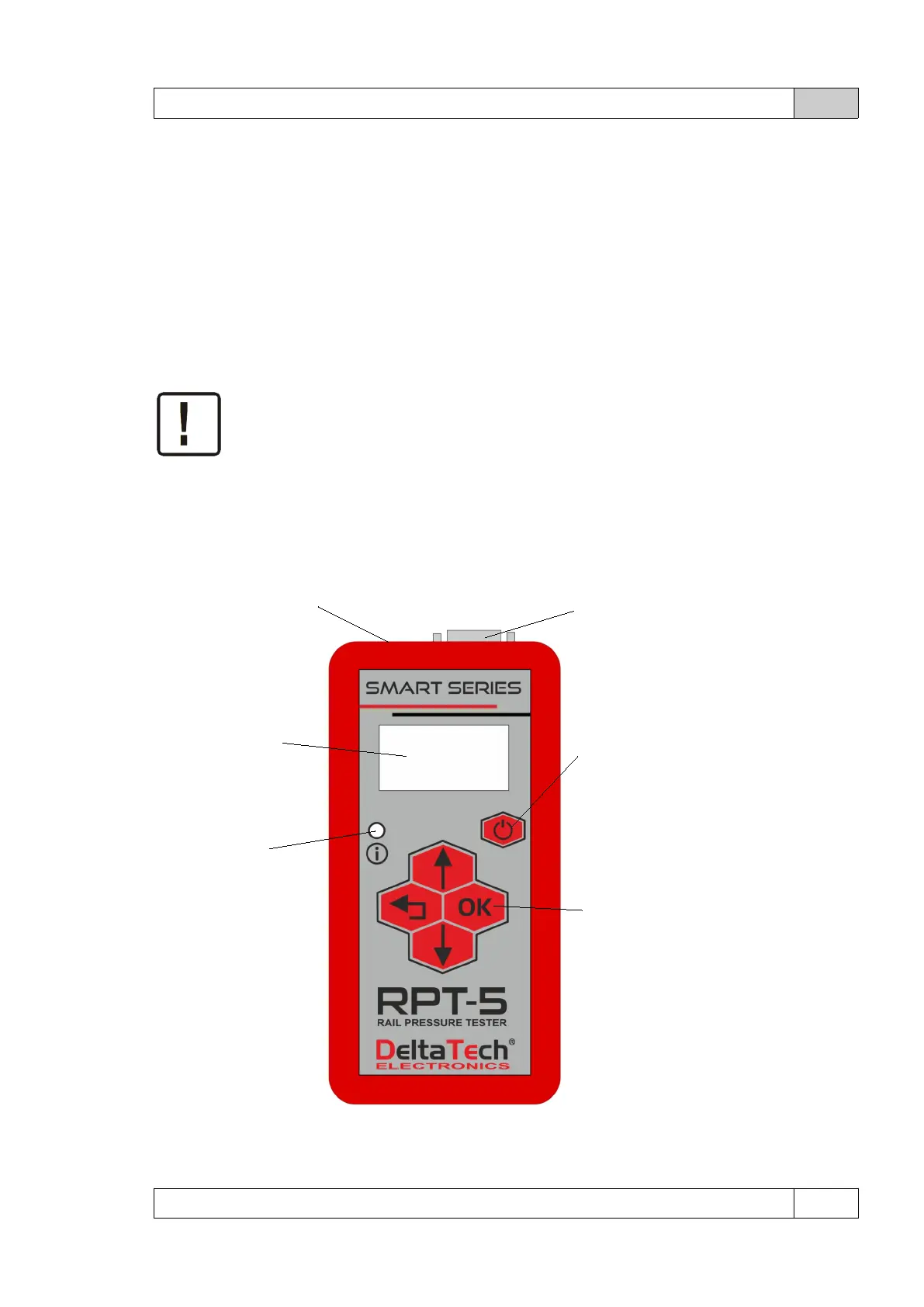

2. Appearance and connection

Control

buttons

Display

Indicator

Measuring cable

connector

Mini USB connector

Power

button

Control

buttons

Power

button
