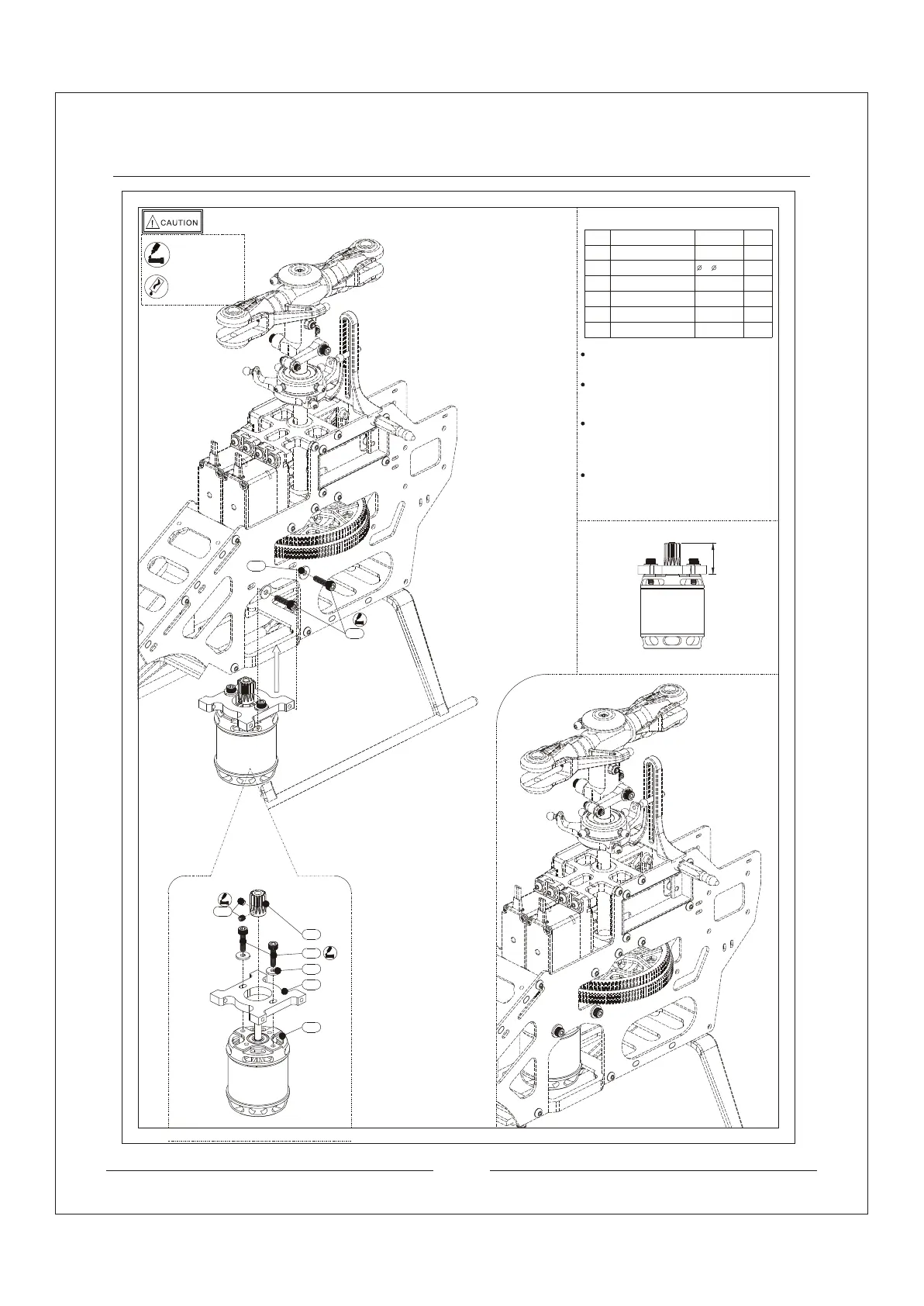

Power System Assemble Procedure
11
032
Use kimi screws to fix the pinion gear onto
the motor shaft and pasted with thread-locking
fiuld.
Use four M3*10 screws to install the motor
mount onto the motor. Past with thread-locking
fiuld and do not miss the spacers during the in
stallation.
Finally, use four M3*10 screws to install the
motor into the main frame. Make sure the
distance between the pinion gear and the
main gear is 0.1mm. The rotation of main gear
and pinion gear should be smooth.
The bottom right diagram shows the complete
installation.
19.2
003
059
002
058
057
032
003
6pcs
2pcs
002
6pcs
057
058
059
002
003
Complete Installation
Diagram
Kimi Screw
M3*3
M3*10
Spacer 3* 7*0.8
Pinion Gear
14
Brushless Motor
1320KV
Upper Bearing Block Set
1pcs
1pcs
1pcs
Apply amount
of T43 thread-
locking fiuld
Apply little am-
ount lubricants
No
Description
Qty
need
Specification
Pan Head Screw
