6

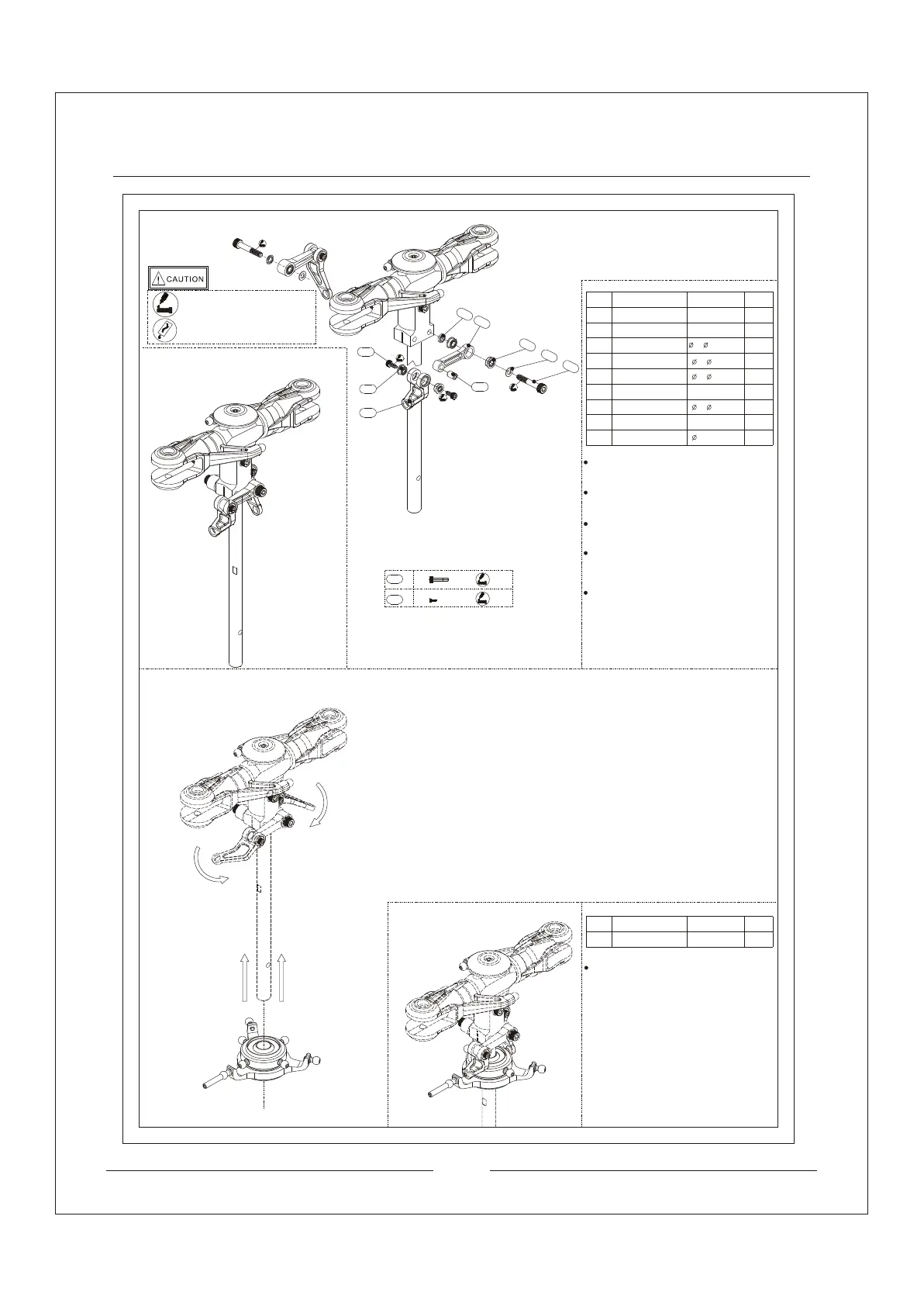

Install the trust bearing inside the washout
control arm and should not be missed. Make
sure the bearing rotate smoothly.
Install the washout control arm bearing
inside the washout control arm. The expos-
ure parts should be same size.
Install the flange bearing inside the washout
control arm. Make sure the bearing rotate
smoothly.
Washout control arm link and washout contr-
ol arm should be fastened. Paste necessary
amount of thread-locking fiuld during the in
stallation.
Make sure the washout control arms move
smoothly after the complete installation
Install the swashplate based on the left
diagram. Lock the washout control arm
link by the linkage ball of the swashplate.
3* 6*2.5
Washout Control Arm
3* 5.5*1.35
3* 5.5*0.55
2* 5*2.5
Flange Bearings
Washout Control
Arm Link
Step Washer
M2*5
Six Socket Head Screw
3.5*5*M2
Washout Spacer
011
025
2pcs
2pcs
4pcs
4pcs
4pcs
2pcs
2pcs
2pcs
011
021
023
022
024
025
4pcs
028
027
026
Pan Head Screw M3*18
Swashplate
029
1pcs
Complete setup diagram
Apply amount of T43
thread-locking fiuld
Apply little amount lubricants
No
Description
Qty
need
Specification
No
Description
Qty
need
Specification
Step Washer
Flange Bearings
025
026
027
028
024
011
023
021
022
