4

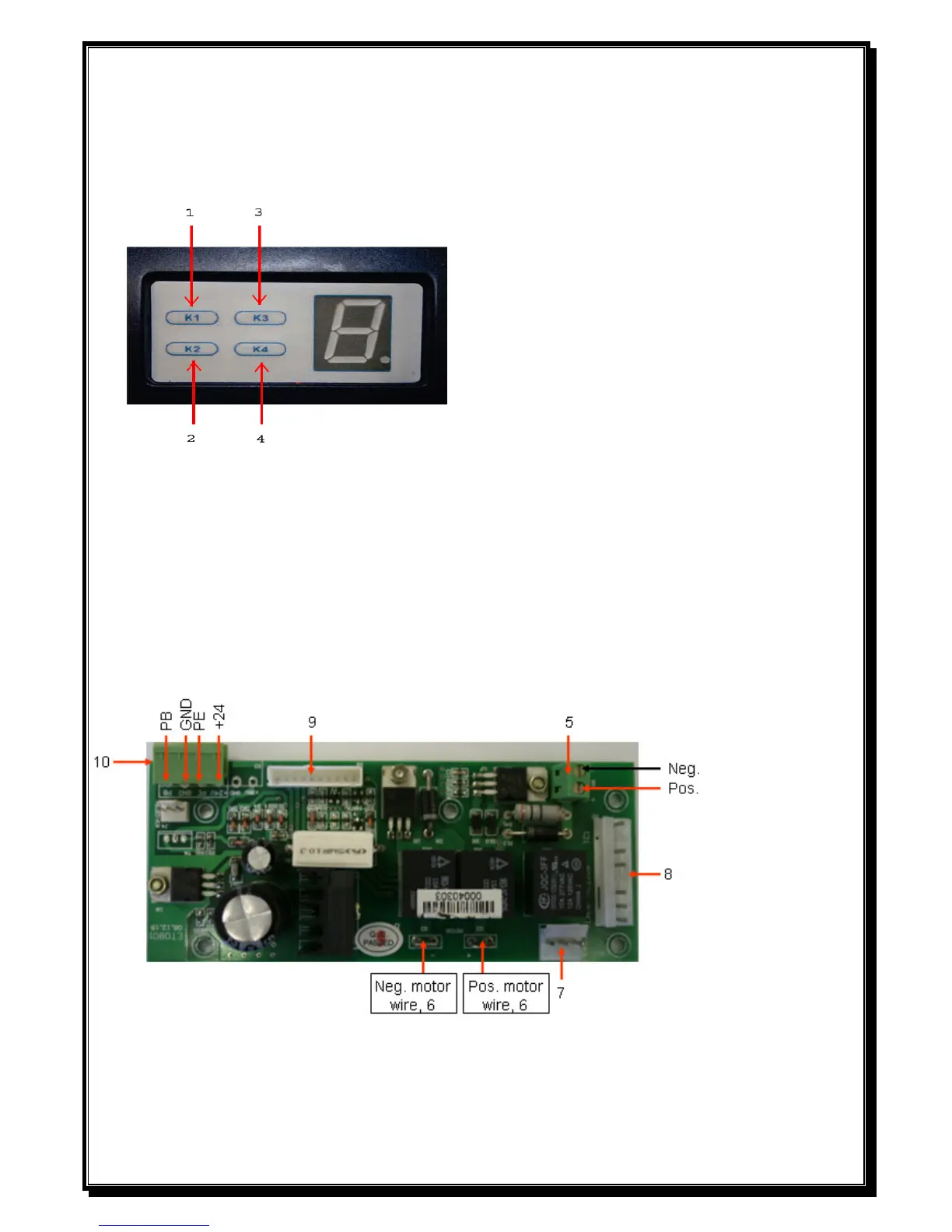

Operating Controls.
1 SET Button (K1) - Confirm set and Reversing sensitivity.
2 CODE Button (K2) - Transmitter code set.
3 UP Button (K3) - Limit mode set.
4 DOWN Button (K4) - Limit mode set
.
Circuit Board Connections.
5 Coupling for connecting the backup battery.
6 Coupling for connecting the motor.
7 Coupling for the power transformer.
8 Terminal for connecting of power input, run lamp and transformer.
9 Terminal connector to the control board.
10 Terminal connections for photo beam and push button.
PB = Push button, GND = Common & Neg., PE = Beams, +24 = 24VDC.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DTS 600 and is the answer not in the manual?

DTS 600 Specifications

General IconGeneral
Motor TypeDC
Chain TypeSteel
Remote Controls2
Safety SensorsIncluded
Warranty1 year
