Installation

1) Read the instructions carefully.

2) Make sure the door structure is solid and suitable to be motor driven.

3) Make sure that when the door is moving there are no friction points.

4) The door must be properly balanced and must be easily lowered and raised by hand.

5) Install a 220V, adequately protected 3 pin socket near where the DTS600/800 opener is going to be installed.

Please ignore middle bracket on the extrution

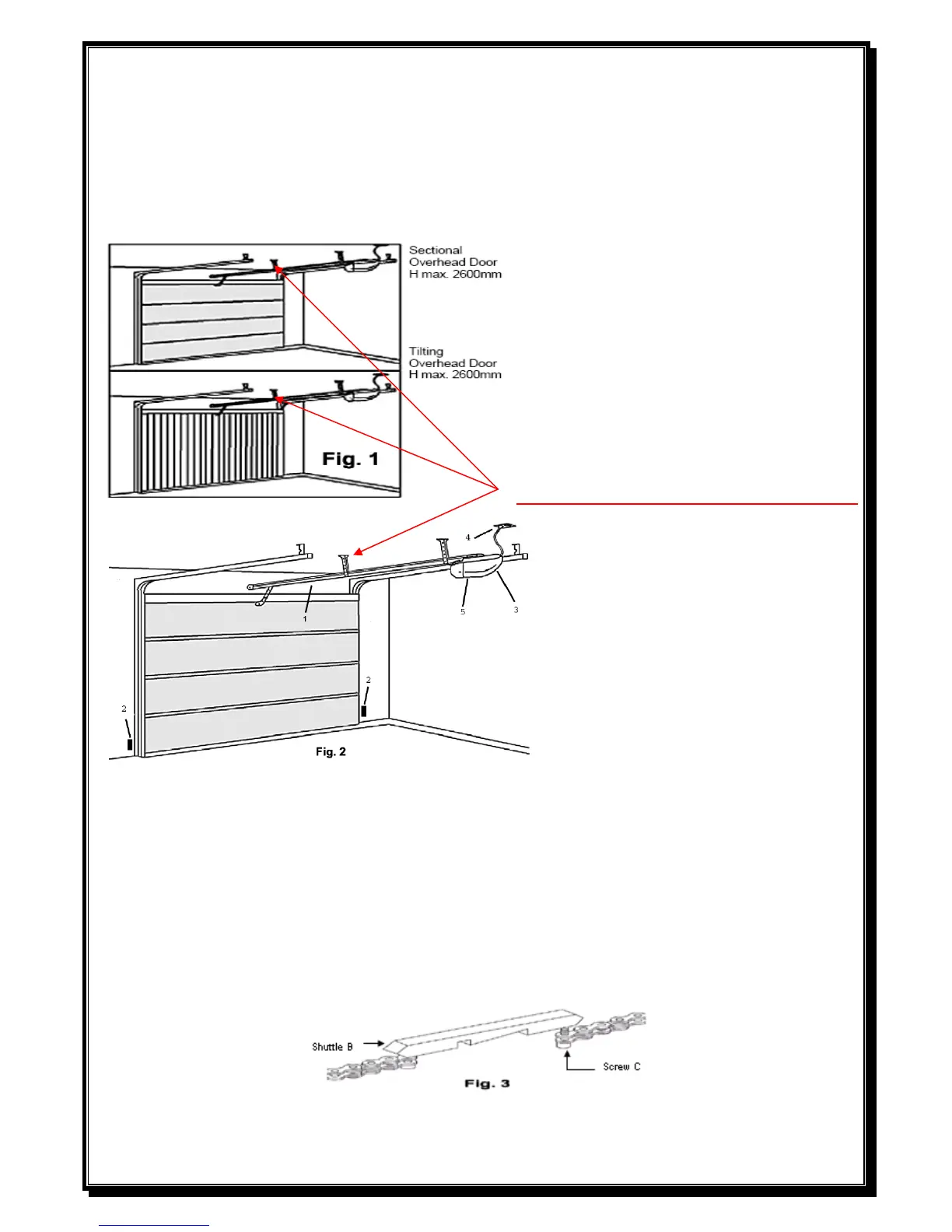

Refer to Fig. 2 for recommended installation.

1) DTS600/800 sectional door operator 2) Infra red beams (Optional). 3) Inside push button panel (Optiona

l).

4) Power point (Optional). 5) Power head.

CHAIN SHUTTLE ASSEMBLY.

For ease of installation the DTS600/800 is delivered with the chain and chain shuttle already assembled in the track. If you need

to assemble it yourself, connect the chain shuttle to the chain with screw C tightened firmly. Move shuttle B to half way along

the rail section, grease the chain and sprocket (Fig. 3) with a lithium type grease or equivalent. Do not use oil type lubricants.
