Lamp Alignment
Attention: we recommend to align the lamp in the optical system to avoid overheating
of the dichroic filters and other components inside the unit.
The lamp alignment is also essential to obtain the maximum luminous performance by
the projection.
1) Mount the fixture in an orientation so that it may be squarely projected onto a
smooth white surface no less than 20 meters away.
2) Using a console or the “LAMP ADJUST” menu system, focus and open (white)
beam onto the surface and observe the beam.

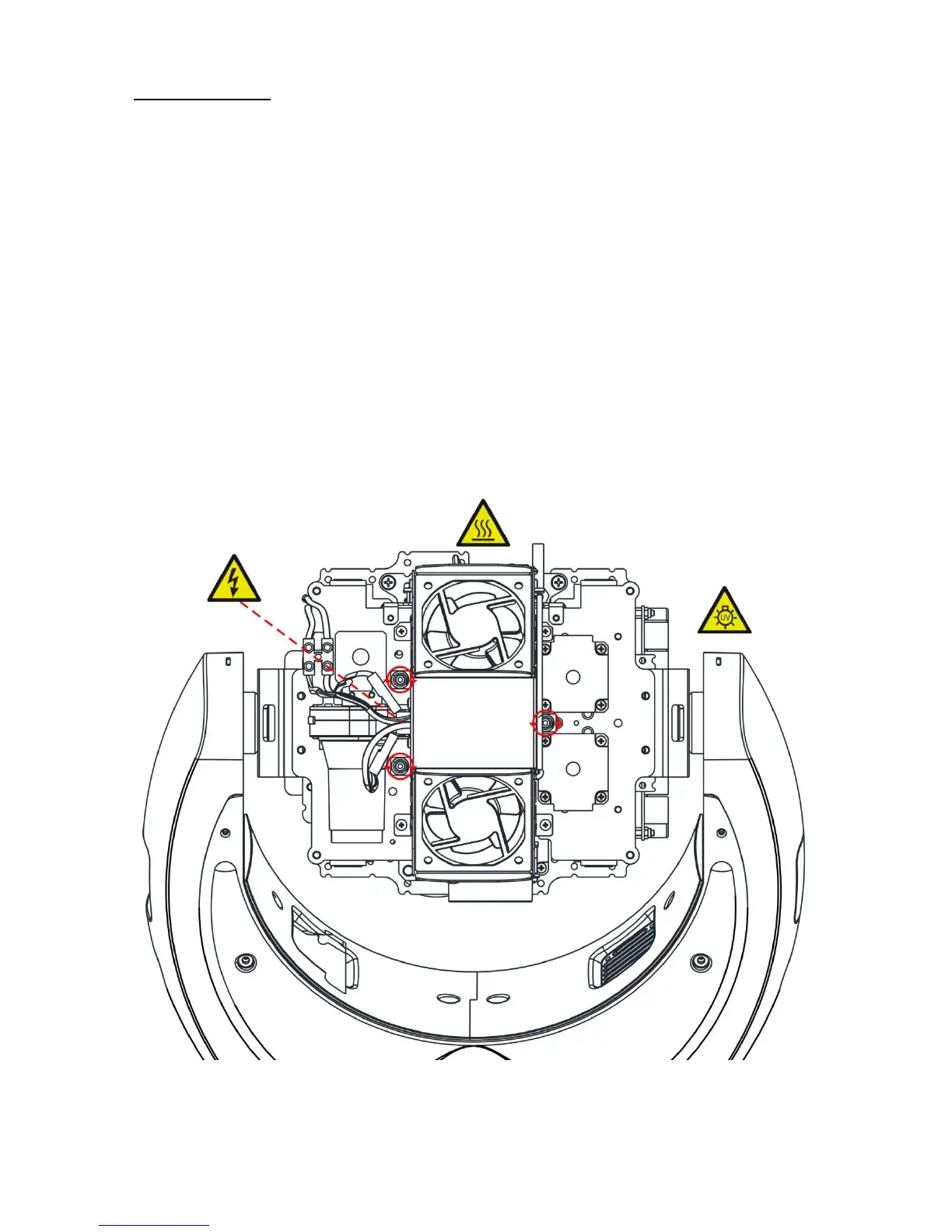

3) Using a phillips screwdriver, rotate the 3 indicated adjusters until you achieve a hot
spot in the center.
When the lamp alignment is correctly optimized, you will have a hot spot in the center.
